特性
| 版本 | 法兰 RJ45, IP67, 类别 5，IDC，PROFINET, 5 类 (ISO/IEC 11801) |
| 订货号 | 1963700000 |

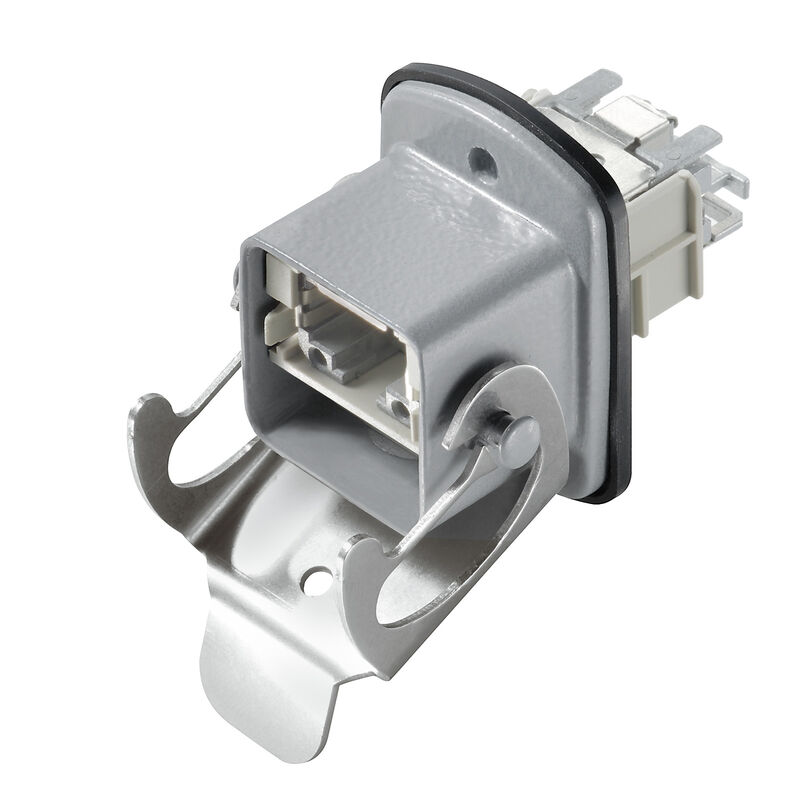

| 类型 | IE-BS-V05M-RJ45-FJ-P |
| GTIN (EAN) | 4032248646029 |
| 数量 | 10 PC |
| 净重 | 59.2 g |
| 工作温度 | -40 °C...70 °C |
| REACH SVHC |
Lead 7439-92-1
Potassium perfluorobutane sulfonate 29420-49-3 |
| SCIP | 3767b26f-703a-492e-9234-36e83d1c0725 |
| RoHS 合规状态 | 合规，有例外 |
| RoHS 豁免（如适用/已知） | 6bI |
| 端口1 | RJ45 |
| 端口 2 | IDC |
| 物品描述 | 类别 5，IDC，PROFINET |
| 布线 | PROFINET |
| 密封圈材料 | NBR |
| 外壳基本材料 | 铸铝 |
| 最大绝缘直径 | 1.6 mm |
| 目录册 | 5 类 (ISO/IEC 11801) |
| 插针镀层 | 镍，镀金 |
| 连接线经，硬导线 | 0.4...0.64 mm |
| 连接导线截面积，硬导线 (AWG) | AWG 24...AWG 22 |
| 连接直径，软导线 | 0.48...0.76 mm |
| 连接导线截面积，软导线 (AWG) | AWG 26...AWG 22 |
| 屏蔽 | 360度；全封闭外壳 |
| 防护等级 | IP67 |
| 插拔次数 | 750 |
| PoE / PoE+ | 符合 IEEE 802.3bt |
| 介电强度，触点-触点 | ≥ 1000 V AC/DC |
| 电源联接器耐压强度，触点-触点，最小 | ≥ 1500 V AC/DC |
| 证书号 (cULus) | E316369 |
| 连接器标准 |
IEC 61076-3-106 型号5
IEC 60603-7-51 |
| 认证/证书/一致性声明 |
[GOST Approval](https://mdcop.weidmueller.com/mediadelivery/asset/900_58423)
[ISO/IEC and TIA/EIA DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_58438) [ISO/IEC EN and TIA/EIA Screened Class E Category 6, 3 connector permanent link](https://mdcop.weidmueller.com/mediadelivery/asset/900_67334) [ISO/IEC EN and TIA/EIA Screened Class E Category 6, 4 connector channel](https://mdcop.weidmueller.com/mediadelivery/asset/900_67335) [ISO/IEC EN and TIA/EIA Screened Class EA Category 6A, 2 connector channel](https://mdcop.weidmueller.com/mediadelivery/asset/900_67336) [DUXR.E316369](https://mdcop.weidmueller.com/mediadelivery/asset/900_58418) [Compliance Statement Screened Category 6 ISO/IEC EN and TIA/EIA Connecting Hardware](https://mdcop.weidmueller.com/mediadelivery/asset/900_67342) [PROFINET Manufacturer's Declaration](https://mdcop.weidmueller.com/mediadelivery/asset/900_67339) |
| 工程数据 | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_102354) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1963700000) |
| 用户文档 |
[MAN IE GUIDE DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_40065)
[MAN IE GUIDE EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_40066) [Designation key / Type key](https://mdcop.weidmueller.com/mediadelivery/asset/900_90842) [Manual](https://mdcop.weidmueller.com/mediadelivery/asset/900_96751) |
| 产品目录 | [Catalogues in PDF-format](LINK/Catalog.html) |
| 样本 |
[MB FREECONCONTACT EN](http://download.weidmueller.com/asset/download/file/38173)
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) [FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) |
| ETIM 6.0 | EC001121 |
| ETIM 7.0 | EC001121 |
| ETIM 8.0 | EC001121 |
| ETIM 9.0 | EC001121 |
| ECLASS 9.0 | 27-44-03-90 |
| ECLASS 9.1 | 27-44-03-90 |
| ECLASS 10.0 | 27-44-03-90 |
| ECLASS 11.0 | 27-44-03-90 |
| ECLASS 12.0 | 27-44-03-90 |
| ECLASS 13.0 | 27-44-03-90 |
| ECLASS 14.0 | 27-44-03-90 |
| 认证 |  |
| ROHS | 一致 |
| UL File Number Search | [UL 网站](LINK/UL_search.html) |
| 证书号 (cULus) | E316369 |
