General ordering data

Version

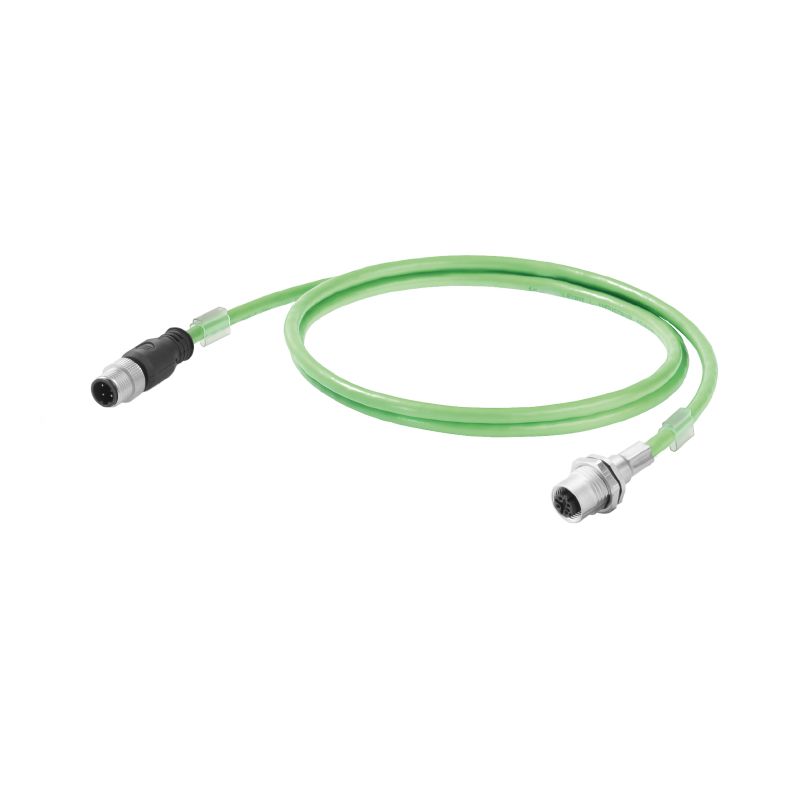

System cable, M12 D-code – flange, M12 D-code – pin straight, Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B), PUR, 1 m
Order No.
1244130010
Type
IE-C5DS4UG0010MBSMCS-E
GTIN (EAN)
4050118045185
Qty.
1 szt.

Dimensions and weights

Length
1 m
길이 (인치)
39.37 inch
Net weight
92 g

Temperatures

Storage temperature
-50 °C...70 °C
Operating temperature
-40 °C...70 °C
Installation temperature
-20 °C...60 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
67cf1078-beca-4687-860b-dc475a6ec24a

Cable structure

Apantallamiento
360° shield contact
Color de revestimiento
green (RAL 6018)
Cross-section
4*AWG 22/7 - 0.32 mm²
Diametro guaina, max.
6.7 mm
Insulation cross-section
1.5 mm
재질 외피
PUR

Electrical properties of cable

Category
Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B)

Mechanical and material properties of cable

Halogen
halogen-free, according to IEC 60754-2
Min. bending radius, once only
5 x cable diameter
Min. bending radius, repetitive
15 x cable diameter
Resistance to spread of flame
Yes

Plug, left

Plug left
M12, D-coded, IP67, female contact, straight, flange, Plastic, shielded

Plug, right

Plug right
M12, D-coded, IP67, male contact, straight, plug, Plastic, shielded

Clasificaciones

ETIM 8.0
EC002599
ETIM 9.0
EC002599
ETIM 10.0
EC002599
ECLASS 14.0
27-06-03-08
ECLASS 15.0
27-06-03-07
