特性

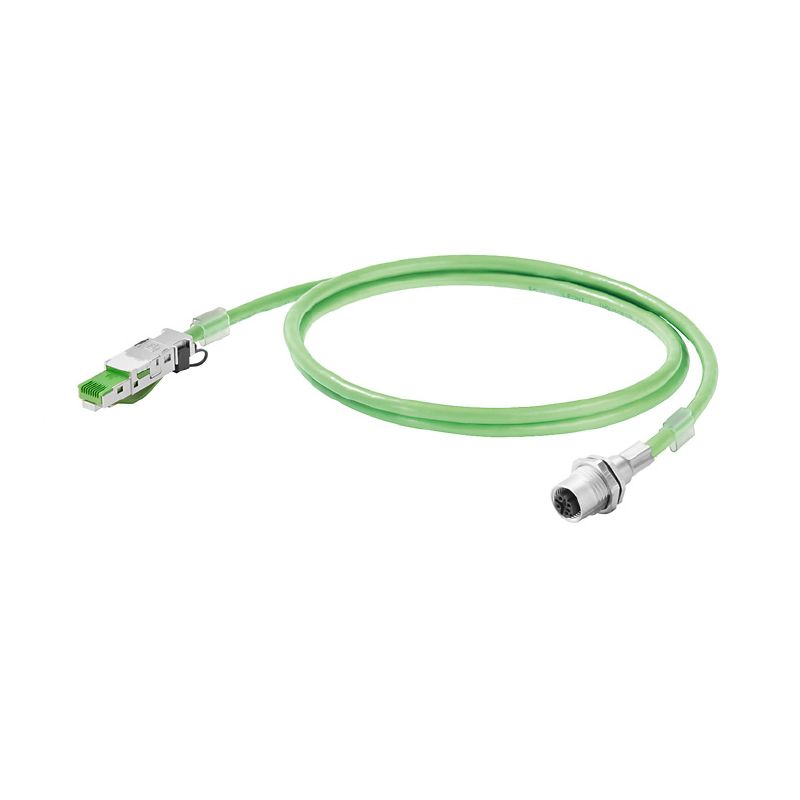

版本 | 系统电缆, M12 D 编码 – 法兰, RJ45 IP 20, Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B), PUR, 1.5 m |
订货号 | 1234750015 |
类型 | IE-C5DS4UG0015MBSA70-E |
GTIN (EAN) | 4050118024036 |
数量 | 1 PC |
长度 | 1.5 m |
长度 (英寸) | 59.055 inch |
净重 | 104.72 g |
存储温度 | -50 °C...70 °C |
工作温度 | -40 °C...70 °C |
安装温度 | -20 °C...60 °C |
RoHS 合规状态 | 合规,有例外 |
RoHS 豁免(如适用/已知) | 6c |
REACH SVHC | Lead 7439-92-1 |
SCIP | 67cf1078-beca-4687-860b-dc475a6ec24a |
屏蔽 | 360度;屏蔽触点 |
截面积 | 4*AWG 22/7 - 0.32 mm² |
护套材料 | PUR |
护套颜色 | 绿(RAL 6018) |
最大护套直径 | 6.7 mm |
绝缘横截面 | 1.5 mm |
目录册 | Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B) |
卤素 | 无卤, 符合IEC 60754-2标准 |
最小弯曲半径,单次 | 5 *直径 |
最小弯曲半径,多次 | 15 x 电缆直径 |
阻燃性 | 是 |
插头,左 | M12, D-编码, IP67, 孔式端头, 笔直, 法兰, 塑料, 带屏蔽 |
插头,右 | RJ45, IP20, male contact, straight, plug, Plastic, shielded |
认证/证书/一致性声明 | [PROFINET Manufacturer's Declaration](https://mdcop.weidmueller.com/mediadelivery/asset/900_67339) |
工程数据 | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_204278) |
CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1234750015) |
产品更改通知 |
[PCN-PB47-20230322-A-EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_296362)
[PCN-PB47-20230322-A-DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_296363) |
用户文档 |
[MAN IE GUIDE DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_40065)
[MAN IE GUIDE EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_40066) |
产品目录 | [Catalogues in PDF-format](LINK/Catalog.html) |
样本 |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) |
ETIM 6.0 | EC002599 |
ETIM 7.0 | EC002599 |
ETIM 8.0 | EC002599 |
ETIM 9.0 | EC002599 |
ECLASS 9.0 | 27-06-03-08 |
ECLASS 9.1 | 27-06-03-08 |
ECLASS 10.0 | 27-06-03-08 |
ECLASS 11.0 | 27-06-03-08 |
ECLASS 12.0 | 27-06-03-08 |
ECLASS 13.0 | 27-06-03-08 |
ECLASS 14.0 | 27-06-03-08 |
ROHS | 一致 |
