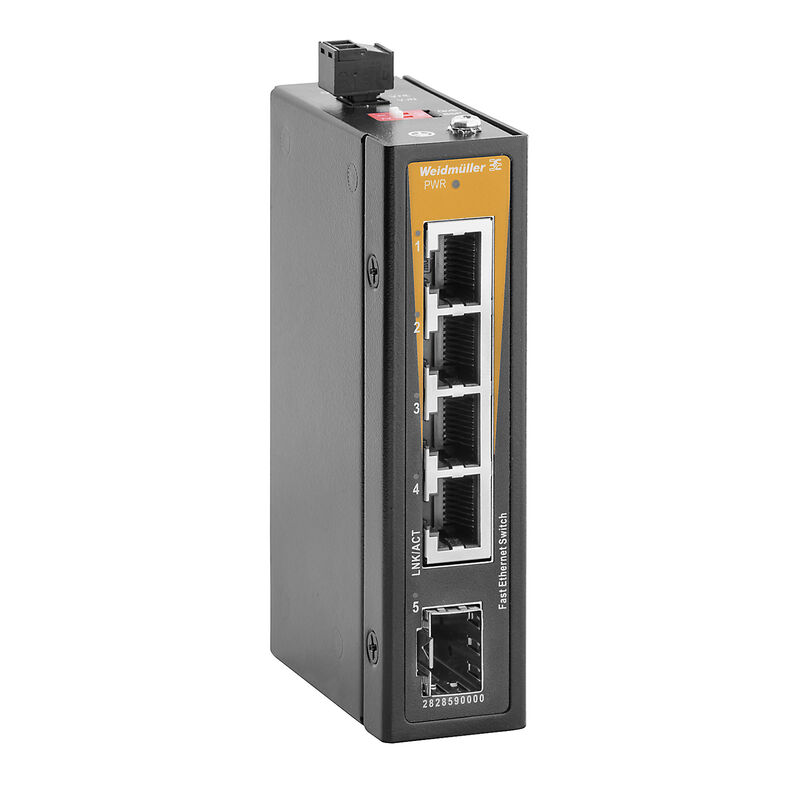

IE-SW-ELB-05-4TX-1FESFP

IE-SW-ELB-05-4TX-1FESFP

Tämä tuote ei ole pian enää saatavana.

Last order date: /Date(1793314800000)/

Alternative product: 2908140000

Network switch, unmanaged, Fast Ethernet, Number of ports: 4x RJ45, 1x 100BaseSFP slot, IP40, -10 °C...60 °C

Tuotteen tunnus 2828590000
Avaa konfiguraattorissa
Lataa tietosivu Tekninen tuki Tuotelataukset
Lisävarusteet 4 Samankaltaiset tuotteet 7
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance EMC conformity and approvals Environmental conditions Guarantee Interfaces Management features MTBF Power supply Switch characteristics Technical data Technology Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/77c071f4-46bd-4b7f-8f24-3c61d44584d2/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E141197

General ordering data

Version
Network switch, unmanaged, Fast Ethernet, Number of ports: 4x RJ45, 1x 100BaseSFP slot, IP40, -10 °C...60 °C
Order No.
2828590000
Type
IE-SW-ELB-05-4TX-1FESFP
GTIN (EAN)
4064675369950
Qty.
1 items
Delivery status
This article will no longer be available in the future.
Last order date
/Date(1793314800000)/
Alternative product
[2908140000](~/p/2908140000)

Dimensions and weights

Depth
64 mm
Depth (inches)
2,52 inch
Height
103 mm
Height (inches)
4,055 inch
Width
26 mm
Width (inches)
1,024 inch
Net weight
130 g

Temperatures

Storage temperature
-40 °C...85 °C
Operating temperature
-10 °C...60 °C
Humidity
5 to 95 % (non-condensing)

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c, 7a, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
95f06c58-199a-4ab7-817c-c2503ba62133

EMC conformity and approvals

EMC standards
EN 55032
EN 55024
CISPR 32
FCC Part 15 Subpart B Class A
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz bis 1 Ghz: 3 V/m
IEC 61000-4-4 EFT: Power: 0.5 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 0,5 kV; Signal: 1 kV
IEC 61000-4-6 CS: 3 Vrms
IEC 61000-4-8
Free fall
According to IEC 60068-2-31
Safety standard
UL 61010-1
UL 61010-2-201
Shock
according to IEC 60068-2-27
Vibration
according to IEC 60068-2-6

Environmental conditions

Humidity
5 to 95 % (non-condensing)
Operating altitude
  • Altitude, max.:
    2 000 m
  • Note:
    in acc. with UL
Operating temperature, max.
60 °C
Operating temperature, min.
−10 °C
Storage temperature, max.
85 °C
Storage temperature, min.
−40 °C

Guarantee

Time interval
5 years

Interfaces

Fibre-optic ports
100BaseSFP-Slot
Function DIP switch
1x for enabling QoS (according to IEEE 802.1p)
1x for enabling/disabling the broadcast storm protection
LED indicator
Power LED: PWR
Port LED: LNK/ACT, 10/100M (RJ45 port)
100M (SFP-Port)
Number of ports
4x RJ45
1x 100BaseSFP slot
RJ45 ports
10/100BaseT(X)
auto negotiation
Full-/half-duplex mode
Auto MDI/MDI-X port

Management features

Network traffic filter
Quality of Service (QoS)
Class of Service (CoS)
Industrial protocol support
PROFINET device acc. to conformance class A

MTBF

MTBF
  • According to Standard:
    Telcordia SR-332
  • Operating time (hours), min.:
    463 236 h

Power supply

Current consumption
  • Voltage:
    24 V
  • Current:
    0,17 A
Matningsspänningsområde:
  • Voltage type:
    DC
  • Voltage, min.:
    9,6 V
  • Voltage, max.:
    60 V
  • Voltage type:
    AC
  • Voltage, min.:
    18 V
  • Voltage, max.:
    36 V
Supply voltage
12/24/48 V DC
24 V AC
1 single input
Zabezpieczenie przed prądem przeciążeniowym
Yes
Соединение
1 removable 2-pin terminal block
역극성 보호
Yes

Switch characteristics

Bandwidth backplane
1 Gbit/s
MAC table size
1 K
Packet buffer size
448 kBit
Priority queues
2

Technical data

Felszerelés típusa
DIN rail
Grado di protezione
IP40
Material capotas
Metal
Switch
unmanaged
속도
Fast Ethernet

Technology

Data switching
Store and Forward
Flow control
IEEE 802.3x flow control
Standardně
IEEE 802.3 for 10BASE-T
IEEE 802.3u for 100BASE-TX and 100BASE-FX
IEEE 802.3x for flow control
IEEE 802.1p for Class of Service / Quality of Service (CoS/QoS)

Classifications

ETIM 8.0
EC000734
ETIM 9.0
EC000734
ETIM 10.0
EC000734
ECLASS 14.0
19-17-04-02
ECLASS 15.0
19-17-04-02
