特性

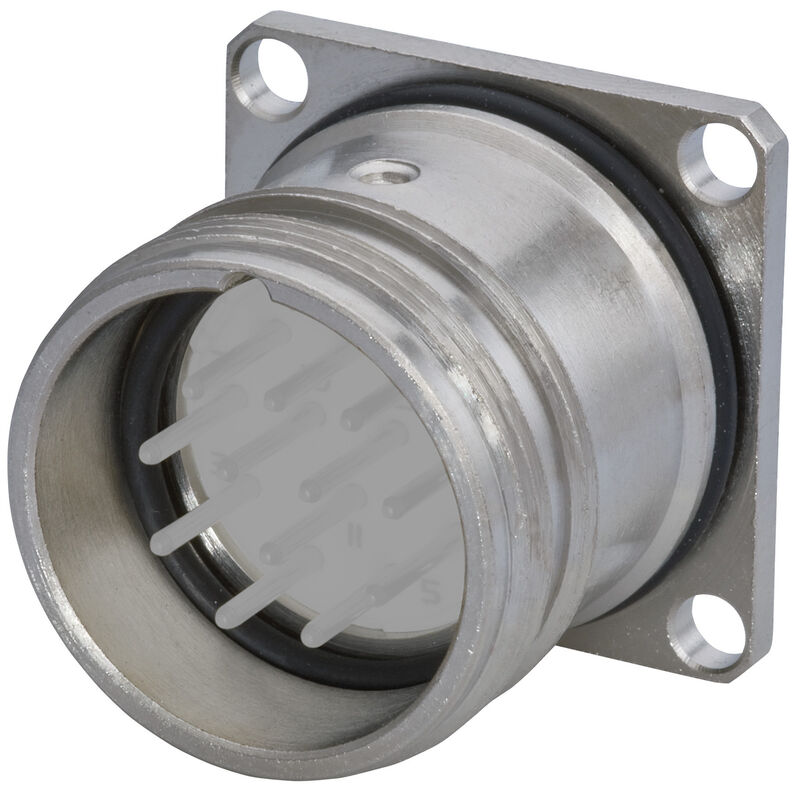

| 版本 | 传感器/执行器接插件, 内置插头, 空接线箱 |
| 订货号 | 1169990000 |
| 类型 | SAIE-M23-S-HW |
| GTIN (EAN) | 4032248962051 |
| 数量 | 1 PC |
| 净重 | 26 g |
| RoHS 合规状态 | 符合要求 |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | ebf89fc8-a87f-4691-b87a-dfb9921774b4 |
| 外壳基本材料 | 铜锌合金 |
| 外壳温度范围 | -40…+125°C |
| 屏蔽连接 | 是 |
| 污染等级 | 3 |
| 防护等级 |
IP67
IP69K |
| 工程数据 | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_177565) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1169990000) |
| 产品目录 | [Catalogues in PDF-format](LINK/Catalog.html) |
| 样本 |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
| ETIM 6.0 | EC000437 |
| ETIM 7.0 | EC003556 |
| ETIM 8.0 | EC003556 |
| ETIM 9.0 | EC003556 |
| ECLASS 9.1 | 27-44-02-02 |
| ECLASS 10.0 | 27-44-02-24 |
| ECLASS 11.0 | 27-44-02-24 |
| ECLASS 12.0 | 27-44-02-24 |
| ECLASS 13.0 | 27-44-02-24 |
| ECLASS 14.0 | 27-44-02-24 |
| 认证 |  |
| ROHS | 一致 |
| UL File Number Search | [UL 网站](LINK/UL_search.html) |
| UR 证书号 | E344862 |
