UR20-3EM-400V-AC-RC

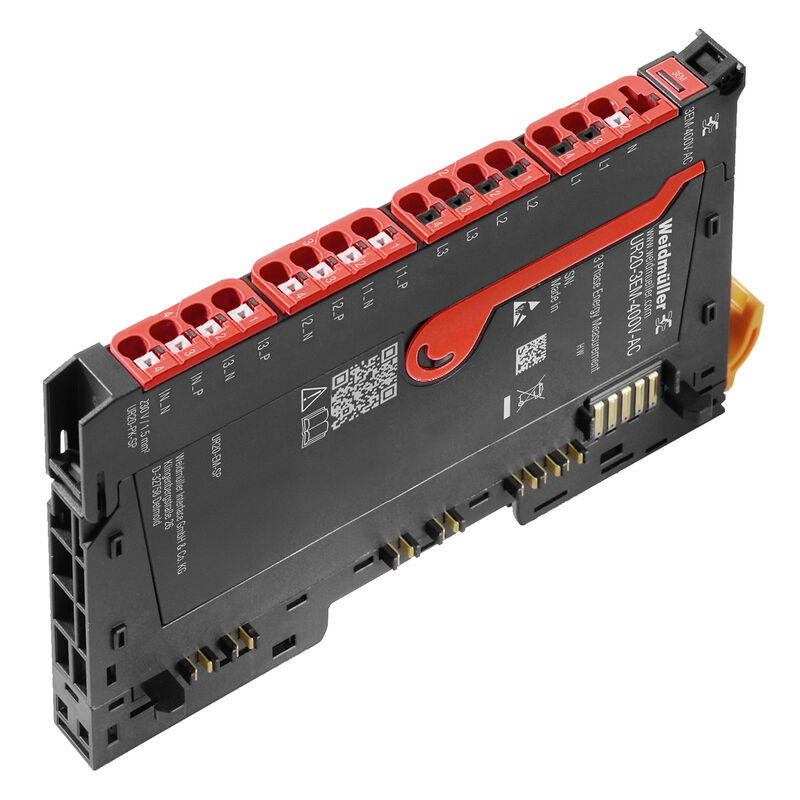

Product image
UR20-3EM-400V-AC-RC

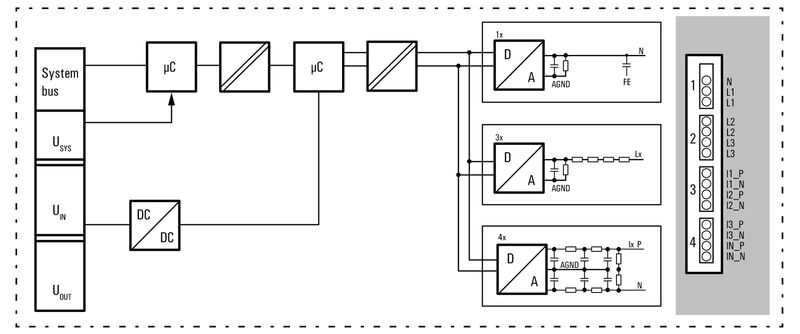

Block diagram
UR20-3EM-400V-AC-RC

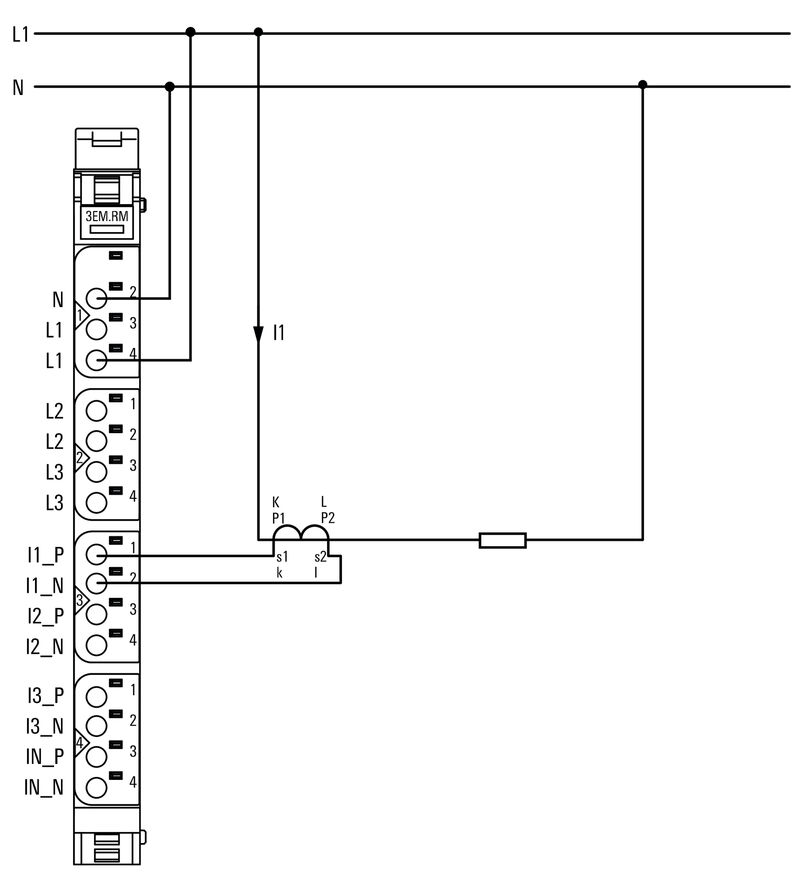

Connection diagram
UR20-3EM-400V-AC-RC

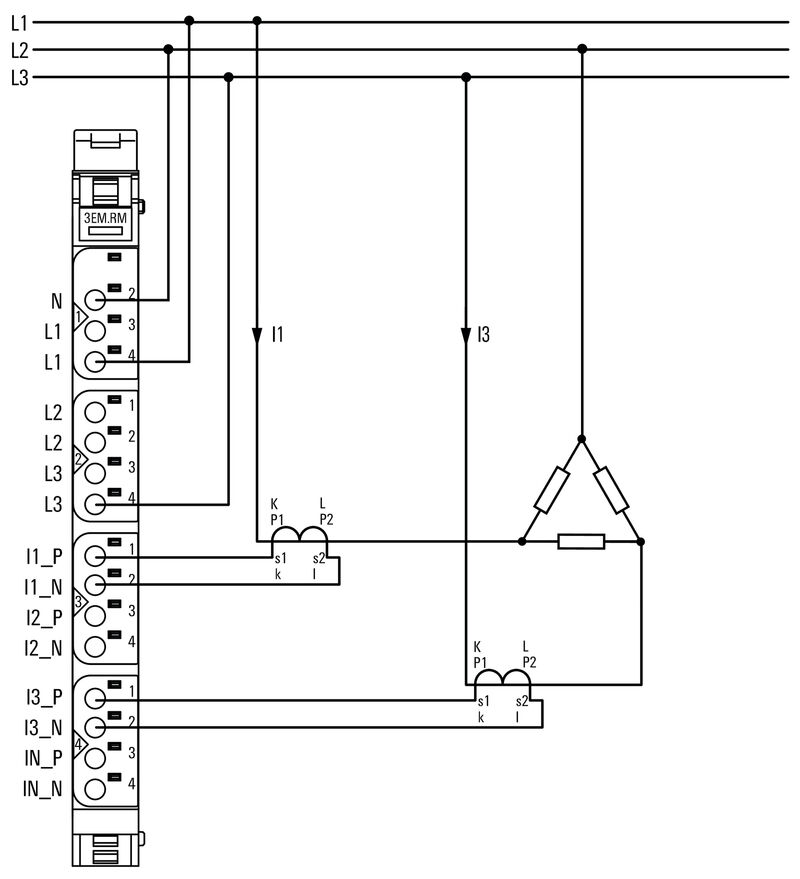

Connection diagram
UR20-3EM-400V-AC-RC

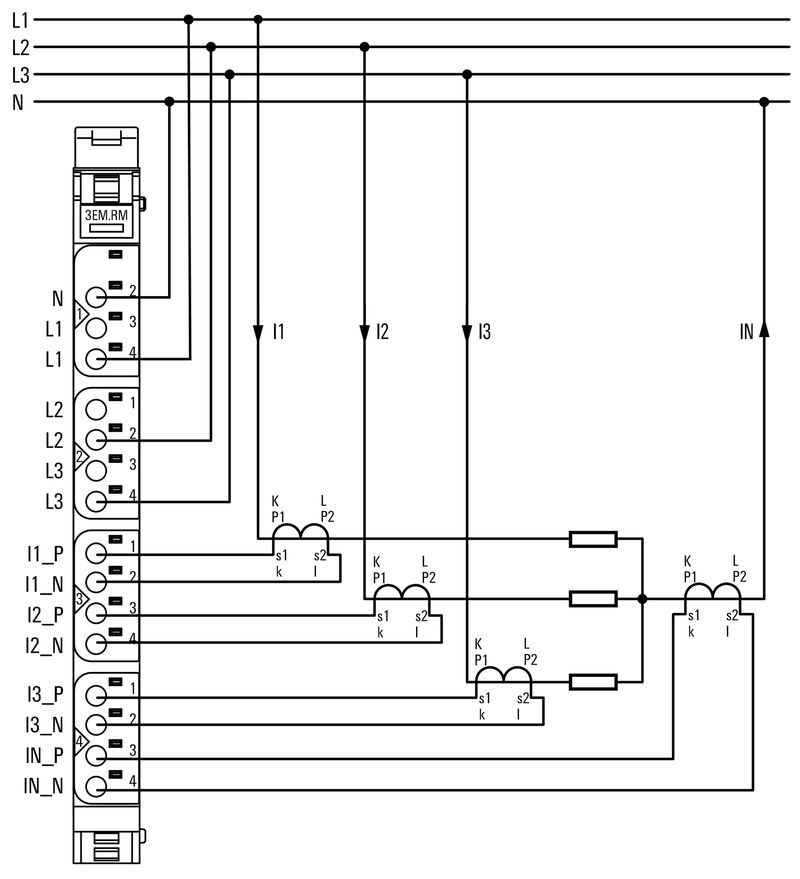

Connection diagram
UR20-3EM-400V-AC-RC

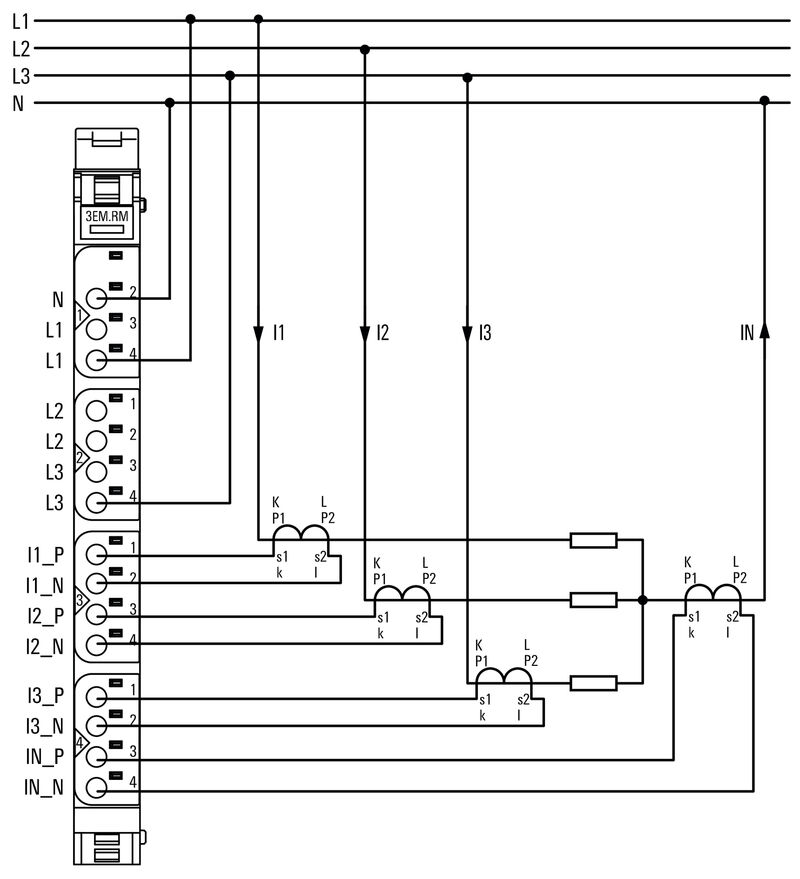

Connection diagram
UR20-3EM-400V-AC-RC
Explanation of abbreviations

UR20-3EM-400V-AC-RC

Remote I/O module, IP20

Produkt ID 2920850000
Åbn i konfiguratoren
Download datablad Engineering-support Produktdownloads
Tilbehør 21 Reservedele 1 Anvendte produkter 5
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance analogue inputs Connection data General data Power supply Systemdata Classifications

Approvals

Godkännanden
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certifikat-Nr. (cULus)
E141197

General ordering data

Utförande
Remote I/O module, IP20
Art.nr.
2920850000
Typ
UR20-3EM-400V-AC-RC
GTIN (EAN)
4099986601727
Qty.
1 Styk

Dimensions and weights

Djup
76 mm
Depth (inches)
2,992 inch
Höjd
120 mm
Height (inches)
4,724 inch
Bredd
11,5 mm
Width (inches)
0,453 inch
Net weight
88 g

Temperatures

Lagertemperatur
-40 °C ... +85 °C
Drifttemperatur
-20 °C...60 °C

Environmental Product Compliance

RoHS-kompatibilitetsstatus
Compliant with exemption
RoHS-undantag (om tillämpligt/känt)
7a, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
82327f13-cd27-455a-ab5b-a62e1996dcf8

analogue inputs

Anzahl
3
Análisis de armónico
up to 43rd
Auflösung
16 bit per channel (internal 24 bit)
32 bit for energy counter
Bemessungsspannung
according to table I.1 of IEC 61010-1:2010/AMD1:2016/COR1:2019
520 Veff (L-L)
300 Veff (L-N)
Connectable converter ratios
1 … 1000
Frequenz des Versorgungsnetzes
45…65 Hz
Individuell kanaldiagnos
Yes
Isolation
reinforced insulation
Kortslutningsskydd
Yes
Measurement accuracy
0.25% in relation to final value (U / I)
0.5% for the calculated values
0.75% for harmonics
Measurement method
High Resolution Delta Sigma (current measurement in outer conductor)
Measurement resistance (shunt)
4 mΩ (at 5 A)
20 mΩ (at 1 A)
Moduldiagnos
Yes
Névleges terhelési kapacitás
0…1 A / 0…5 A AC
Velocità di campionamento della misura della corrente
Sigma Delta ADC with 1.024 MHz (bandwidth of interest from 40 Hz to 3.3 kHz)
Входное импедансное напряжение
1.881 MΩ
전압 측정용 카테고리
CAT III (according to IEC 61010-1), CAT II (according to IEC 61010-1) for installations with rated voltage to earth > 300 V

Connection data

Anschlussart
PUSH IN
Anzahl
3
Leiteranschlussquerschnitt, eindrähtig, max.
1,5 mm²
Leiteranschlussquerschnitt, eindrähtig, max. (AWG)
AWG 16
Leiteranschlussquerschnitt, eindrähtig, min.
0,14 mm²
Leiteranschlussquerschnitt, eindrähtig, min. (AWG)
AWG 26
Leiteranschlussquerschnitt, feindrähtig, max.
1,5 mm²
Leiteranschlussquerschnitt, feindrähtig, max. (AWG)
AWG 16
Leiteranschlussquerschnitt, feindrähtig, min.
0,14 mm²
Leiteranschlussquerschnitt, feindrähtig, min. (AWG)
AWG 26

General data

Brennbarkeitsklasse nach UL 94
V-0
Luftdruck (Betrieb)
≥ 795 hPa (height ≤ 2000 m) as per DIN EN 61131-2
Luftdruck (Lagerung)
1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2
Luftdruck (Transport)
1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2
Luftfeuchtigkeit (Betrieb)
10% to 95%, non-condensing as per DIN EN 61131-2
Luftfeuchtigkeit (Lagerung)
10% to 95%, non-condensing as per DIN EN 61131-2
Luftfeuchtigkeit (Transport)
10% to 95%, non-condensing as per DIN EN 61131-2
Tragschiene
TS 35
Verschmutzungsgrad
2
Vibrationsfestigkeit
5 Hz ≤ f ≤ 8.4 Hz: 3.5-mm amplitude as per IEC 60068-2-6
8.4 Hz ≤ f ≤ 150 Hz: 1 g acceleration as per IEC 60068-2-6
Überspannungskategorie
II

Power supply

Stromaufnahme aus IIN (jeweiliges Power-Segment)
<35 mA
Stromaufnahme aus Isys, typ.
8 mA
Versorgungsspannung
24 V DC +20 %/ -15 %
via the system bus
24V DC +20 %/-15 % (according to IEC 61131)
24V DC +30%/-25% (according to DNV GL)

Systemdata

Anschluss
PUSH IN
Feldbusprotokoll
PROFINET IRT
PROFINET RT
CC-Link IE TSN
PROFIBUS DP-V1
EtherCAT
Modbus/TCP
EtherNet/IP
CANopen
DeviceNet
POWERLINK
CC-Link
Galvanische Trennung
500 V DC between the current paths
Modulart
Energy measurement module
Schnittstelle
u-remote system bus
Übertragungsrate Systembus, max.
48 MBit/s

Classifications

ETIM 8.0
EC001605
ETIM 9.0
EC001605
ETIM 10.0
EC001605
ECLASS 14.0
27-24-26-09
ECLASS 15.0
27-24-26-09
