VPU II 0 PV 600V DC
VPU II 0 PV 600V DC

VPU II 0 PV 600V DC

Bu ürün yakında mevcut olmayacak.

Last order date: /Date(1780264800000)/

Alternative product: 2857080000

Surge voltage arrester, Low voltage, Accessories, Surge protection II

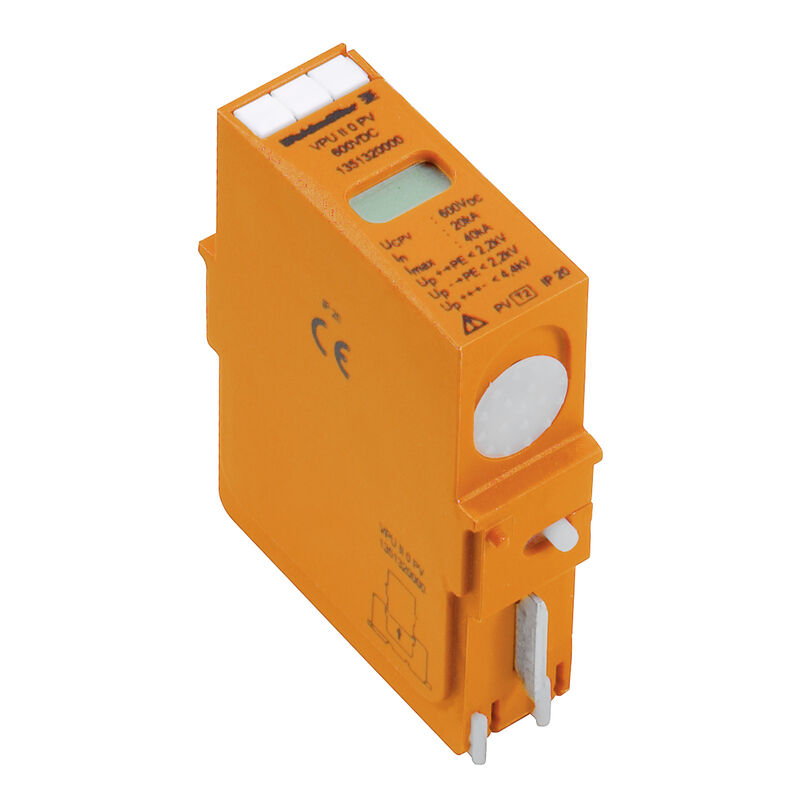

Ürün No. 1351320000
Veri sayfasını indir Ürün İndirmleri Mühendislik desteği
Aksesuarlar 2 İlgili ürünler 2
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Insulation coordination acc. to EN 50178 Photovoltaic technical data Rated data IEC / EN Connection data Electrical data General data Classifications Tender specification sheets

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Version
Surge voltage arrester, Low voltage, Accessories, Surge protection II
Order No.
1351320000
Type
VPU II 0 PV 600V DC
GTIN (EAN)
4050118158755
Qty.
1 adet
Delivery status
This article will no longer be available in the future.
Last order date
/Date(1780264800000)/
Alternative product
[2857080000](~/p/2857080000)

Dimensions and weights

Depth
64 mm
Depth (inches)
2,52 inch
Height
52 mm
Height (inches)
2,047 inch
Width
17,8 mm
Width (inches)
0,701 inch
Net weight
73,5 g

Temperatures

Storage temperature
-40 °C...80 °C
Operating temperature
-40 °C...

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General data

Colour
orange
Design
Installation housing; 1TE
Insta IP 20
Mounting rail
TS 35
Optical function display

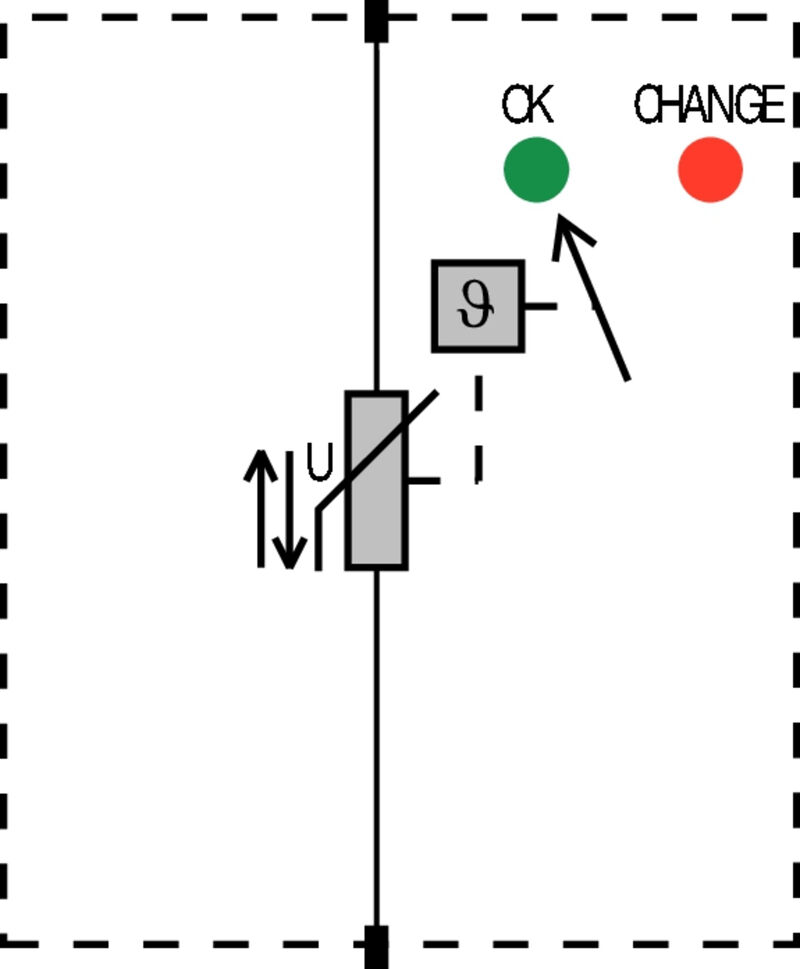

green = OK; red = arrester is defective - replace
Protection degree
IP20
UL 94 flammability rating
V-0
Version
Surge protection II

Insulation coordination acc. to EN 50178

Pollution severity
2
Surge voltage category
III

Photovoltaic technical data

Máx. tensión de servicio continua modo DC UCPV +/- , -/PE , +/PE
600 V
Protection level Up (+/- , -/PE , +/PE)
≤ 2.2 kV
Protection level Up at IN (per module)
≤ 2.2 kV
PV system voltage, max. Ucpv
600 V
Requirements class
Type II
Short-circuit curent ISCPV
200 A
Standards
EN 50539-11

Rated data IEC / EN

Czas reakcji / czas załączania
≤ 25 ns
Discharge current Imax (8/20µs) wire-PE
40 kA
Discharge current In (8/20µs) wire-PE
20 kA
Integrated back-up fuse
No
Leakage current at Un
30 µA
Max. continuous voltage, Uc (DC)
600 V
Normer
EN 50539-11
Number of poles
1
Névleges feszültség (DC)
600 V
Protection level Up at IN (L/N-PE)
≤ 2.2 kV
Tensione PV secondo IEC 60364-7-712
<600 V
전압 유형
DC

Connection data

Type of connection
pluggable
Wire connection cross section, finely stranded, min.
1,5 mm²
Wire connection cross section, finely stranded, max.
25 mm²
Connection cross-section, stranded, min.
1,5 mm²
Connection cross-section, stranded, max.
35 mm²

Electrical data

Voltage type
DC

General data

Number of poles
1
Protection degree
IP20
Colour
orange

Classifications

ETIM 8.0
EC000941
ETIM 9.0
EC000941
ETIM 10.0
EC000941
ECLASS 14.0
27-17-90-90
ECLASS 15.0
27-17-90-90

Tender specification sheets

Long specification
Spare arrestor consisting of V0 material for surge voltage arrestor VPU II 600 VDC series The pluggable high-performance varistors can be exchanged by trained personnel following a failure. Rated voltage: 600 VDC for PV systems Type: Weidmüller VPU II 0 PV 600 VDC Order No.: 1351320000
Krátká specifikace
Spare arrester for surge voltage arrester VPU II 600 V DC series The pluggable high-performance varistors can be swapped by trained personnel following a failure. Rated voltage: 600 V DC for PV systems Type: Weidmüller VPU II 0 PV 600 V DC Order no.: 1351320000
