WAP WDU2.5N/4N OR

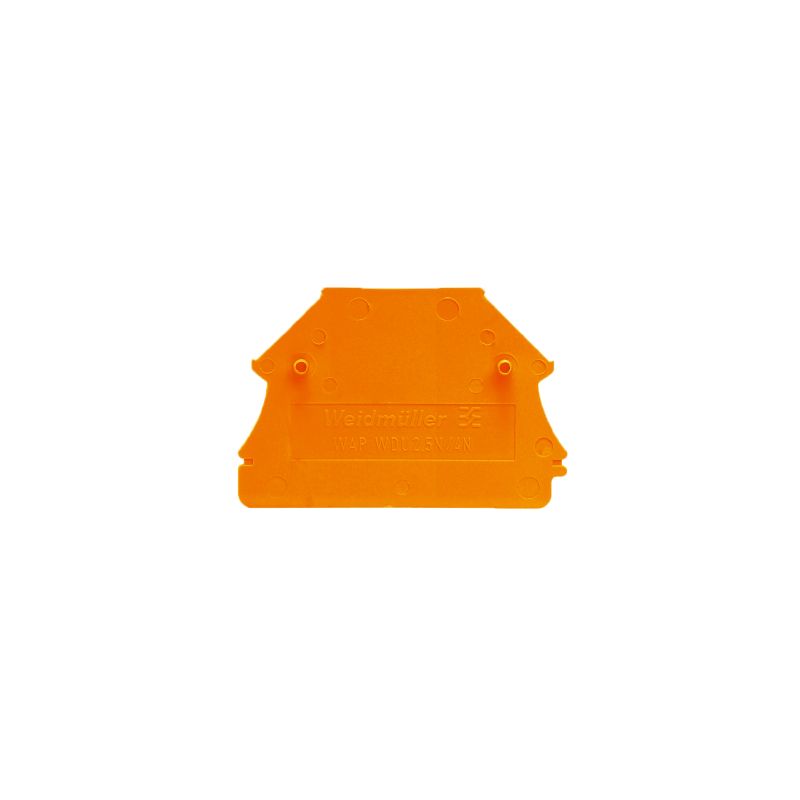

Product image

WAP WDU2.5N/4N OR

W-Series, End plate, orange, 1.5 mm

Tuotteen tunnus 1060060000
Lataa tietosivu Engineering Support Product Downloads
On lisävaruste 5 Samankaltaiset tuotteet 426
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications Additional technical data General Product images Classifications

Approvals

ROHS
Conform

General ordering data

Verze
W-Series, End plate, orange, 1.5 mm
Číslo objednávky
1060060000
Type
WAP WDU2.5N/4N OR
GTIN (EAN)
4008190031619
Qty.
50 items

Dimensions and weights

Tiefe
29,7 mm
Depth (inches)
1,169 inch
Height
44 mm
Height (inches)
1,732 inch
Width
1,5 mm
Width (inches)
0,059 inch
Net weight
1,619 g

Temperatures

Storage temperature
-25 °C...55 °C
Ambient temperature
-5 °C…40 °C
Continuous operating temp., min.
-50 °C
Continuous operating temp., max.
120 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Product Carbon Footprint
  • Cradle to gate:
    0,02 kg CO2 eq.

Material data

Basic material
Wemid
Colour
orange
UL 94 flammability rating
V-0

System specifications

Utförande
End plate

Additional technical data

Installation advice
Direct mounting
Snap-on
No

General

Instruction de montage
Direct mounting

Product images

Classifications

ETIM 8.0
EC000886
ETIM 9.0
EC000886
ETIM 10.0
EC000886
ECLASS 14.0
27-25-03-01
ECLASS 15.0
27-25-03-01
