Properties

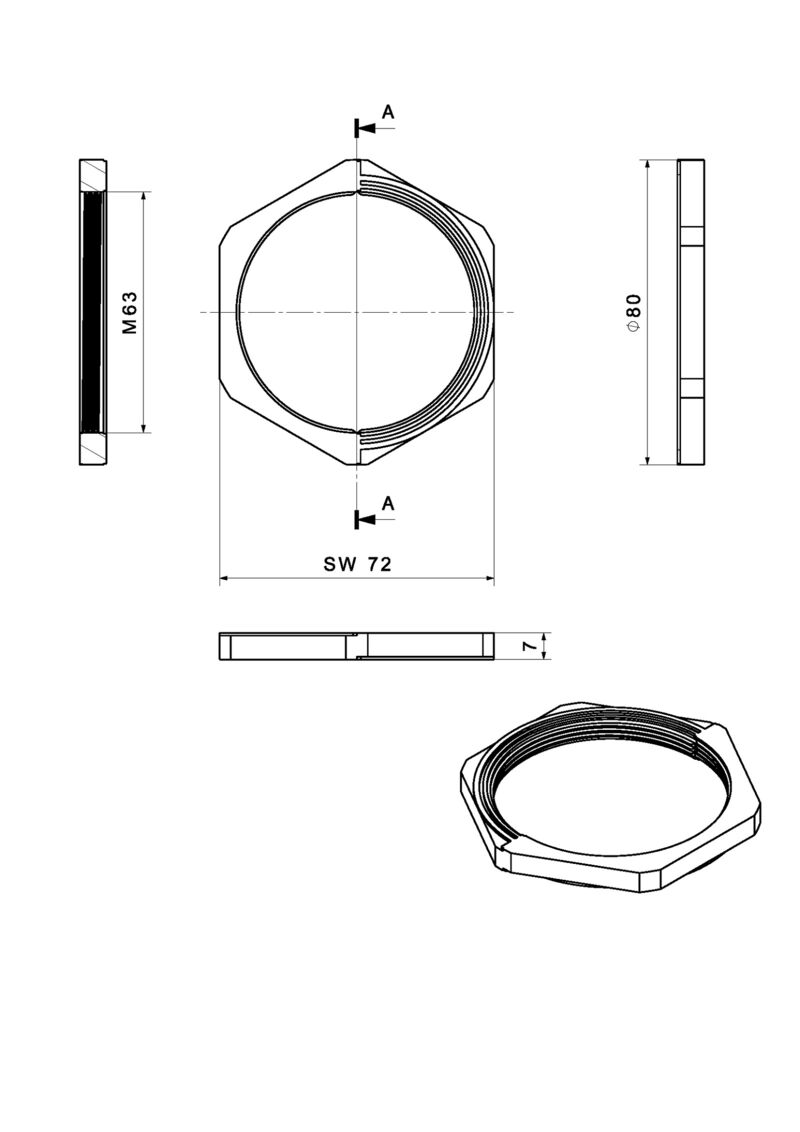

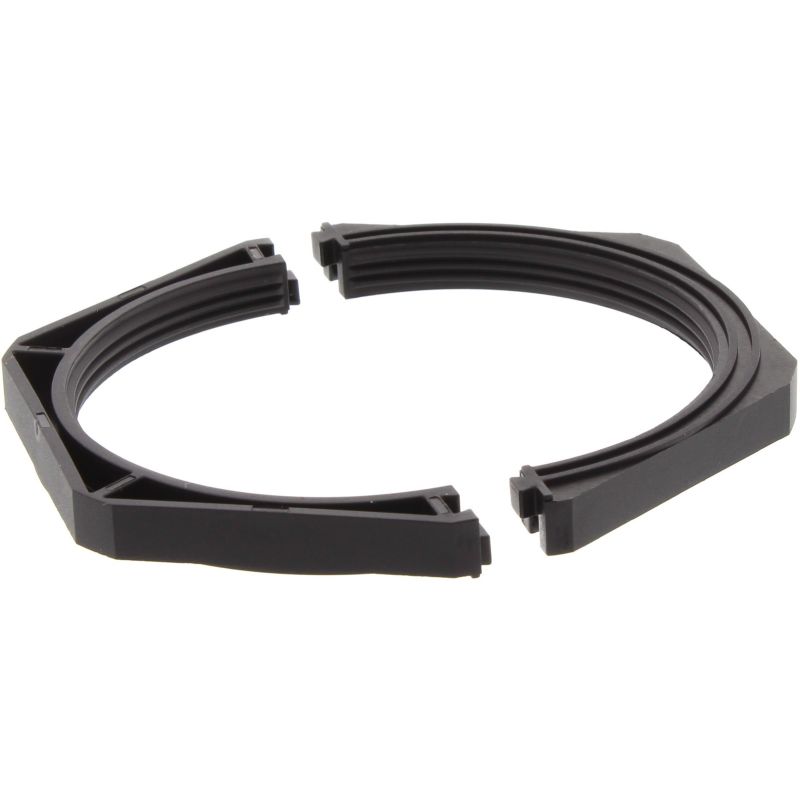

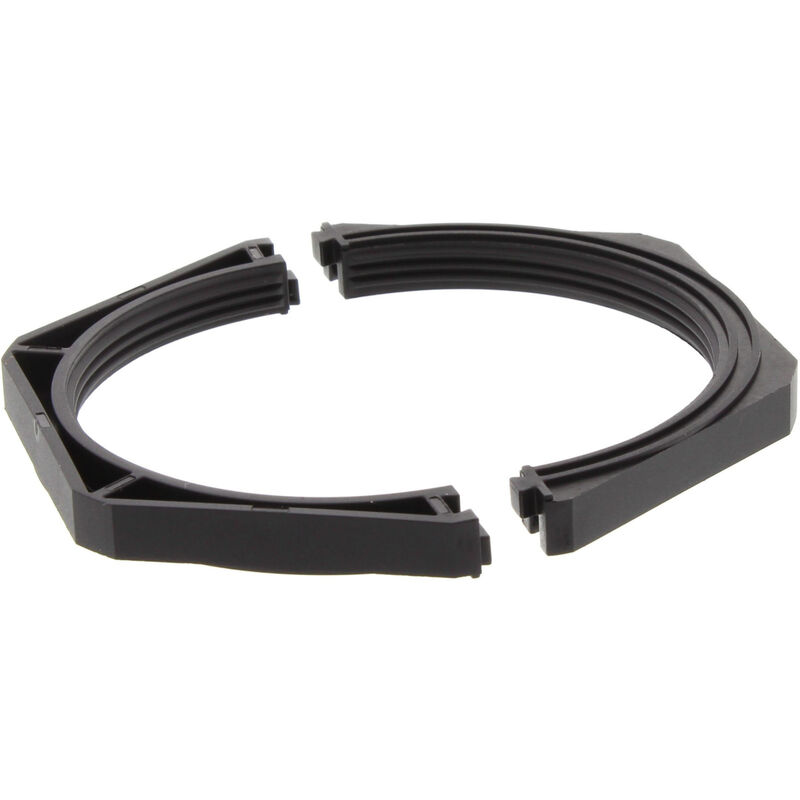

| Version | separable locknut, Cabtite (cable entry system), Polyamide, glass fibre-reinforced, Deep black, Height: 72 mm, Width: 72 mm, Depth: 7 mm, -40 °C…120 °C |
| Order No. | 2584010000 |
| Type | CABTITE LNS M63 BK |
| GTIN (EAN) | 4050118617245 |
| Qty. | 5 items |
| Depth | 7 mm |
| Depth (inches) | 0.276 inch |
| Height | 72 mm |
| Height (inches) | 2.835 inch |
| Width | 72 mm |
| Width (inches) | 2.835 inch |
| Diameter | 83 mm |
| Net weight | 9.2 g |
| Operating temperature | -40 °C...120 °C |
| AF size 1 | 72 mm |
| AF size 2 | 83 mm |
| External thread | M 63 |
| Halogen | No |
| Length of thread | 7 mm |
| Material | Polyamide, glass fibre-reinforced |
| Pitch of thread | 1.5 mm |
| Silicone | No |
| UL 94 flammability rating | V-0 |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_80054) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2584010000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2584010000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=2584010000&norm=0) |
| User Documentation | [Installation Instructions](https://mdcop.weidmueller.com/mediadelivery/asset/900_86820) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000940 |
| ETIM 7.0 | EC000940 |
| ETIM 8.0 | EC000940 |
| ETIM 9.0 | EC000940 |
| ECLASS 9.0 | 27-14-44-24 |
| ECLASS 9.1 | 27-14-44-24 |
| ECLASS 10.0 | 27-14-44-24 |
| ECLASS 11.0 | 27-14-44-24 |
| ECLASS 12.0 | 27-14-08-07 |
| ECLASS 13.0 | 27-14-08-07 |
| ROHS | Conform |
