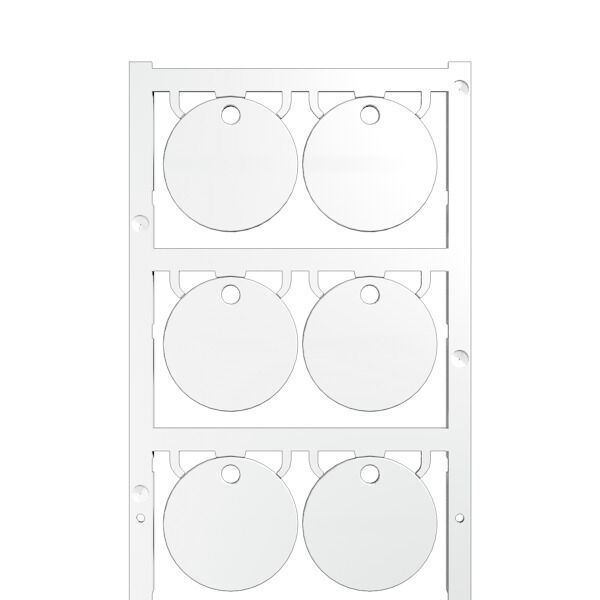

CC DIA 30/3.5 MC SDR
CC DIA 30/3.5 MC SDR

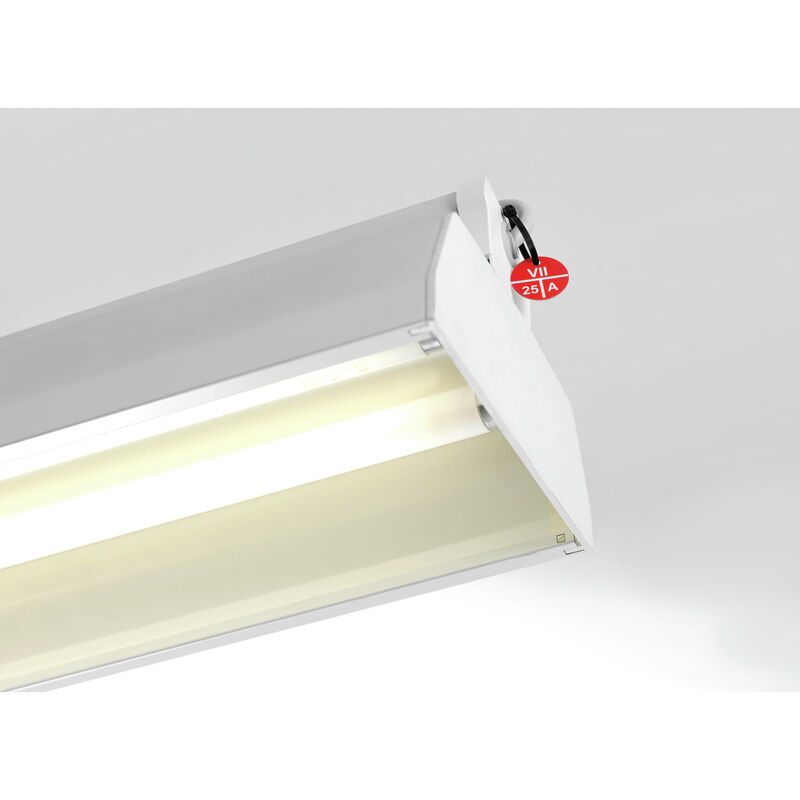

Example of use

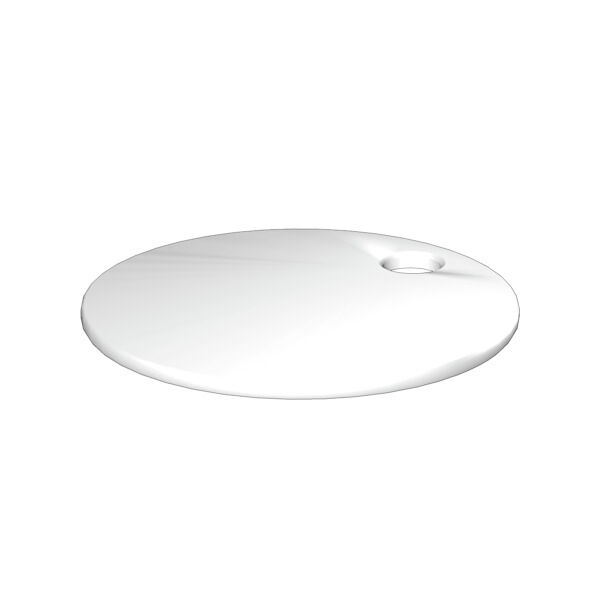

Similar to illustration
CC DIA 30/3.5 MC SDR
Example of use

CC DIA 30/3.5 MC SDR

ClipCard, Device markers, 30 x 30 mm, With hole, To customer specification

Produkt ID 1266150000
Download datablad Produktdownloads Engineering-support
Anvendte produkter 3
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Device markers Classifications

Approvals

ROHS
Conform

General ordering data

Version
ClipCard, Device markers, 30 x 30 mm, With hole, To customer specification
Order No.
1266150000
Type
CC DIA 30/3.5 MC SDR
GTIN (EAN)
4050118056037
Qty.
12 Styk

Dimensions and weights

Profondeur
1,2 mm
Depth (inches)
0,047 inch
Hauteur
30 mm
Height (inches)
1,181 inch
Largeur
30 mm
Width (inches)
1,181 inch
Diameter
30 mm
Net weight
1,5 g

Temperatures

plage de température d'utilisation
-40...100 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Product Carbon Footprint
  • Cradle to gate:
    0.017 kg CO2 eq.

General data

anpassad skrivare
[PRINTJET CONNECT](~/p/2715590000)
[MCP PLUS](~/p/1925000000)
Application/manufacturer
With hole
Basic material
Polyamide 66
Campo delle temperature di impiego, max.
100 °C
Campo delle temperature di impiego, min.
−40 °C
Classe d'infiammabilità UL 94
V-2
Larghezza
30 mm
Nadrukowane znaki
Requires M-Print PRO File
Number of markers per combination
1 MultiCard = Device markers
Változat
ø 30 mm
with 3.5 mm mounting hole
Zakres temperatury stosowania
-40...100 °C
Количество маркировочных элементов в упаковочной единице
  • Form of supply:
    MultiCard
컬러 코드
To customer specification
할로겐
No

Device markers

Diamètre
30 mm
Diamètre du trou de perçage
3,5 mm
Halogène
No

Classifications

ETIM 8.0
EC001288
ETIM 9.0
EC001288
ETIM 10.0
EC001288
ECLASS 14.0
27-28-11-04
ECLASS 15.0
27-28-11-04
