Özellikler
| Version | CableLine, Mounting mandrel |
| Order No. | 0560001740 |

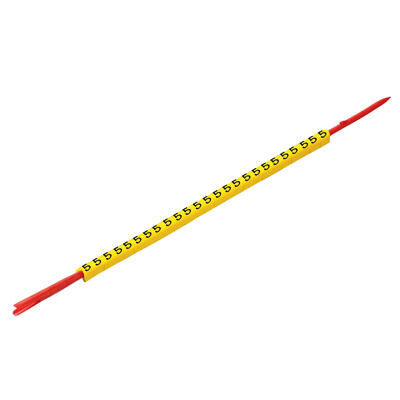

| Type | CLI R 02-3 GE/SW - |
| GTIN (EAN) | 4008190990091 |
| Qty. | 10 adet |
| Depth | 4 mm |
| Depth (inches) | 0,157 inch |
| Height | 3 mm |
| Height (inches) | 0,118 inch |
| Width | 3,4 mm |
| Width (inches) | 0,134 inch |
| Net weight | 1,3 g |
| Operating temperature range | -30...80 °C |
| REACH SVHC | / |
| Colour | yellow |
| Colour of printing | black |
| Halogen | Yes |
| Material | PVC, soft, without Cadmium |
| Material colour according to resistance code | 4 |
| Number per mandrel | 25 |
| Operating temperature range | -30...80 °C |
| Operating temperature range, max. | 80 °C |
| Operating temperature range, min. | -30 °C |
| Orientation of print | horizontal |
| Printed characters | Symbols |
| Printing | - |
| Printing method | hot-embossing |
| Recommended industries |
Process
Machinery |
| Type of printing | Standard |
| UL 94 flammability rating | V-0 |
| Version | MultiPack |
| Width | 3,4 mm |
| Conductor cross-section, max. | 1,5 mm² |
| Conductor cross-section, min. | 0,2 mm² |
| Conductor O.D. | 1.3 - 3 mm |
| Conductor O.D., max. | 3 mm |
| Conductor O.D., min. | 1,3 mm |
| Cross-section for connected wire | 0.2 - 1.5 mm² |
| Halogen | Yes |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=0560001740&norm=0) |
| Product Change Notification |
[PCN CableLine_DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_49687)
[PCN CableLine_EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_49688) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001530 |
| ETIM 7.0 | EC001530 |
| ETIM 8.0 | EC001530 |
| ETIM 9.0 | EC001530 |
| ECLASS 9.0 | 27-40-04-01 |
| ECLASS 9.1 | 27-40-06-29 |
| ECLASS 10.0 | 27-40-04-01 |
| ECLASS 11.0 | 27-28-11-02 |
| ECLASS 12.0 | 27-28-11-02 |
| ECLASS 13.0 | 27-28-11-02 |
| ROHS | Conform |
