Ominaisuudet
| Version | CUBESERIES, Cross-connector |
| Order No. | 3052620000 |

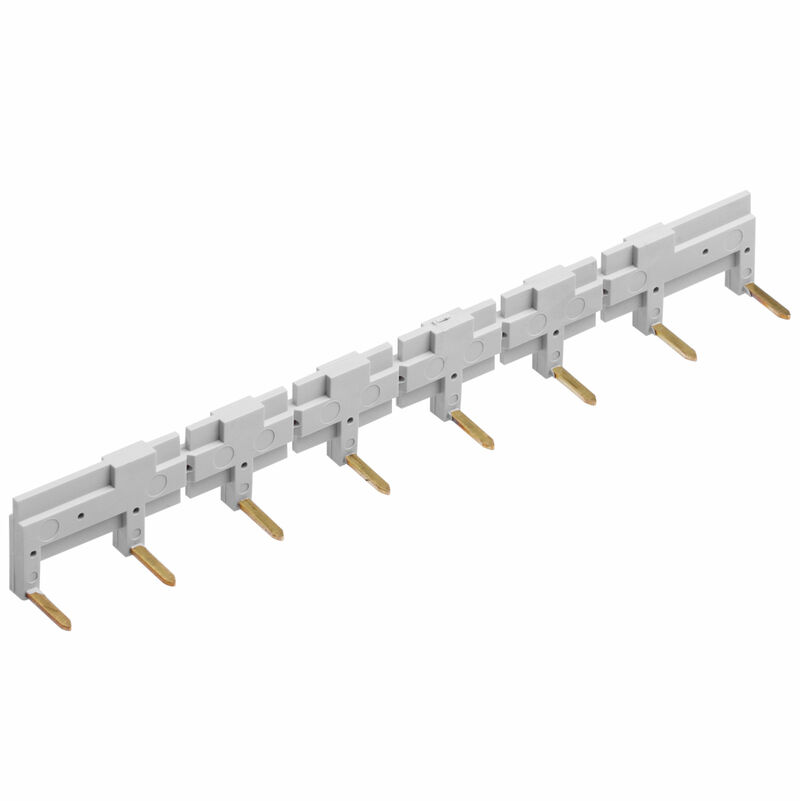

| Type | CXI CCS 8P GY |
| GTIN (EAN) | 4099987022446 |
| Qty. | 2 items |
| Depth | 13,8 mm |
| Depth (inches) | 0,543 inch |
| Height | 11,3 mm |
| Height (inches) | 0,445 inch |
| Width | 111,3 mm |
| Width (inches) | 4,382 inch |
| Net weight | 9 g |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -40 °C...70 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Rated current | 10 A |
| Insulation | Yes |
| Touch-safe protection | Yes |
| Colour | grey |
| Number of poles | 8 |
| Pitch in mm (P) | 15 mm |
| Rated current (UL) | 10 A |
| Colour | grey |
| Pitch in mm (P) | 15 mm |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002586 |
| ETIM 7.0 | EC002586 |
| ETIM 8.0 | EC002586 |
| ETIM 9.0 | EC002586 |
| ECLASS 9.1 | 27-37-16-92 |
| ECLASS 10.0 | 27-37-16-92 |
| ECLASS 11.0 | 27-37-16-92 |
| ECLASS 12.0 | 27-37-16-92 |
| ECLASS 13.0 | 27-37-16-92 |
| ECLASS 14.0 | 27-37-16-92 |
| ROHS | Conform |
