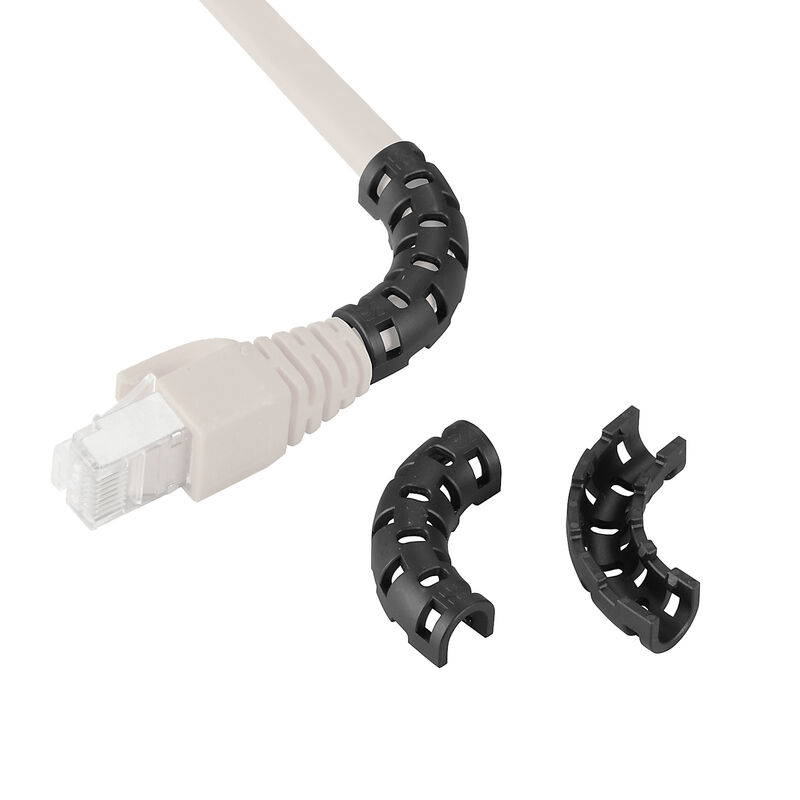

IE-CABLE-BENDER-90
IE-CABLE-BENDER-90
IE-CABLE-BENDER-90

IE-CABLE-BENDER-90

Product ID 2704480000
Gegevensblad downloaden Engineering support Communicatiemedia
Verwante producten 1
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Important note Classifications

Approvals

ROHS
Conform

General ordering data

Order No.
2704480000
Type
IE-CABLE-BENDER-90
GTIN (EAN)
4050118801132
Qty.
50 items

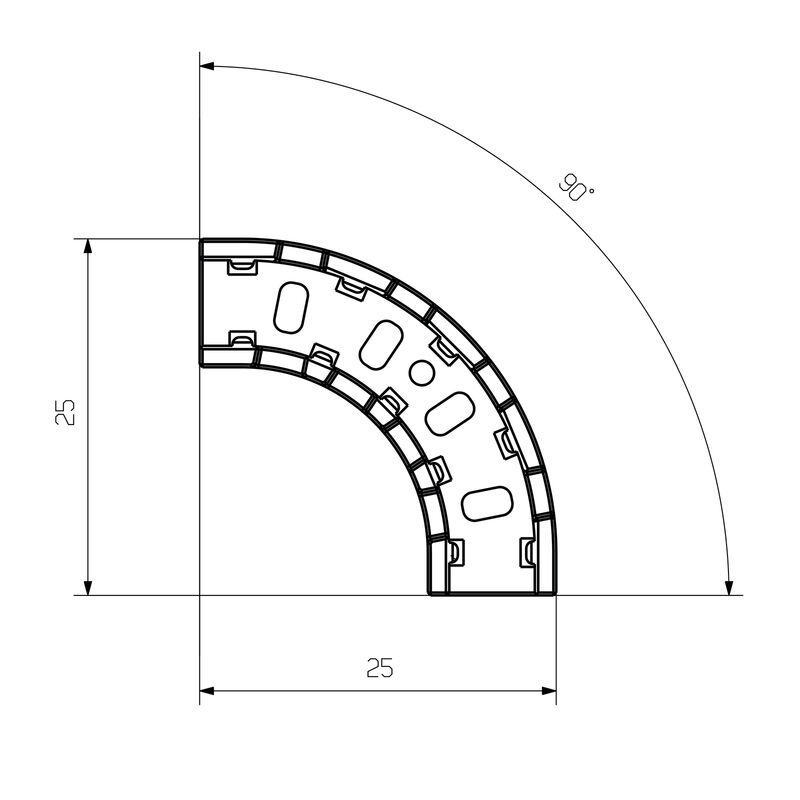

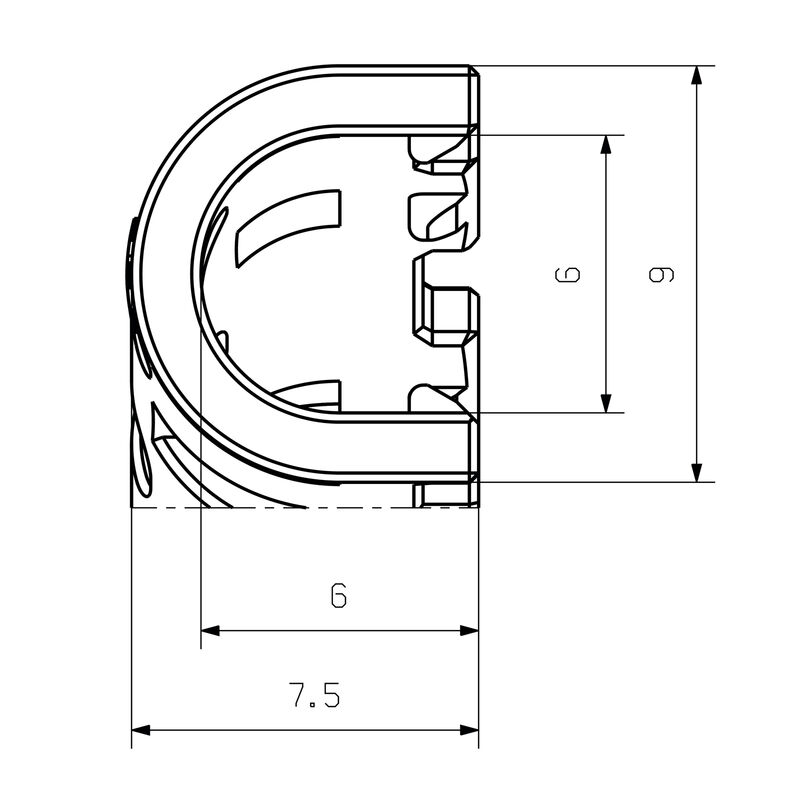

Dimensions and weights

Net weight
0,96 g

Temperatures

Ambient temperature
-25 °C…85 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General data

Colour
black
Bending protection sleeve material
Polyamide PA66
Halogen
No
UL 94 flammability rating
V-0
Bending angle of cable
90 °
Sheath diameter, max.
6,5 mm
Sheath diameter, min.
5,5 mm

Important note

Product information
The plastic material used is covered by a material-specific UL Yellow Card.
Detailed information is available upon request.

Classifications

ETIM 8.0
EC001679
ETIM 9.0
EC001679
ETIM 10.0
EC001679
ECLASS 14.0
27-06-04-12
ECLASS 15.0
27-06-04-12
