IE-SW-EL08-8GT

IE-SW-EL08-8GT

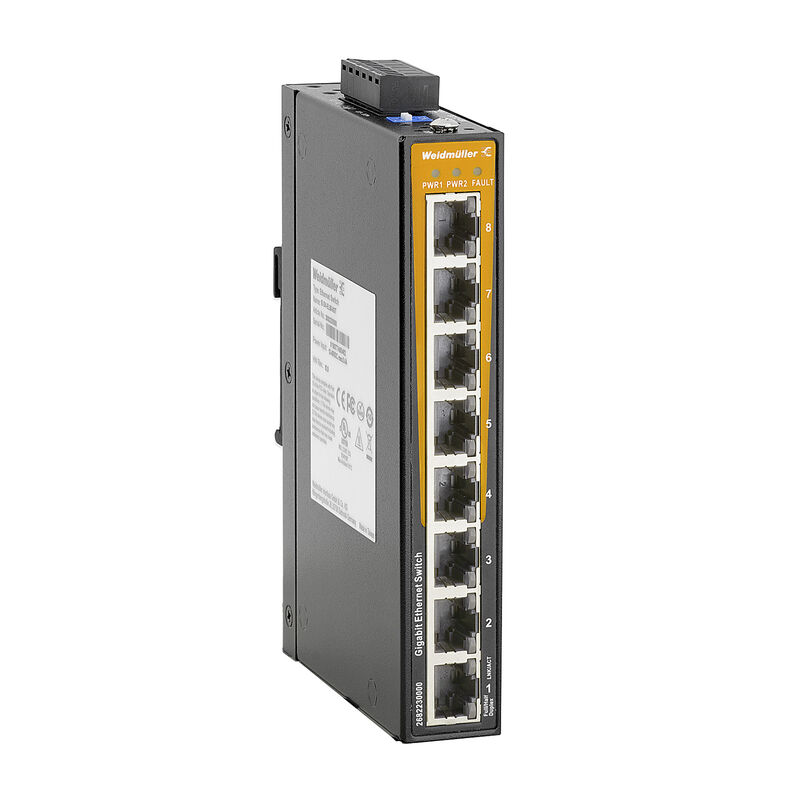

Network switch, unmanaged, Gigabit Ethernet, Number of ports: 8x RJ45, IP30, -40 °C...75 °C

Item No. 2682230000
Abrir en el configurador
Descargar hoja de datos Mühendislik desteği Ürün İndirmleri
Aksesuarlar 1 İlgili ürünler 12
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance EMC conformity and approvals Environmental conditions Guarantee Interfaces MTBF Power supply Switch characteristics Technical data Technology Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/77c071f4-46bd-4b7f-8f24-3c61d44584d2/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E141197

General ordering data

Версия
Network switch, unmanaged, Gigabit Ethernet, Number of ports: 8x RJ45, IP30, -40 °C...75 °C
Order No.
2682230000
Type
IE-SW-EL08-8GT
GTIN (EAN)
4050118692488
Qty.
1 adet

Dimensions and weights

Depth
94,9 mm
Depth (inches)
3,736 inch
Height
144,3 mm
Height (inches)
5,681 inch
Width
26,1 mm
Width (inches)
1,028 inch
Net weight
425 g

Temperatures

Storage temperature
-40 °C...85 °C
Operating temperature
-40 °C...75 °C
Humidity
5 to 95 % (non-condensing)

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c, 7a, 7cI
REACH SVHC
Lead 7439-92-1
Lead monoxide 1317-36-8
SCIP
9229992a-00b9-4096-8962-200a7f33e289

EMC conformity and approvals

Caída libre
According to IEC 60068-2-31
EMC standards
EN 55032
EN 55024
CISPR 32
FCC Part 15 Subpart B Class A
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz bis 1 Ghz: 3 V/m
IEC 61000-4-4 EFT: Power: 0.5 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 0,5 kV; Signal: 1 kV
IEC 61000-4-6 CS: 3 Vrms
Norma di sicurezza
UL 61010-1
UL 61010-2-201
Vibration
according to IEC 60068-2-6
Ütés
according to IEC 60068-2-27

Environmental conditions

Humidity
5 to 95 % (non-condensing)
Operating altitude
  • Altitude, max.:
    2.000 m
  • Note:
    in acc. with UL
  • Altitude, max.:
    6.000 m
  • Note:
    for restrictions, see the manufacturer's declaration for operating altitude in section downloads
Operating temperature, max.
75 °C
Operating temperature, min.
-40 °C
Storage temperature, max.
85 °C
Storage temperature, min.
-40 °C

Guarantee

Time interval
5 years

Interfaces

Function DIP switch
2x for enabling/disabling power fault alarm via relay
LED indicator
Power LED: PWR1, PWR2
Port LED: LNK/ACT, 10/100/1000M (RJ45 port)
Number of ports
8x RJ45
RJ45 ports
10/100/1000BaseT(X)
auto negotiation
Full-/half-duplex mode
Auto MDI/MDI-X port
Signalling contact
1releový výstup s proudovou kapacitou 1 A při 24 V DC

MTBF

MTBF
  • According to Standard:
    Telcordia SR-332
  • Operating time (hours), min.:
    926.332 h

Power supply

Connection type
1 removable 6-pin terminal block
Current consumption
  • Voltage:
    24 V
  • Current:
    0,2 A
Overload current protection
Yes
Reverse polarity protection
Yes
Rozsah napájecího napětí
  • Voltage type:
    DC
  • Voltage, min.:
    10,8 V
  • Voltage, max.:
    52,8 V
Supply voltage
12/24/48 V DC
2 redundant inputs

Switch characteristics

Bandwidth backplane
16 Gbit/s
Jumbo frame support
up to 9216 Bytes
MAC table size
4 K
Packet buffer size
1,5 Mbit

Technical data

Housing main material
Metal
Protection degree
IP30
Speed
Gigabit Ethernet
Switch
unmanaged
Type of mounting
DIN rail

Technology

Data switching
Store and Forward
Flow control
IEEE 802.3x flow control
Standard
IEEE 802.3 for 10BASE-T
IEEE 802.3u for 100BASE-TX
IEEE 802.3ab for 1000BASE-T
IEEE 802.3x for flow control

Classifications

ETIM 8.0
EC000734
ETIM 9.0
EC000734
ETIM 10.0
EC000734
ECLASS 14.0
19-17-04-02
ECLASS 15.0
19-17-04-02
