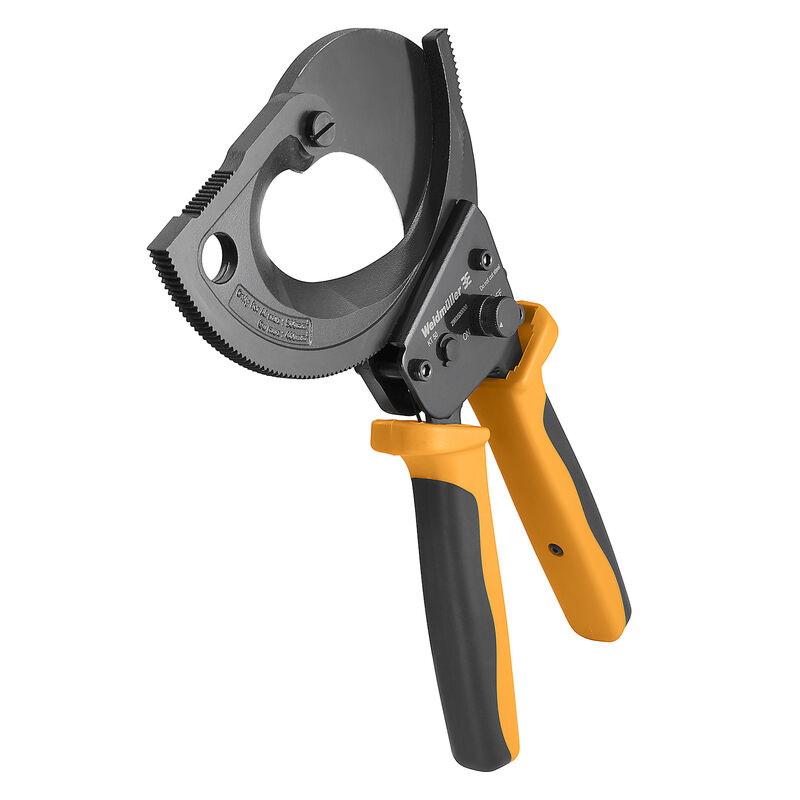

KT 50

KT 50

Cutting tools

Produkt ID 2993500000
Download datablad Product Downloads
Anvendte produkter 5
General ordering data Dimensions and weights Environmental Product Compliance Cutting tools Classifications

General ordering data

Version
Cutting tools
Order No.
2993500000
Type
KT 50
GTIN (EAN)
4099986874329
Qty.
1  Styk

Dimensions and weights

Depth
40  mm
Depth (inches)
1,575  inch
Height
110  mm
Height (inches)
4,331  inch
Width
345  mm
Width (inches)
13,583  inch
Net weight
1.370  g

Environmental Product Compliance

RoHS Compliance Status
Not affected
REACH SVHC
Lead 7439-92-1
SCIP
cf06c250-ed1e-4a45-9c1b-c5c8cbf13bf0

Cutting tools

Aluminium sector cable
4 x 70 SE
Copper cable - flexible, max.
400  mm²
Copper cable - flexible, max. (kcmil)
800  kcmil
Copper cable - stranded, max.
400  mm²
Copper cable - stranded, max. (kcmil)
800  kcmil
Copper cable, max. diameter
52  mm
Copper sector cable
4 x 70 SM
Stranded aluminium cable, max (mm²)
400  mm²
Stranded aluminium cable, max. (kcmil)
800  kcmil
Stranded aluminium cable, max. diameter
52  mm

Classifications

ETIM 6.0
EC000142
ETIM 7.0
EC000142
ETIM 8.0
EC000142
ETIM 9.0
EC000142
ETIM 10.0
EC000142
ECLASS 9.0
21-04-47-01
ECLASS 9.1
21-04-90-11
ECLASS 10.0
21-04-47-01
ECLASS 11.0
21-04-47-01
ECLASS 12.0
21-04-47-01
ECLASS 13.0
21-04-47-01
ECLASS 14.0
21-04-47-01
ECLASS 15.0
21-04-47-01
