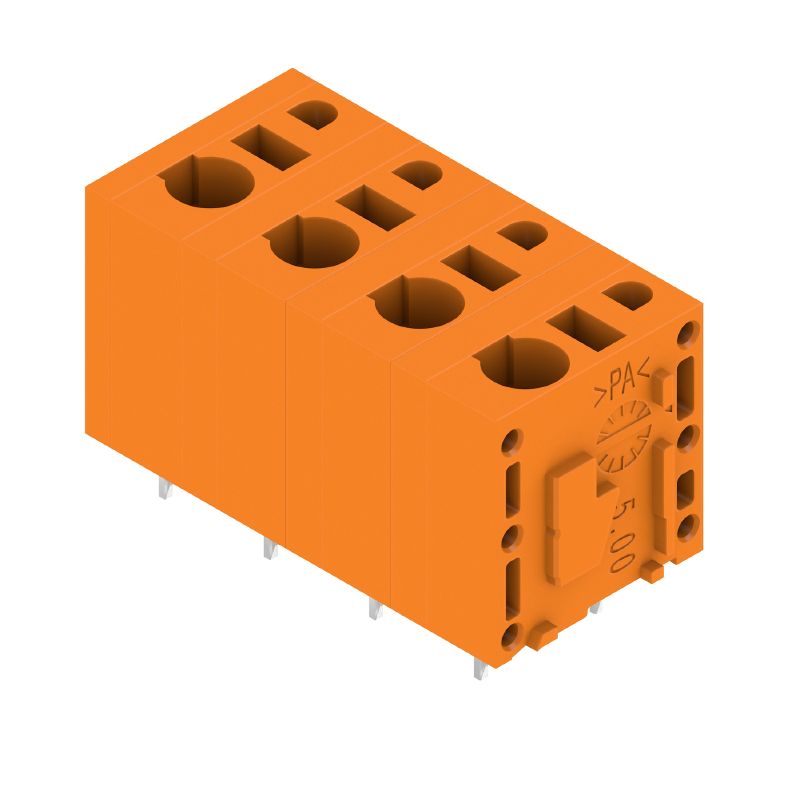

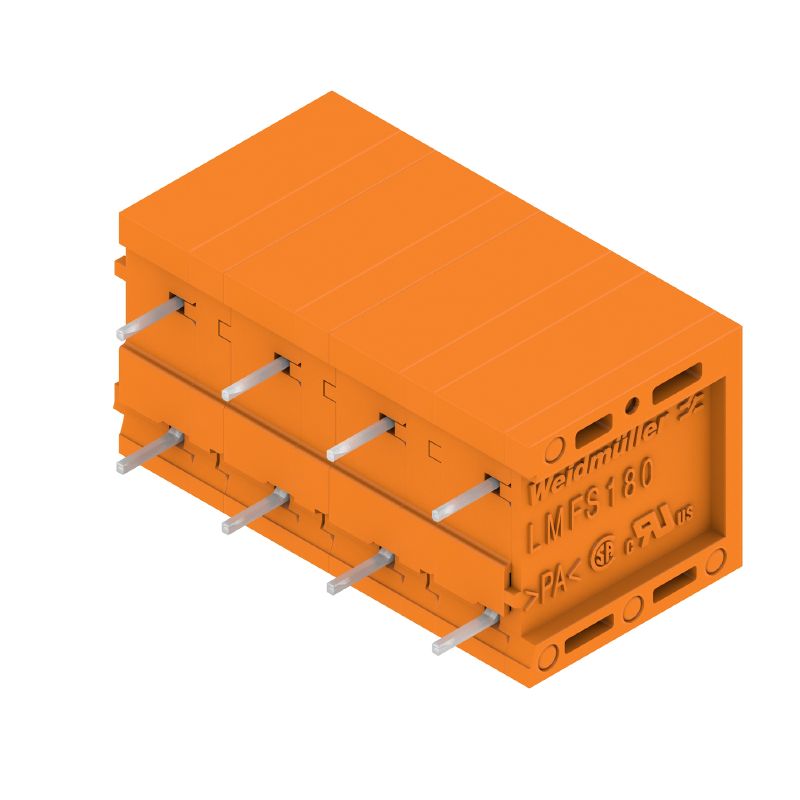

LMFS 7.50/04/180 3.5SN OR BX

Printed circuit board terminals, 7.50 mm, Number of poles: 4, 180°, Solder pin length (l): 3.5 mm, tinned, orange, PUSH IN without actuator, Box

Product ID 2774780000

Eigenschappen

General ordering data

Version	Printed circuit board terminals, 7.50 mm, Number of poles: 4, 180°, Solder pin length (l): 3.5 mm, tinned, orange, PUSH IN without actuator, Box
Order No.	2774780000
Type	LMFS 7.50/04/180 3.5SN OR BX
GTIN (EAN)	4064675039488
Qty.	50 items
Product data	IEC: 1000 V / 24 A / 0.5 - 2.5 mm² UL: 300 V / 20 A / AWG 24 - AWG 12
Packaging	Box

Dimensions and weights

Depth	14,8 mm
Depth (inches)	0,583 inch
Height	18,7 mm
Height (inches)	0,736 inch
Width	30,2 mm
Width (inches)	1,189 inch
Net weight	6,619 g

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

System parameters

Product family	OMNIMATE Signal - series LMF
Wire connection method	PUSH IN without actuator
Mounting onto the PCB	THT solder connection
Conductor outlet direction	180°
Pitch in mm (P)	7,5 mm
Pitch in inches (P)	0,295 "
Number of poles	4
Pin series quantity	2
Number of rows	1
Solder pin length (l)	3,5 mm
Solder pin dimensions	0.6 x 0.8 mm
Stripping length	10 mm
Touch-safe protection acc. to DIN VDE 0470	IP 20
Touch-safe protection acc. to DIN VDE 57 106	Safe from finger touch

Material data

Insulating material	Wemid (PA)
Colour	orange
Colour chart (similar)	RAL 2000
Comparative Tracking Index (CTI)	≥ 600
UL 94 flammability rating	V-0
Contact material	Cu-alloy
Contact surface	tinned
Coating	4-6 μm SN
Layer structure of solder connection	4...8 µm Sn matt
Storage temperature, min.	-40 °C
Storage temperature, max.	70 °C
Operating temperature, min.	-50 °C
Operating temperature, max.	120 °C

Conductors suitable for connection

Wire connection cross section AWG, min.	AWG 24
Wire connection cross section AWG, max.	AWG 12
Solid, min. H05(07) V-U	0,5 mm²
Solid, max. H05(07) V-U	2,5 mm²
Flexible, min. H05(07) V-K	0,25 mm²
Flexible, max. H05(07) V-K	2,5 mm²
w. wire end ferrule, DIN 46228 pt 1, min.	0,25 mm²
w. wire end ferrule, DIN 46228 pt 1, max.	2,5 mm²
Reference text	Length of ferrules is to be chosen depending on the product and the rated voltage. The outside diameter of the plastic collar should not be larger than the pitch (P)

Rated data acc. to IEC

tested acc. to standard	IEC 60664-1 IEC 61984
Rated current, min. number of poles (Tu=20°C)	24 A
Rated current, max. number of poles (Tu=20°C)	20 A
Rated current, min. number of poles (Tu=40°C)	23 A
Rated current, max. number of poles (Tu=40°C)	18 A
Rated voltage for surge voltage class / pollution degree II/2	1.000 V
Rated voltage for surge voltage class / pollution degree III/2	600 V
Rated voltage for surge voltage class / pollution degree III/3	500 V
Rated impulse voltage for surge voltage class/ pollution degree II/2	6 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2	6 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3	6 kV
Short-time withstand current resistance	3 x 1s with 120 A

Rated data acc. to CSA

Rated voltage (Use group B / CSA)	300 V
Rated voltage (Use group D / CSA)	300 V
Rated current (Use group B / CSA)	20 A
Rated current (Use group D / CSA)	10 A
Wire cross-section, AWG, min.	AWG 24
Wire cross-section, AWG, max.	AWG 12

Rated data acc. to UL 1059

Rated voltage (Use group B / UL 1059)	300 V
Rated voltage (Use group D / UL 1059)	300 V
Rated current (Use group B / UL 1059)	20 A
Rated current (Use group D / UL 1059)	10 A
Wire cross-section, AWG, min.	AWG 24
Wire cross-section, AWG, max.	AWG 12

Packing

Packaging	Box
VPE length	338 mm
VPE width	130 mm
VPE height	27 mm

Type tests

Test: Durability of markings	Standard: IEC 61984 section 6.2 and 7.3.2 / 10.11 Test: mark of origin, type identification, approval marking UL, approval marking CSA, durability Evaluation: available
Test: Clampable cross section	Standard: IEC 60947-7-4 sections 7.1.2 and 9.3.2 / 01.19 Conductor type: Type of conductor and conductor cross-section: solid 0.2 mm² Type of conductor and conductor cross-section: stranded 0.2 mm² Type of conductor and conductor cross-section: solid 2.5 mm² Type of conductor and conductor cross-section: AWG 12/7 Type of conductor and conductor cross-section: AWG 24/11 Evaluation: passed
Test for damage to and accidental loosening of conductors	Standard: IEC 60999-1 section 9.4 / 11.99 Requirement: 0.2 kg Conductor type: Type of conductor and conductor cross-section: solid 0.2 mm² Type of conductor and conductor cross-section: stranded 0.2 mm² Type of conductor and conductor cross-section: AWG 24/11 Evaluation: passed Requirement: 0.7 kg Conductor type: Type of conductor and conductor cross-section: solid 2.5 mm² Evaluation: passed Requirement: 0,9 kg Conductor type: Type of conductor and conductor cross-section: AWG 12/7
Pull-out test	Standard: IEC 60999-1 section 9.5 / 11.99 Requirement: ≥10 N Conductor type: Type of conductor and conductor cross-section: solid 0.2 mm² Type of conductor and conductor cross-section: stranded 0.2 mm² Type of conductor and conductor cross-section: AWG 24/11 Evaluation: passed Requirement: ≥50 N Conductor type: Type of conductor and conductor cross-section: solid 2.5 mm² Evaluation: passed Requirement: ≥ 60 N Conductor type: Type of conductor and conductor cross-section: AWG 12/7

Important note

IPC conformity

Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.

Notes

Additional variants on request

Rated current related to rated cross-section & min. No. of poles.

Wire end ferrule without plastic collar to DIN 46228/1

Wire end ferrule with plastic collar to DIN 46228/4

P on drawing = pitch

Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.

The test point can only be used as potential-pickup point.

Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months
