MCZ R 24VDC 1NO TRAK
Illustrazione del prodotto
Come da figura
MCZ R 24VDC 1NO TRAK

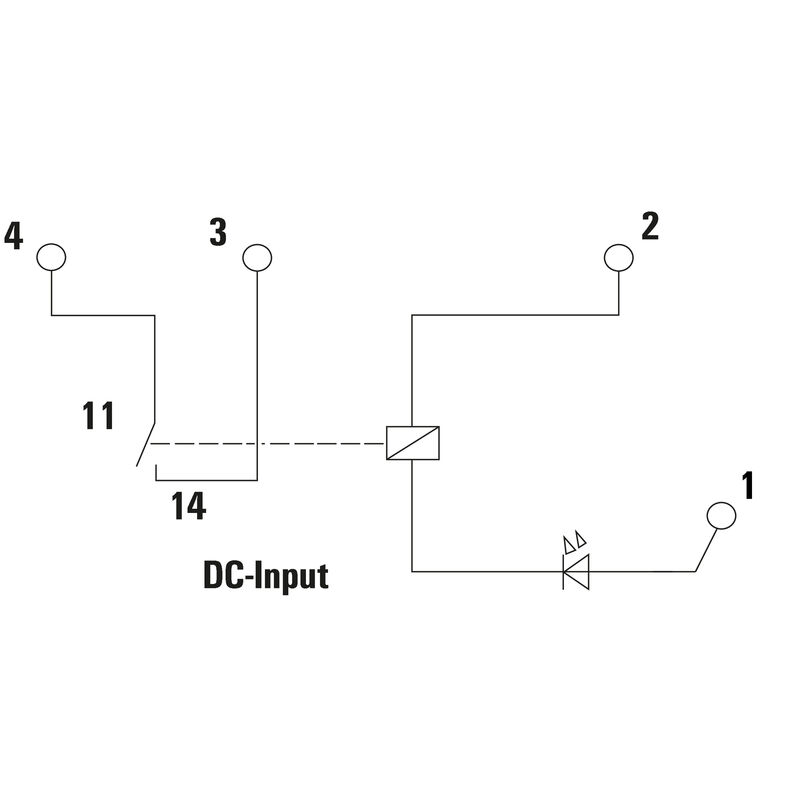

Schema elettrico
MCZ R 24VDC 1NO TRAK
Graph
Curva limite di carico DC
MCZ R 24VDC 1NO TRAK
Graph
Curva di carico
MCZ R 24VDC 1NO TRAK
Dimensional drawing

MCZ R 24VDC 1NO TRAK

Dit product is binnenkort niet meer beschikbaar.

Last order date: /Date(1793314800000)/

Alternative product: 2773940000

MCZ-SERIES TRAK, Relay module, Number of contacts: 1, NO contact AgSnO, Rated control voltage: 24 V DC +25 % / -30 %, Continuous current: 6 A, Tension-clamp connection, Test button available: No

Product ID 8499550000
Openen in configurator
Gegevensblad downloaden Engineeringondersteuning Productdownloads
Toebehoren 18 Verwante producten 5
Approvals General ordering data Dimensions and weights Hőmérsékletek Environmental Product Compliance Control side Load side General data Insulation coordination Connection data Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Version
MCZ-SERIES TRAK, Relay module, Number of contacts: 1, NO contact AgSnO, Rated control voltage: 24 V DC +25 % / -30 %, Continuous current: 6 A, Tension-clamp connection, Test button available: No
Order No.
8499550000
Type
MCZ R 24VDC 1NO TRAK
GTIN (EAN)
4032248110353
Qty.
10 items
Leveransstatus
This article will no longer be available in the future.
Last order date
/Date(1793314800000)/
Alternative product
[2773940000](~/p/2773940000)

Dimensions and weights

Depth
63,2 mm
Depth (inches)
2,488 inch
Height
91 mm
Height (inches)
3,583 inch
Width
6,1 mm
Width (inches)
0,24 inch
Net weight
25 g

Hőmérsékletek

Tárolási hőmérséklet
-40 °C...85 °C
Temperatura ambiente
-25 °C…70 °C
Humidity
95 % for 30 days, minimal condensation to EN 50155
Note: room temperature (service)
+85 °C for 10 minutes

Environmental Product Compliance

Состояние соответствия RoHS
Compliant with exemption
RoHS 면제(해당되거나 알려진 경우)
7a, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
35d83707-6a3b-45b5-b9f8-6ba8184c863e

Control side

Rated control voltage
24 V DC +25 % / -30 %
Rated current DC
11.5...16.5 mA
Power rating
195...500 mW
Statusanzeige
Green LED
Protective circuit
Free-wheeling diode
Varistor
Reverse polarity protection
Max. reset time after voltage interruption
10 ms

Load side

Rated switching voltage
250 V AC
Continuous current
6 A
Max. switching frequency at rated load
0,1 Hz
Max. switching voltage, AC
250 V
Max. switching voltage, DC
250 V
Min. switching power
100 mA @ 12 V
Inrush current
6 A
AC switching capacity (resistive), max.
1500 VA
DC spínací výkon (odporový), max.
120 W @ 24 V
Switch-on delay
<11 ms
Switch-off delay
<50 ms
Contact type
1 NO contact (AgSnO)
Mechanical service life
10 x 106 switching cycles

General data

Version
for railway applications
Mounting rail
TS 35
Test button available
No
Mechanical switch position indicator
No
Open sides
right
Colour
beige
Komponent s klasifikací hořlavosti UL 94
  • Komponent:
    Housing
  • UL94 flammability rating:
    V-0

Insulation coordination

Märkspänning
300 V
Nedsmutsningsgrad
2
Överspänningskategori
III
Геометрический зазор (вход-выход)
≥ 5.5 mm
Dielectric strength for control side - load side
4 kVeff / 1 s
Dielectric strength to mounting rail
4 kVeff / 1 Min.
Impulse withstand voltage
4 kV (1.2/50 µs)
Protection degree
IP20

Connection data

Wire connection method
Tension-clamp connection
Stripping length, rated connection
8 mm
Clamping range, rated connection
1,5 mm²
Clamping range, min.
0,5 mm²
Upínací rozsah, max.
1,5 mm²
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section AWG, max.
AWG 16
Leiteranschlussquerschnitt, eindrähtig, min.
0,5 mm²
Wire cross-section, solid, max.
1,5 mm²
Wire cross-section, solid, min. (AWG)
AWG 26
Sección de conexión del conductor, rígido, máx. (AWG)
AWG 16
Sezione di collegamento cavo, flessibile, min.
0,5 mm²
Sezione di collegamento cavo, flessibile, max.
1,5 mm²
Wire cross-section, finely stranded, min. (AWG)
AWG 26
Wire cross-section, finely stranded, max. (AWG)
AWG 16
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
1,5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), min.
0,5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), max.
1,5 mm²
Klingenmaß
0.6 x 3.5 mm

Classifications

ETIM 8.0
EC001437
ETIM 9.0
EC001437
ETIM 10.0
EC001437
ECLASS 14.0
27-37-16-01
ECLASS 15.0
27-37-16-01
