P 18/50 D02 SI SAKS5

P 18/50 D02 SI SAKS5

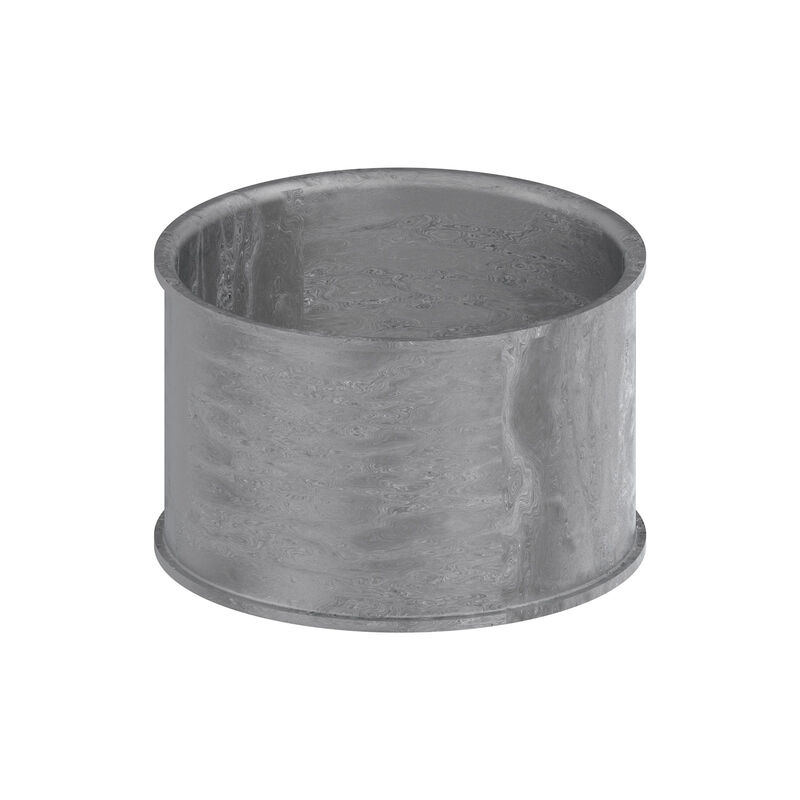

Fuse gauge ring (terminal), Height: 11 mm, Depth: 10.5 mm, Aluminium, silver

Cikkszám 0362100000
Download data sheet Product Downloads Engineering Support
Is accessory of 1 Related products 85
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications Additional technical data Dimensions General Rating data Classifications

Approvals

ROHS
Conform

General ordering data

Wersja
Fuse gauge ring (terminal), Height: 11 mm, Depth: 10.5 mm, Aluminium, silver
Nr zam.
0362100000
Type
P 18/50 D02 SI SAKS5
GTIN (EAN)
4008190081874
Qty.
50 items

Dimensions and weights

Głębokość
10,5 mm
Depth (inches)
0,413 inch
Wysokość
11 mm
Height (inches)
0,433 inch
Diameter
16,6 mm
Net weight
0,383 g

Temperatures

Temperatura otoczenia
-5 °C…40 °C

Environmental Product Compliance

Status zgodności z dyrektywą RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Basic material
Aluminium
Colour
silver

System specifications

Wykonanie
Fuse cartridge

Additional technical data

Installation advice
Direct mounting

Dimensions

Średnica
16,6 mm

General

Wskazówka montażowa
Direct mounting

Rating data

Nominal current
50 A

Classifications

ETIM 8.0
EC002848
ETIM 9.0
EC002848
ETIM 10.0
EC002848
ECLASS 14.0
27-25-03-90
ECLASS 15.0
27-25-03-90
