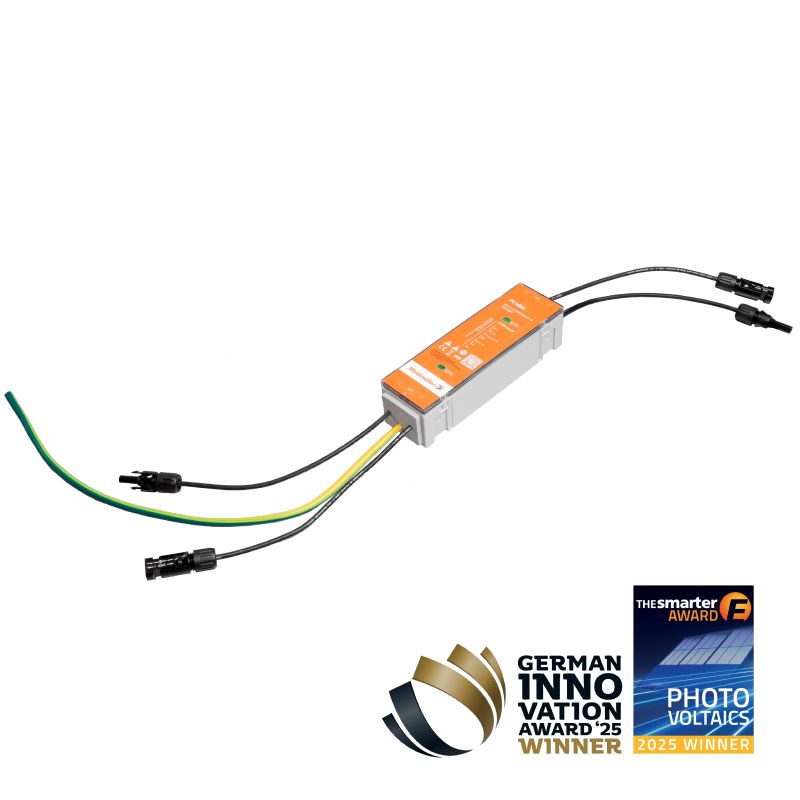

Photovoltaics, PV Inline, 1100 V, 1 MPP, 1 Input / 1 Output per MPP, Surge protection I / II, MC4

Tuotteen tunnus 3108220000
Lataa tietosivu Tekninen tuki Tuotelataukset
Lisävarusteet 3 Varaosat 2 Samankaltaiset tuotteet 2
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Included in delivery Guarantee Electrical characteristics Enclosure General data Inputs Outputs Surge protection DC side Classifications Tender specification sheets

Approvals

인증
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

버전
Photovoltaics, PV Inline, 1100 V, 1 MPP, 1 Input / 1 Output per MPP, Surge protection I / II, MC4
주문 번호
3108220000
유형
PVI DC 1I 1O 1MPP SPD1 MC4 10
GTIN (EAN)
4099987179775
Qty.
1 items

Dimensions and weights

깊이
52 mm
깊이 (인치)
2,047 inch
높이
280 mm
Height (inches)
11,024 inch
너비
60 mm
Width (inches)
2,362 inch
Net weight
658 g

Temperatures

Ambient temperature
-40 °C…85 °C
Humidity
5 - 95% rel. humidity

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

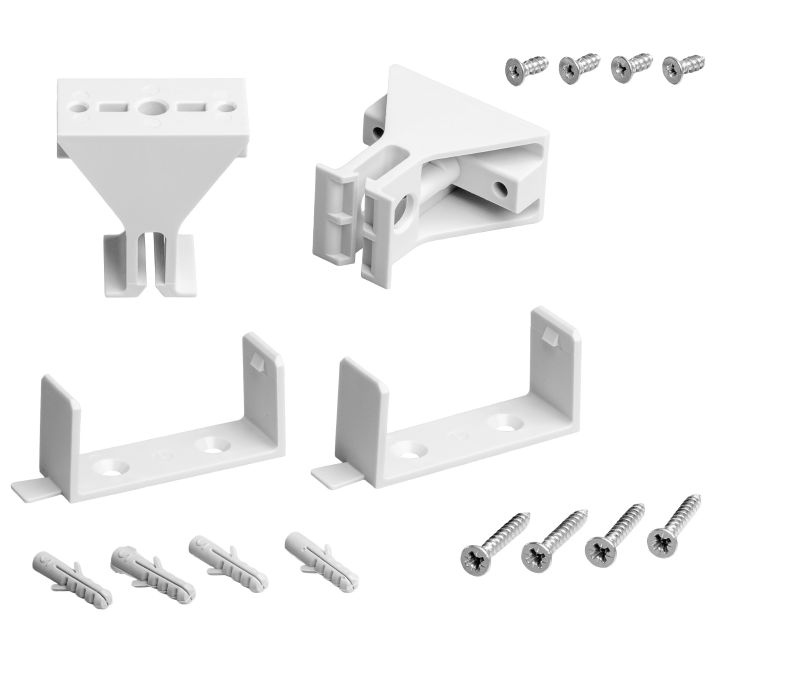

Included in delivery

포함된 액세서리
  • Article:
    Mounting foot
  • Quantity:
    2

Guarantee

시간 간격
5 years

Electrical characteristics

Current per Maximum Power Point, max.
39 A
Rated DC current per connection
  • Current per string, max.:
    39 A
Rated DC voltage
1 100 V
Rated short-term current resistance
  • Rated current:
    48,75 A

Enclosure

Connection type string
Plug MC4
Cover
with cover
Enclosure attachment
Via mounting foots
Impact resistance
IK06
Monteringstyp
Wall mounting
Protection class
II
Изоляционный материал
ABS

General data

Installation location
Indoor use
Protection degree
IP65
Standards
IEC 61643-31
EN 50539-11

Inputs

Amount of maximum power points (MPP)
1
Biztosíték típusa
Neither fuse cartridge nor holder
Entrada de CC + & -
  • Wire connection:
    • Type of connection:
      Stäubli MC4 connector
    • Compatible cable crossection:
      TÜV 2 Pfg1169/08.07
    • Wire cross-section, min.:
      4 mm²
    • Wire cross-section, max.:
      6 mm²
Functional earth connector
  • Wire connection:
    • Type of connection:
      Pre-assembled cable
    • Flexible, max. H05(07) V-K:
      16 mm²
    • w. wire end ferrule, DIN 46228 pt 1, max.:
      16 mm²
Numero di ingressi stringa per MPP
1
Numero massimo di ingressi DC
per Maximum Power Point 1 input
Number of inputs
1

Outputs

DC Output + & -
  • Wire connection:
    • Type of connection:
      Stäubli MC4 connector
    • Wire cross-section, min.:
      4 mm²
    • Wire cross-section, max.:
      6 mm²
Max. number of DC outputs
per Maximum Power Point 1 output

Surge protection DC side

Discharge current In (8/20 µs)
20 kA
Discharge current, max. (8/20 µs)
40 kA
Lightning test current Iimp (10/350 µs)
5 kA
Protection level Up (+/- , -/PE , +/PE)
≤ 4.4 kV
PV system voltage, max. Ucpv
1 100 V
Requirements class
Type I/II
Short-circuit curent ISCPV
6 000 A
Standards
IEC 61643-31
EN 50539-11
Surge protection DC side
1000 V type I + II
Total discharge current Itotal ( 8/20µs)
40 kA
Total discharge current Itotal (10/350µs)
5 kA

Classifications

ETIM 8.0
EC003857
ETIM 9.0
EC003857
ETIM 10.0
EC003857
ECLASS 14.0
22-57-02-92
ECLASS 15.0
22-57-02-92

Tender specification sheets

Long specification

Combiner box for inverters with 1 MPP tracker, suitable for protecting the DC side of a photovoltaic system according to DIN CLC/TS 51643-32.

MPP1:
1 input, connection via MC4 connector, compatible with cable type TÜV 2 Pfg1169/08.07 / EN 50618:2063
1 output, connection via MC4 connector, compatible with cable type TÜV 2 Pfg1169/08.07 / EN 50618:2063

Max. string voltage Uoc: 1100 VDC
1 class/type I + II combined arrester
Connection of the functional earth via pre-assembled cable, Conductor cross-section: 16 mm²
Protection class: IP65
All built into a polyester housing. Dimensions HxWxD: 280x60x52 mm

Approval according to low voltage switchgear and controlgear IEC 61439-1 and EN 61439-2
