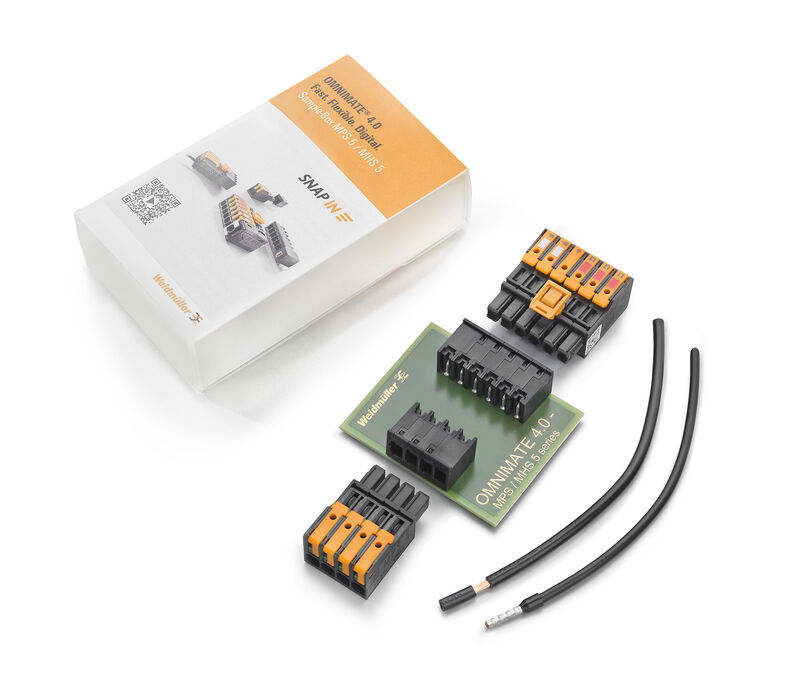

S-KIT OMNIMATE 4.0

S-KIT OMNIMATE 4.0

Sample kit

Item No. 2816650000
Download data sheet
Related products 43
General ordering data Dimensions and weights Environmental Product Compliance System Parameters Material data Conductors suitable for connection Rated data acc. to IEC Classifications Approvals

General ordering data

Version
Sample kit
Order No.
2816650000
Type
S-KIT OMNIMATE 4.0
GTIN (EAN)
4064675312857
Qty.
1  items
Packaging
Plastic box

Dimensions and weights

Depth
0  mm
Height
0  mm
Width
0  mm
Net weight
58.96  g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System Parameters

Wire connection method
SNAP IN
Number of poles
0
Pin series quantity
0
Protection degree
IP00

Material data

Colour
black
Colour chart (similar)
RAL 9011
Contact material
Cu-alloy
Contact surface
tinned
Operating temperature, min.
0  °C
Operating temperature, max.
0  °C

Conductors suitable for connection

Solid, min. H05(07) V-U
0  mm²
Solid, max. H05(07) V-U
0  mm²
Flexible, min. H05(07) V-K
0  mm²
Flexible, max. H05(07) V-K
0  mm²
w. wire end ferrule, DIN 46228 pt 1, min.
0  mm²
w. wire end ferrule, DIN 46228 pt 1, max.
0  mm²

Rated data acc. to IEC

Rated current, max. number of poles (Tu=20°C)
0  A
Rated current, min. number of poles (Tu=40°C)
0  A
Rated voltage for surge voltage class / pollution degree II/2
0  V
Rated voltage for surge voltage class / pollution degree III/2
0  V
Rated impulse voltage for surge voltage class/ pollution degree II/2
0  V
Rated impulse voltage for surge voltage class/ pollution degree III/2
0  kV

Classifications

ETIM 6.0
EC002637
ETIM 7.0
EC002637
ETIM 8.0
EC002637
ETIM 9.0
EC002637
ETIM 10.0
EC002637
ECLASS 9.0
27-44-04-02
ECLASS 9.1
27-44-04-02
ECLASS 10.0
27-44-04-02
ECLASS 11.0
27-46-02-01
ECLASS 12.0
27-46-02-01
ECLASS 13.0
27-46-02-01
ECLASS 14.0
27-46-02-01
ECLASS 15.0
27-46-02-01

Approvals

ROHS
Conform
