SAIFG-M14X1-B-1
Similar to illustration
SAIFG-M14X1-B-1

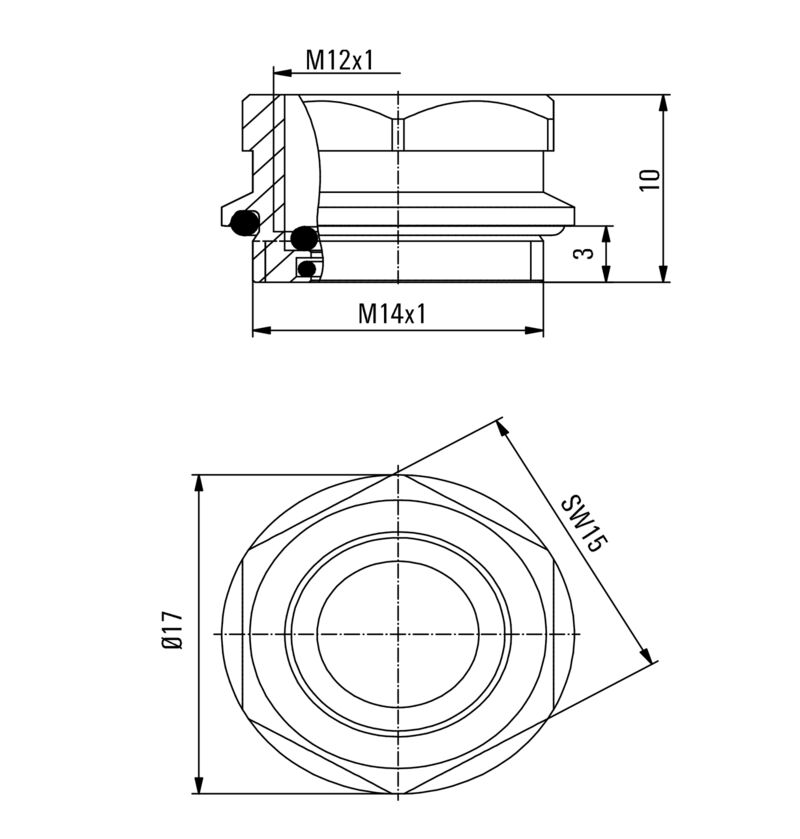

Dimensioned drawing

SAIFG-M14X1-B-1

내장형 플러그 하우징, M12 소켓, 설치 높이: 9 mm

Ürün No. 2423920000
Veri sayfasını indir Engineering Support Product Downloads
Aksesuarlar 1 aksesuarıdır 9 İlgili ürünler 4
Approvals Dati generali per l’ordinazione Dimensions and weights Termékek környezetvédelmi megfelelősége Technical data of PCB plug-in connector General Info System parameters Classifications

Approvals

ROHS
Conform

Dati generali per l’ordinazione

Version
내장형 플러그 하우징, M12 소켓, 설치 높이: 9 mm
Order No.
2423920000
Type
SAIFG-M14X1-B-1
GTIN (EAN)
4050118431803
Qty.
25 adet

Dimensions and weights

Net weight
5,7 g

Termékek környezetvédelmi megfelelősége

RoHS Compliance Status
Conforme con esenzione
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
0ea6d931-f9e9-40a6-89d9-8d67103189d3

Technical data of PCB plug-in connector

Coding
none
Housing surface
niquelado
Housings
M12 socket
Installation height
9 mm
Housing main material
CuZn
Connection thread
M12
Mounting thread
M 14
Seal material
FKM

General Info

Housing main material
CuZn
Connection thread
M12

System parameters

Pin series quantity
1

Classifications

ETIM 8.0
EC003556
ETIM 9.0
EC003556
ETIM 10.0
EC003556
ECLASS 14.0
27-44-02-24
ECLASS 15.0
27-44-02-24
