SAIL-M12BW-5-5.0T
SAIL-M12BW-5-5.0T
Dimensioned drawing
Angled socket
SAIL-M12BW-5-5.0T
Pole scheme
Socket
SAIL-M12BW-5-5.0T
Wiring diagram
SAIL-M12BW-5-5.0T
The ideal tool: Screwty ® with torque function
Light, securely screwed-in round plug-in connectors. Screwty set DM / VPE: 1 / Order No.: 1920000000 Adapters: M12, M12 F, M8, M8 F

SAIL-M12BW-5-5.0T

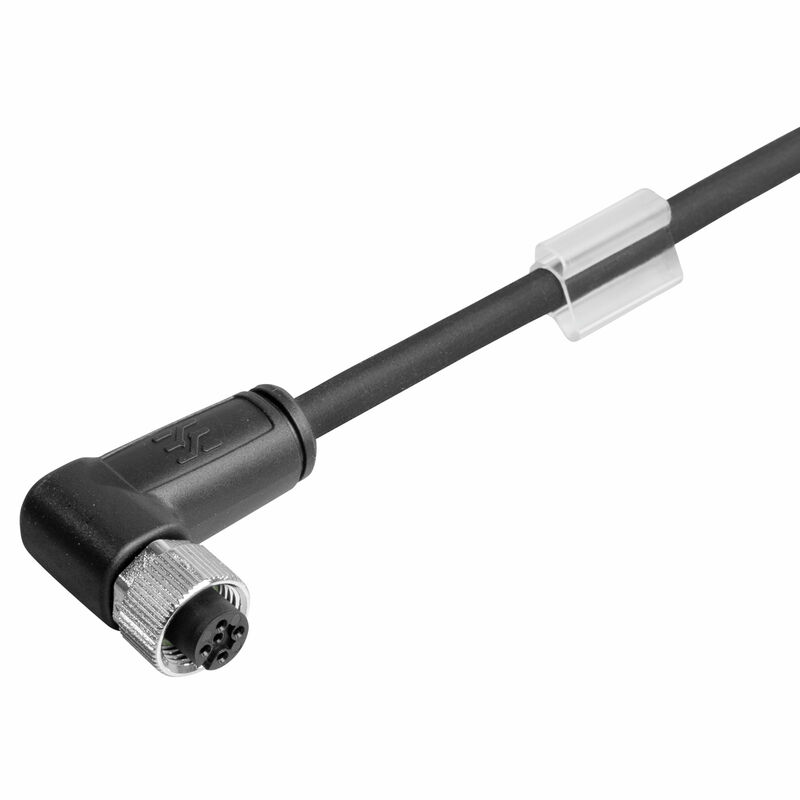

Sensor/actuator line, One end without connector, M12, Number of poles : 5, 5 m, Socket, angled, Shielded: No, LED: No, Sheath material: PUR, Halogen: No

ID výrobku 1021690500
Veri sayfasını indir Engineering-support Produktdownloads
Tilbehør 7 Anvendte produkter 4
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties General standards Standards Plug, left Plug, right Classifications

Approvals

Jóváhagyások
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E307231

General ordering data

Változat
Sensor/actuator line, One end without connector, M12, Number of poles : 5, 5 m, Socket, angled, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
N. d’ordine
1021690500
Típus
SAIL-M12BW-5-5.0T
GTIN (EAN)
4032248735273
Qty.
1 Styk

Dimensions and weights

Net weight
205 g

Environmental Product Compliance

RoHS 준수 상태
Compliant with exemption
Esenzione RoHS (se applicabile/nota)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Technical specifications for cable

Acceleration
5 m/s²
Aderquerschnitt
0,34 mm²
Anzahl der Adern
5
Bending radius, min., moving
10 x cable diameter
Cable length
5 m
Codage couleur
brown
white
blue
black
grey
Configurable cable length
No
Csavarási ellenállás
360 °/m
Geschirmt
No
Halogen
Non
Hegesztésnek ellenálló
Igen
Hybrid cable
아니요
Insulation
PP
Outer cladding in accordance with UL AWM style
20233 (80 °C / 300 V)
Outside diameter
5.1 mm ± 0.2 mm
Pólusok száma
5
Resistance to oils
in accordance with IEC 60811-2-1
Resistance to spread of flame
in accordance with IEC 60332-1
Reticulado por radiación
No
Schleppkettentauglichkeit
Yes
Sheath material
PUR
Sheathing colour
black
Speed
3,3 m/s
Temperature range, moving
-40...105 °C
Temperature range, stationary
-40...105 °C
Welding spark resistance
Yes

General technical data

AF size
12 mm
Coding
A-coded
Contact material
Copper alloy
Housing main material
PUR
Insulation resistance
108 Ω
jumpered
Нет
LED
Nej
Nominal current
4 A
Nominal voltage
60 V
Plugging cycles
≥ 100
Pollution severity
3
Powierzchnia styku
Gold-plated
Protection degree
IP65
IP66
IP67
IP68
when screwed in
Temperature range of housing
-25…+85 °C
Threaded ring material
Diecast zinc
Tightening torque
M12: 0.8 - 1.2 Nm
Version
Socket, angled
결선 나사산
M12

Electrical properties

Névleges feszültség
60 V
Szigetelési ellenállás
108 Ω

General standards

Certificate no. (cULus)
E307231
Connector standard
IEC 61076-2-101

Standards

Connector standard
IEC 61076-2-101

Plug, left

Plug left
M12, A-coded, Number of poles: 5, female contact, angled 0°, plug, unshielded

Plug, right

Plug right
Free conductor end

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
