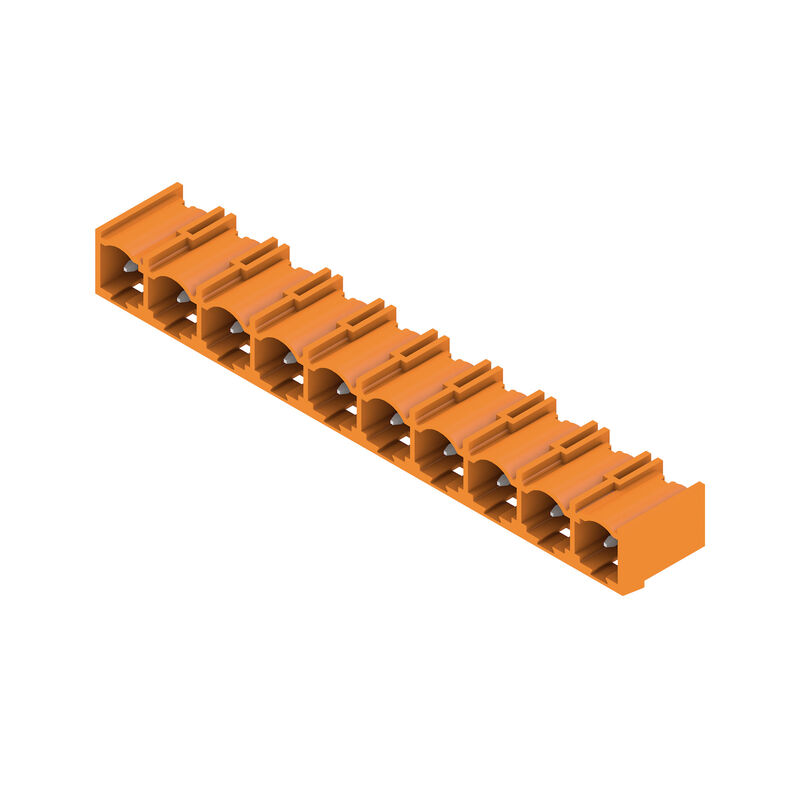

SL 7.62HP/10/270G 3.2SN OR BX
Product image
SL 7.62HP/10/270G 3.2SN OR BX
Product image
SL 7.62HP/10/270G 3.2SN OR BX
Dimensional drawing

SL 7.62HP/10/270G 3.2SN OR BX

Connettore per circuito stampato, Connettore maschio, chiuso lateralmente, Collegamento a saldare THT, 7.62 mm, Numero di poli: 10, 270°, Lunghezza spina a saldare (l): 3.2 mm, stagnato, arancione, Box

Produkt ID 1472570000
Download datablad Engineering Support Product Downloads
Tilbehør 2 Er et modstykke til 4 Anvendte produkter 22
Tanúsítványok Dati generali per l’ordinazione Dimensiones y pesos Temperatures Termékek környezetvédelmi megfelelősége Caractéristiques du système Material data Datos nominales conformes a IEC Rated data acc. to CSA Rated data acc. to UL 1059 Packing Важное примечание Classifications

Tanúsítványok

Schválení
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319230/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

Dati generali per l’ordinazione

Version
Connettore per circuito stampato, Connettore maschio, chiuso lateralmente, Collegamento a saldare THT, 7.62 mm, Numero di poli: 10, 270°, Lunghezza spina a saldare (l): 3.2 mm, stagnato, arancione, Box
Číslo objednávky
1472570000
Type
SL 7.62HP/10/270G 3.2SN OR BX
GTIN (EAN)
4050118317701
Qty.
50 Styk
Product data
IEC: 630 V / 27.5 A
UL: 300 V / 20 A
Packaging
Box

Dimensiones y pesos

Depth
11,75 mm
Profondità (pollici)
0,463 inch
Height
11,6 mm
Height (inches)
0,457 inch
Height of lowest version
8,4 mm
Width
75,38 mm
Width (inches)
2,968 inch
Net weight
6,3 g

Temperatures

Continuous operating temp., min.
-25 °C
Continuous operating temp., max.
100 °C

Termékek környezetvédelmi megfelelősége

Stav souladu se směrnicí RoHS
Megfelel, kivétel nélkül
REACH SVHC
No SVHC above 0.1 wt%
Produktspezifischer CO2-Fußabdruck
  • Cradle to gate:
    0,036 kg CO2 eq.

Caractéristiques du système

Product family
OMNIMATE Power - sorozat BL/SL 7.62HP
Type of connection
Board connection
Mounting onto the PCB
THT solder connection
Pitch in mm (P)
7,62 mm
Pitch in inches (P)
0,3 "
Outgoing elbow
270°
Number of poles
10
Number of solder pins per pole
1
Solder pin length (l)
3,2 mm
Solder pin dimensions
1.0 x 1.0 mm
Solder pin dimensions = d tolerance
+0,01 / -0,03 mm
Diámetro de la perforación (D)
1,4 mm
Solder eyelet hole diameter tolerance (D)
+ 0,1 mm
L1 en mm
68,58 mm
L1 in inches
2,7 "
Number of rows
1
Pin series quantity
1
Touch-safe protection acc. to DIN VDE 57 106
Safe from finger touch, plugged
Touch-safe protection acc. to DIN VDE 0470
IP20 plugged
Protection degree
IP10
Can be coded
Yes
Plugging cycles
25

Material data

Insulating material
PA GF
Colour
pomarańczowy
Colour chart (similar)
RAL 2000
Isolierstoffgruppe
II
Comparative Tracking Index (CTI)
≥ 500
UL 94 flammability rating
V-0
Contact material
Cu-alloy
Contact surface
tinned
Layer structure of solder connection
1...3 µm Ni / 2...4 µm Sn matt
Estructura de capas del contacto del conector
1...3 µm Ni / 2...4 µm Sn matt
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
100 °C
Temperature range, installation, min.
-25 °C
Temperature range, installation, max.
100 °C

Datos nominales conformes a IEC

testado según la norma
IEC 60664-1
IEC 61984
Rated current, min. number of poles (Tu=20°C)
27,5 A
Rated current, max. number of poles (Tu=20°C)
27,5 A
Rated current, min. number of poles (Tu=40°C)
25 A
Bemessungsstrom, max. Polzahl (Tu=40°C)
22 A
Rated voltage for surge voltage class / pollution degree II/2
630 V
Rated voltage for surge voltage class / pollution degree III/2
500 V
Rated voltage for surge voltage class / pollution degree III/3
400 V
Tensión nominal con categoría de sobretensión/grado de polución II/2
6 kV
Tensión nominal con categoría de sobretensión/grado de polución III/2
6 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3
6 kV
Short-time withstand current resistance
3 x 1s with 180 A
Kriechstrecke, min.
8,1 mm
Luftstrecke, min.
6,5 mm

Rated data acc. to CSA

Rated voltage (Use group B / CSA)
300 V
Rated voltage (Use group C / CSA)
300 V
Rated voltage (Use group D / CSA)
600 V
Rated current (Use group B / CSA)
20 A
Rated current (Use group C / CSA)
20 A
Rated current (Use group D / CSA)
5 A

Rated data acc. to UL 1059

Institute (cURus)
CURUS
Certificate No. (cURus)
E60693
Rated voltage (Use group B / UL 1059)
300 V
Rated voltage (Use group C / UL 1059)
300 V
Tensión nominal (Use Group D / UL 1059)
600 V
Intensidad nominal (Use Group B / UL 1059)
20 A
Rated current (Use group C / UL 1059)
20 A
Rated current (Use group D / UL 1059)
5 A
Clearance distance, min.
6,5 mm
Creepage distance, min.
11,2 mm
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Packing

Packaging
Boîte
VPE length
127 mm
VPE width
82 mm
VPE height
64 mm

Важное примечание

IPC-Konformität
Konformitet: Produkterna utvecklas, tillverkas och levereras i enlighet med internationellt erkända standarder och normer, och uppfyller de egenskaper som garanteras i databladet resp. har designegenskaper i enlighet med IPC-A-610 "Klass 2". Övriga anspråk gällande produkterna kan bedömas på begäran.
Hinweise
  • Additional variants on request
  • Gold-plated contact surfaces on request
  • Rated current related to rated cross-section & min. No. of poles.
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002637
ETIM 9.0
EC002637
ETIM 10.0
EC002637
ECLASS 14.0
27-46-02-01
ECLASS 15.0
27-46-02-01
