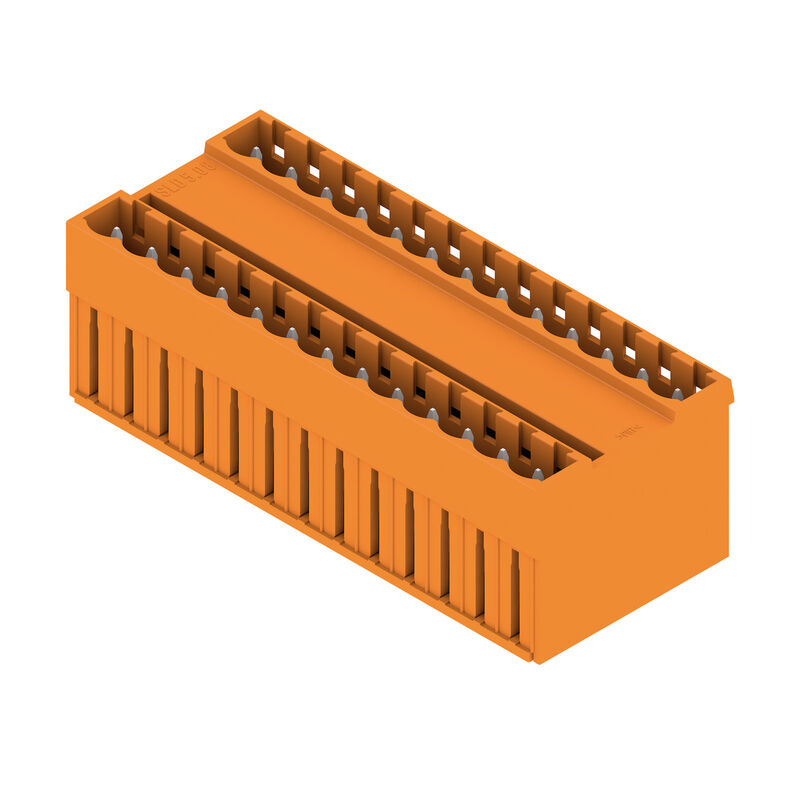

Product image
SLD 5.08/26/180G 3.2SN OR BX

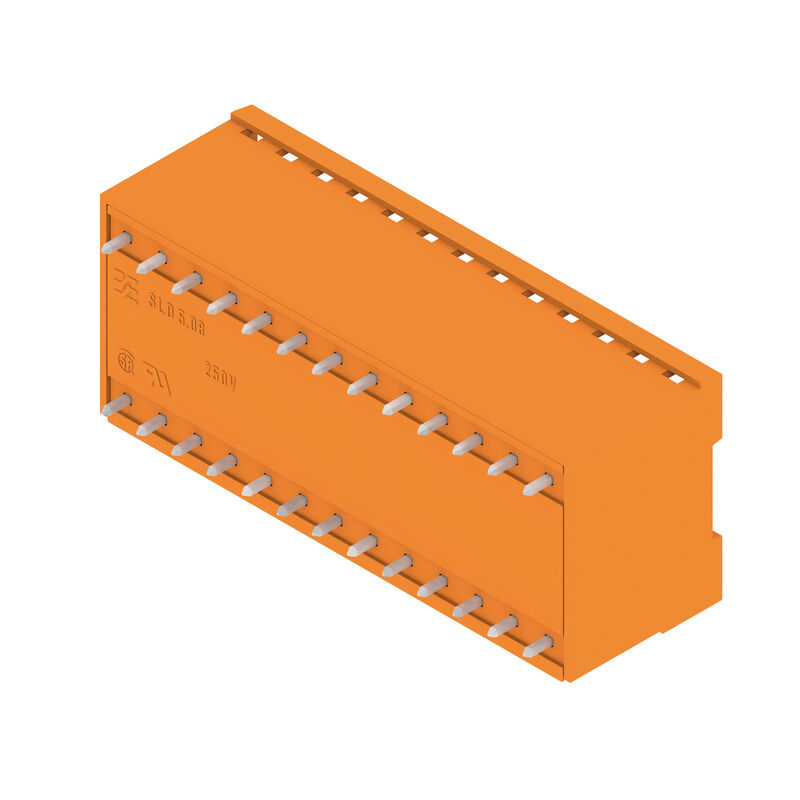

Product image
SLD 5.08/26/180G 3.2SN OR BX
Dimensional drawing

SLD 5.08/26/180G 3.2SN OR BX

Dit product is niet meer beschikbaar.

PCB plug-in connector, male header, closed side, THT solder connection, 5.08 mm, Number of poles: 26, 180°, Solder pin length (l): 3.2 mm, tinned, orange, Box

Product ID 1602500000
Gegevensblad downloaden Engineeringondersteuning Productdownloads
Toebehoren 4 Verwante producten 12
Approvals General ordering data Dimensions and weights Environmental Product Compliance System specifications Material data Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Packing Important note Classifications

Approvals

Omologazioni
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/70d4994d-1e1f-4a62-8b8a-96bcbd57aca3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
인증 번호(UR)
E60693

General ordering data

Versione
PCB plug-in connector, male header, closed side, THT solder connection, 5.08 mm, Number of poles: 26, 180°, Solder pin length (l): 3.2 mm, tinned, orange, Box
N. d’ordine
1602500000
Tipo
SLD 5.08/26/180G 3.2SN OR BX
GTIN (EAN)
4008190019808
수량
10 items
Product data
IEC: 320 V / 11 A
UL: 300 V / 10 A
Packaging
Box
Delivery status
This article will no longer be available in the future.
Last order date
/Date(1793401200000)/

Dimensions and weights

Profondità
28,65 mm
Depth (inches)
1,128 inch
Posizione verticale
22 mm
Height (inches)
0,866 inch
Height of lowest version
22 mm
Larghezza
68 mm
Width (inches)
2,677 inch
Масса нетто
25,95 g

Environmental Product Compliance

Stato conformità RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System specifications

Product family
OMNIMATE Signal - series BL/SL 5.08
Type of connection
Board connection
Mounting onto the PCB
THT solder connection
Pitch in mm (P)
5,08 mm
Rozteč v palcích (P)
0,2 "
Výstupní tvarovka
180°
Number of poles
26
Počet pájených kolíků na pól
1
Solder pin length (l)
3,2 mm
Solder pin length tolerance
+0.1 / -0.3 mm
Solder pin dimensions
d = 1.2 mm
Octagonal
Solder pin dimensions = d tolerance
0 / -0,03 mm
Solder eyelet hole diameter (D)
1,3 mm
Solder eyelet hole diameter tolerance (D)
+ 0,1 mm
L1 в мм
60,96 mm
L1 in inches
2,4 "
Number of rows
2
Pin series quantity
2
Touch-safe protection acc. to DIN VDE 57 106
finger-safe unplugged/ back-of-hand-safe plugged
Touch-safe protection acc. to DIN VDE 0470
IP20 plugged/ IP10 unplugged
Protection degree
IP20
Volume resistance
≤5 mΩ
Can be coded
Yes
Plugging cycles
25

Material data

Изоляционный материал
PBT
Barwny
orange
Tabela kolorów (podobny)
RAL 2000
grupa materiałów izolacyjnych
IIIa
Comparative Tracking Index (CTI)
≥ 200
UL 94 flammability rating
V-0
Materiał styków
Cu-alloy
Powierzchnia styku
tinned
Layer structure of solder connection
1...3 µm Ni / 2...4 µm Sn matt
Структура слоев штепсельного контакта
1...3 µm Ni / 2...4 µm Sn matt
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
100 °C
Temperature range, installation, min.
-25 °C
Temperature range, installation, max.
100 °C

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Номинальный ток, мин. кол-во контактов (Tu = 20 °C)
11 A
Prąd znamionowy, maks. liczba biegunów (Tu=20°C)
8,5 A
Prąd znamionowy, min. liczba biegunów (Tu=40°C)
11 A
Prąd znamionowy, maks. liczba biegunów (Tu=40°C)
7 A
Rated voltage for surge voltage class / pollution degree II/2
320 V
Rated voltage for surge voltage class / pollution degree III/2
250 V
Номинальное импульсное напряжение при категории помехозащищенности/Категория загрязнения III/3
250 V
Rated impulse voltage for surge voltage class/ pollution degree II/2
400 V
Rated impulse voltage for surge voltage class/ pollution degree III/2
4 kV
znamionowe napięcie udarowe przy kat. przepięć/stopniu zanieczyszczenia III/3
4 kV
단시간 내전류 저항
1 x 1s with 120 A

Rated data acc. to CSA

Institute (CSA)
CSA
Certificate No. (CSA)
200039-1121690
Rated voltage (Use group B / CSA)
300 V
Jmenovité napětí (aplikační skupina D / CSA)
300 V
Jmenovitý proud (aplikační skupina B / CSA)
10 A
Jmenovitý proud (aplikační skupina D / CSA)
10 A
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

Institute (UR)
UR
Certificate No. (UR)
E60693
Rated voltage (Use group B / UL 1059)
300 V
Rated voltage (Use group D / UL 1059)
300 V
Rated current (Use group B / UL 1059)
10 A
Rated current (Use group D / UL 1059)
10 A
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Packing

Packaging
Box
VPE length
1 mm
VPE width
1 mm
VPE height
1 mm

Important note

Conformità IPC
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Note
  • Additional variants on request
  • Rated current related to rated cross-section & min. No. of poles.
  • Spacing between rows: see hole layout
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002637
ETIM 9.0
EC002637
ETIM 10.0
EC002637
ECLASS 14.0
27-46-02-01
ECLASS 15.0
27-46-02-01
