SV 7.62HP/05/90MSF4 SC/06R SN BK BX

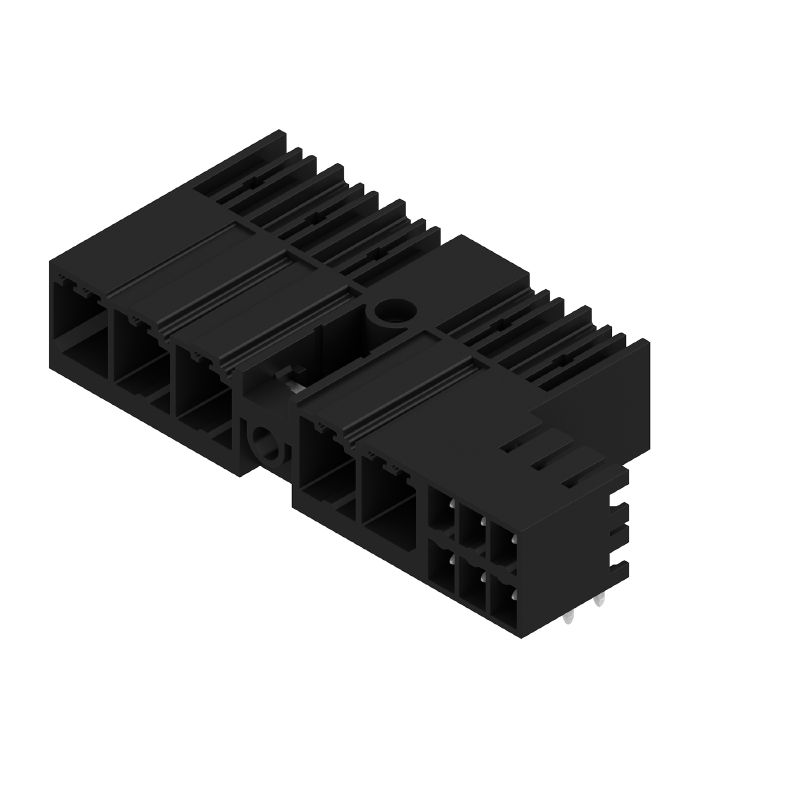

Product image
SV 7.62HP/05/90MSF4 SC/06R SN BK BX

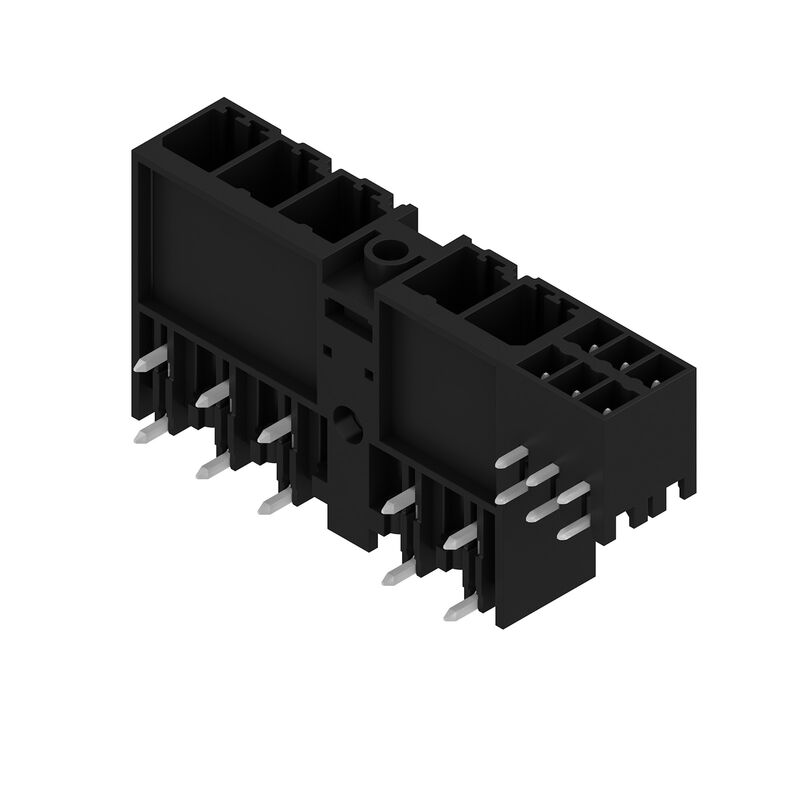

Product image
SV 7.62HP/05/90MSF4 SC/06R SN BK BX

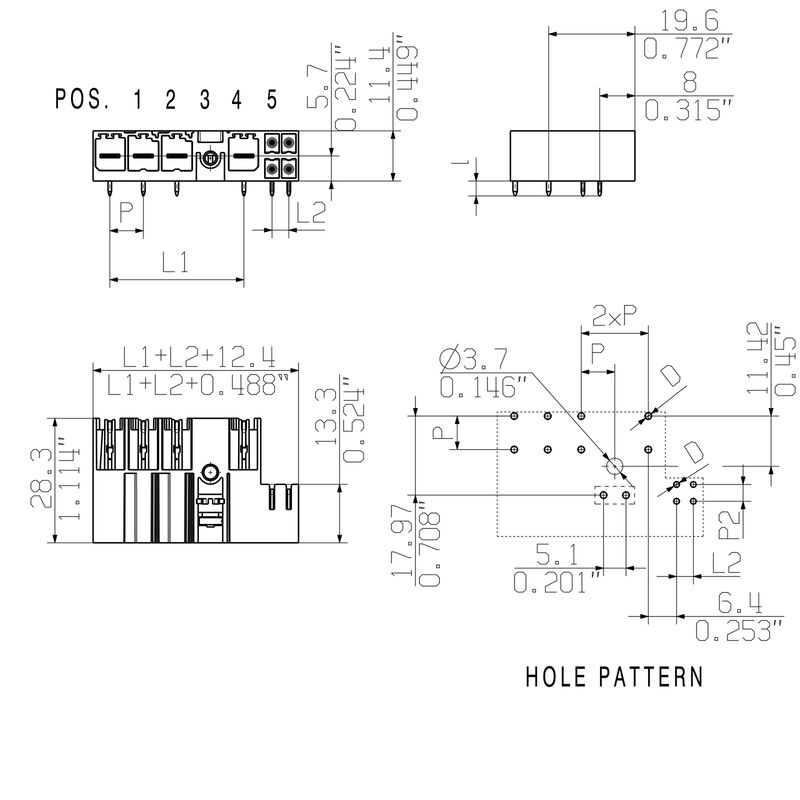

Connection diagram
SV 7.62HP/05/90MSF4 SC/06R SN BK BX
Connection diagram

SV 7.62HP/05/90MSF4 SC/06R SN BK BX

Штекерный соединитель печатной платы, Штырьковый соединитель, с боковой стороны закрыто, Центральный фланец на винтах, Соединение THT под пайку, 7.62 mm, Количество полюсов: 5, 90°, Длина штифта для припайки (l): 3.5 mm, луженые, черный, Ящик

Tuotteen tunnus 1090900000
Lataa tietosivu Tekninen tuki Tuotelataukset
Lisävarusteet 1 On vastine kohteelle 2 Samankaltaiset tuotteet 18
Omologazioni Основные данные для заказа Размеры и массы Conformità ambientale del prodotto Системные характеристики 材料データ Névleges adatok IEC szerint Dati di dimensionamento secondo CSA Rated data acc. to UL 1059 패키징 기술 데이터 Important note Classifications

Omologazioni

Homologaciones
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Núm. de certificación (cURus)
E60693

Основные данные для заказа

Versión
Штекерный соединитель печатной платы, Штырьковый соединитель, с боковой стороны закрыто, Центральный фланец на винтах, Соединение THT под пайку, 7.62 mm, Количество полюсов: 5, 90°, Длина штифта для припайки (l): 3.5 mm, луженые, черный, Ящик
Código
1090900000
Tipo
SV 7.62HP/05/90MSF4 SC/06R SN BK BX
GTIN (EAN)
4032248860203
Cantidad
30 items
Product data
IEC: 1000 V / 41 A
UL: 300 V / 35 A
Packaging
Box

Размеры и массы

Profundidad
28,3 mm
Profundidad (pulgadas)
1,114 inch
Altura
14,9 mm
Altura (pulgadas)
0,587 inch
Height of lowest version
11,4 mm
Anchura
58,12 mm
Width (inches)
2,288 inch
Peso neto
8,35 g

Conformità ambientale del prodotto

Estado de cumplimiento de la directiva RoHS
Conforme senza esenzione
REACH SVHC
No SVHC above 0.1 wt%

Системные характеристики

Produktfamilie
OMNIMATE Power — серия BV/SV 7.62HP
Anschlussart
Board connection
Montage auf der Leiterplatte
THT solder connection
Raster in mm (P)
7,62 mm
Pitch in inches (P)
0,3 "
Outgoing elbow
90°
Number of poles
5
Number of solder pins per pole
2
Lötstiftlänge (l)
3,5 mm
Tolerancia de longitud del pin de soldadura
+0.1 / -0.3 mm
Dimensiones del pin de soldadura
0.8 x 1.0 mm
Solder eyelet hole diameter (D)
1,4 mm
Solder eyelet hole diameter tolerance (D)
+ 0,1 mm
L1 in mm
38,1 mm
L1 in inches
1,5 "
L2 in mm
7,62 mm
L2 en pulgadas
0,3 "
Número de series
1
Pin series quantity
1
Touch-safe protection acc. to DIN VDE 57 106
safe to back of hand above the printed circuit board
Touch-safe protection acc. to DIN VDE 0470
IP 20
Volume resistance
2.00 mΩ
Can be coded
Yes
Tightening torque for screw flange, min.
0,2 Nm
Par de apriete para sujeción por tornillo, máx.
0,3 Nm
Plugging cycles
25
Plugging force/pole, max.
12 N
Pulling force/pole, max.
7 N

材料データ

Materiales aislantes
PA GF
Color
black
Carta de colores (similar)
RAL 9011
Grupo de materiales aislantes
I
Índice de resistencia al encaminamiento eléctrico (CTI)
≥ 600
UL 94 flammability rating
V-0
Material de contacto
Cu-alloy
Superficie de contacto
tinned
Estructura de capas de la conexión por soldadura
1...3 µm Ni / 4...6 µm Sn matt
Estructura de capas del contacto del conector
1...3 µm Ni / 4...6 µm Sn matt
Storage temperature, min.
−40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
−50 °C
Operating temperature, max.
130 °C
Temperature range, installation, min.
−25 °C
Temperature range, installation, max.
130 °C

Névleges adatok IEC szerint

szabvány szerint tesztelve
IEC 60664-1
IEC 61984
Corriente nominal, número de polos mín. (Tu=20 °C)
41 A
Corriente nominal, número de polos máx. (Tu=20 °C)
41 A
Corriente nominal, número de polos mín. (Tu=40 °C)
41 A
Corriente nominal, número de polos máx. (Tu=40 °C)
41 A
Tensión nominal con categoría de sobretensión/grado de polución II/2
1 000 V
Tensión nominal con categoría de sobretensión/grado de polución III/2
630 V
Tensión nominal con categoría de sobretensión/grado de polución III/3
630 V
Tensión nominal con categoría de sobretensión/grado de polución II/2
6 kV
Tensión nominal con categoría de sobretensión/grado de polución III/2
6 kV
Sobretensión de choque nominal con categoría de sobretensión/grado de polución III/3
6 kV
Resistencia a corrientes de corta duración
3 x 1s with 420 A

Dati di dimensionamento secondo CSA

Institute (CSA)
CSA
Certificate No. (CSA)
200039-1121690
Rated voltage (Use group B / CSA)
300 V
Rated voltage (Use group C / CSA)
300 V
Tensión nominal (Use group D / CSA)
600 V
Intensidad nominal (Use Group B / CSA)
33 A
Intensidad nominal (Use Group C / CSA)
33 A
Intensidad nominal (Use Group D / CSA)
5 A
Referencia para valores de homologación
Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

Institut (cURus)
CURUS
Certificate No. (cURus)
E60693
Rated voltage (Use group B / UL 1059)
300 V
Rated voltage (Use group C / UL 1059)
300 V
Rated voltage (Use group D / UL 1059)
600 V
Nennstrom (Use group B / UL 1059)
35 A
Nennstrom (Use group C / UL 1059)
33 A
Rated current (Use group D / UL 1059)
5 A
Clearance distance, min.
6,9 mm
Creepage distance, min.
9,6 mm
Reference to approval values
Specifications are maximum values, details - see approval certificate.

패키징

Packaging
박스
VPE length
350 mm
VPE width
142 mm
VPE height
42 mm

기술 데이터

Pitch in mm (hybrid)
  • znamionowy:
    3,81 mm
  • Element hybrydowy:
    Signal
Paso en mm (señal)
3.81 mm
Pitch in inch (hybrid)
  • nominal:
    0,15 "
  • Hybrid component:
    Signal
Paso en pulgadas (Señal)
0.15 "
Polzahl (Hybrid)
  • nominal:
    6
  • Hybrid component:
    Signal
Number of poles (Signal)
6
Anzahl Lötstifte pro Pol (Hybrid)
  • Hybrid component:
    Signal
  • nominal:
    1
Number of solder pins per pole (Signal)
1
Solder pin dimensions (hybrid)
  • Solder pin dimensions:
    0.8 x 0.8 mm
  • Hybrid component:
    Signal
Solder pin dimensions (Signal)
0.8 x 0.8 mm
Solder pin dimensions = d tolerance (hybrid)
  • Solder pin dimensions = d tolerance:
    • Lower tolerance with prefix (reveals minimum):
      -0,03
    • Upper tolerance with prefix (reveals maximum):
      +0,01
    • Tolerance, unit:
      mm
  • Hybrid component:
    Signal
Solder pin dimensions = d tolerance (Signal)
-0,03 / +0,01 mm
Diameter of solder eyelet (hybrid)
  • Hybrid component:
    Signal
  • nominal:
    1,3 mm
PCB hole diameter (Signal)
1.3 mm
Tolerance průměru pájecího očka (hybrid)
  • Hybrid component:
    Signal
  • Solder eyelet hole diameter tolerance (D):
    ± 0.1 mm
  • Solder eyelet hole diameter tolerance (D):
    + 0,1 mm
PCB hole diameter tolerance (Signal)
± 0.1 mm
L2 in mm
7,62 mm
L2 in inch
0,3 "
Number of rows (hybrid)
  • Hybrid component:
    Signal
Number of rows (Signal)
2
Contact material (hybrid)
  • Hybrid component:
    Signal
  • Contact material:
    CuMg
Contact material (Signal)
CuMg
Kontaktoberfläche (Hybrid)
  • Hybrid component:
    Signal
  • Contact surface:
    tinned
Contact surface (Signal)
tinned
Layer structure of the solder connection (hybrid)
  • Layer structure of the solder connection:
    • Material:
      Ni
    • Layer strength:
      • min.:
        1 µm
      • max.:
        3 µm
    • Material:
      Sn
    • Layer strength:
      • min.:
        4 µm
      • max.:
        8 µm
  • Hybrid component:
    Signal
Layer structure of the solder connection (Signal)
1-3 µm Ni / 4-8 µm Sn
Layer structure of the plug contact (hybrid)
  • Layer structure of the plug contact:
    • Material:
      Ni
    • Layer strength:
      • min.:
        1 µm
      • max.:
        3 µm
    • Material:
      Sn
    • Layer strength:
      • min.:
        4 µm
      • max.:
        8 µm
  • Hybrid component:
    Signal
Layer structure of the plug contact (Signal)
1-3 µm Ni / 4-8 µm Sn
Rated voltage for overvoltage class / pollution severity level II/2 (hybrid)
  • Hybrid component:
    Signal
  • nominal:
    320 V
Rated voltage for overvoltage class/pollution severity level II/2 (Signal)
320 V
Rated voltage for overvoltage class / pollution severity level III/2 (hybrid)
  • Hybrid component:
    Signal
  • nominal:
    160 V
Rated voltage for overvoltage class/pollution severity level III/2 (Signal)
160 V
Tensión nominal para clase de sobretensión / grado de polución III/3 (híbrido)
  • Hybrid component:
    Signal
  • nominal:
    160 V
Rated voltage for overvoltage class/pollution severity level III/3 (Signal)
160 V
Rated impulse voltage for overvoltage class / pollution severity level II/2 (hybrid)
  • Hybrid component:
    Signal
  • nominal:
    2,5 kV
Rated impulse voltage for overvoltage class/pollution severity level II/2 (Signal)
2.5 kV
Rated impulse voltage for overvoltage class / pollution severity level III/2 (hybrid)
  • Hybrid component:
    Signal
  • nominal:
    2,5 kV
Sobretensión de choque nominal para clase de sobretensión / grado de polución III/2 (Señal)
2.5 kV
Sobretensión de choque nominal para clase de sobretensión / grado de polución III/3 (híbrido)
  • Hybrid component:
    Signal
  • nominal:
    2,5 kV
Rated impulse voltage for overvoltage class/pollution severity level III/3 (Signal)
2.5 kV
Rated current, number of poles (Tu=40°C) (hybrid)
  • Hybrid component:
    Signal
  • min.:
    12,7 A
Rated current, number of poles (Tu=20°C) (hybrid)
  • Hybrid component:
    Signal
  • min.:
    14,2 A
Short-time withstand current capacity (hybrid)
  • Short-time withstand current resistance:
    3 x 1s with 80 A
  • Hybrid component:
    Signal
Short-time withstand current resistance (Signal)
3 x 1s with 80 A
Distancia de fuga (híbrido)
  • Hybrid component:
    Signal
  • min.:
    4,38 mm
Clearance distance (hybrid)
  • Hybrid component:
    Signal
  • min.:
    3,6 mm
Rated voltage (Use group B / CSA) (Hybrid)
  • Hybrid component:
    Signal
  • nominal:
    300 V
Rated voltage (Use group B / CSA) (Signal)
300 V
Rated voltage (Use group C / CSA) (Hybrid)
  • Hybrid component:
    Signal
  • nominal:
    50 V
Rated voltage (Use group C / CSA) (Signal)
50 V
Rated current (Use group B / CSA) (Hybrid)
  • Hybrid component:
    Signal
  • nominal:
    9 A
Rated current (Use group B / CSA) (Signal)
9 A
Rated current (Use group C / CSA) (Hybrid)
  • Hybrid component:
    Signal
  • nominal:
    9 A
Rated current (Use group C / CSA) (Signal)
9 A
Rated current (Use group D / CSA) (Hybrid)
  • Hybrid component:
    Signal
  • nominal:
    9 A
Rated current (Use group D / CSA) (Signal)
9 A
Rated voltage (Use group B / UL 1059) (Hybrid)
  • Hybrid component:
    Signal
  • nominal:
    300 V
Rated voltage (Use group B / UL 1059] (Signal)
300 V
Rated voltage (Use group C / UL 1059) (Hybrid)
  • Hybrid component:
    Signal
  • nominal:
    50 V
Rated voltage (Use group C / UL 1059] (Signal)
50 V
Rated voltage (Use group D / UL 1059) (Hybrid)
  • Hybrid component:
    Signal
Rated current (Use group B / UL 1059) (Hybrid)
  • Hybrid component:
    Signal
  • nominal:
    5 A
Rated current (Use group B / UL 1059) (Signal)
5 A
Rated current (Use group C / UL 1059) (Hybrid)
  • Hybrid component:
    Signal
  • nominal:
    5 A
Rated current (Use group C / UL 1059) (Signal)
5 A
Rated current (Use group D / UL 1059) (Hybrid)
  • Hybrid component:
    Signal

Important note

Conformidad con IPC
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notas
  • Technical specifications refer to the power contacts
  • Technical data of signal contacts: 50V / 5A, stripping length 8mm
  • Rated current related to rated cross-section & min. No. of poles.
  • Specifications of diagram: P1=7.62 mm; P2=3.81 mm
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • MFX and MSFX: X= Position of the middle flange e.g. MF2, MSF3
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002637
ETIM 9.0
EC002637
ETIM 10.0
EC002637
ECLASS 14.0
27-46-03-01
ECLASS 15.0
27-46-03-01
