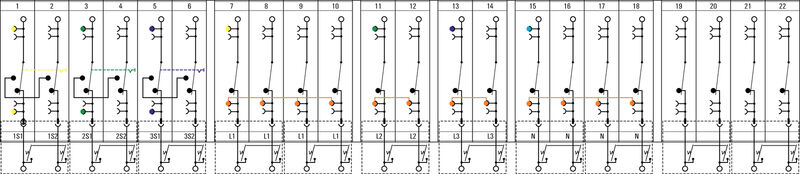

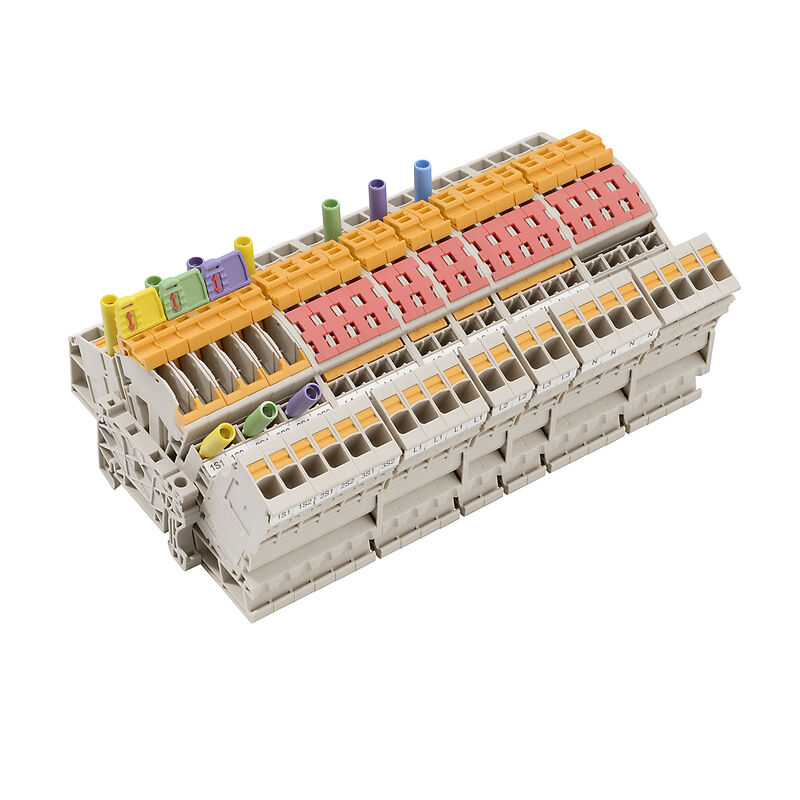

Measuring transformer disconnect terminal, PUSH IN, 30, 44

Produkt ID 8000120389
Download datablad Product Downloads
Anvendte produkter 20
General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications Additional technical data Conductors for clamping (additional connection) Conductors for clamping (rated connection) General Rating data Classifications

General ordering data

Version
Measuring transformer disconnect terminal, PUSH IN, 30, 44
Order No.
8000120389
Type
TABNSNORD22STECKBAR
GTIN (EAN)
4099986821682
Qty.
1 Styk

Dimensions and weights

Depth
71,3 mm
Depth (inches)
2,807 inch
Height
120,8 mm
Height (inches)
4,756 inch
Width
202,8 mm
Width (inches)
7,984 inch
Net weight
16.480 g

Temperatures

Continuous operating temp., min.
-60 °C
Continuous operating temp., max.
130 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant
REACH SVHC
No SVHC above 0.1 wt%

Material data

Basic material
Wemid
Colour
dark beige
Colour of operational elements
orange
Classe d'inflammabilité selon UL 94
V-0

System specifications

Требуется концевая пластина
No
Number of levels
1
Number of clamping points per level
44
Уровни с внутр. перемычками
No

Additional technical data

Open sides
closed
Snap-on
No
Type of mounting
Direct mounting

Conductors for clamping (additional connection)

Connection type, additional connection
pluggable

Conductors for clamping (rated connection)

10 mm²
Blade size
0.8 x 4.0 mm
Clamping range, min.
0,5 mm²
Connection cross-section, stranded, max.
6 mm²
Connection direction
top
Gauge to IEC 60947-1
A5
Number of connections
44
Průřez připojení vodiče, pevné jádro, max.
6 mm²
Průřez připojení vodiče, pevné jádro, min.
0,5 mm²
Průřez připojení vodičů, splétané, min.
0,5 mm²
Stripping length
12 mm
Type of connection
PUSH IN
Wire connection cross section AWG, max.
AWG 8
Wire connection cross section AWG, min.
AWG 22
Wire connection cross section, finely stranded, max.
10 mm²
Wire connection cross section, finely stranded, min.
0,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
10 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
6 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,5 mm²

General

Wire connection cross section AWG, max.
AWG 8
Wire connection cross section AWG, min.
AWG 22

Rating data

Rated cross-section
6 mm²
Номинальное напряжение
500 V
Rated DC voltage
500 V
Номинальный ток
30 A
Current at maximum wires
30 A
Volume resistance according to IEC 60947-7-x
0,78 mΩ
Rated impulse withstand voltage
6 kV
Power loss in accordance with IEC 60947-7-x
1,31 mW
Pollution severity
3
Surge voltage category
III

Classifications

ETIM 8.0
EC000902
ETIM 9.0
EC000902
ETIM 10.0
EC000902
ECLASS 14.0
27-25-01-09
ECLASS 15.0
27-25-01-09
