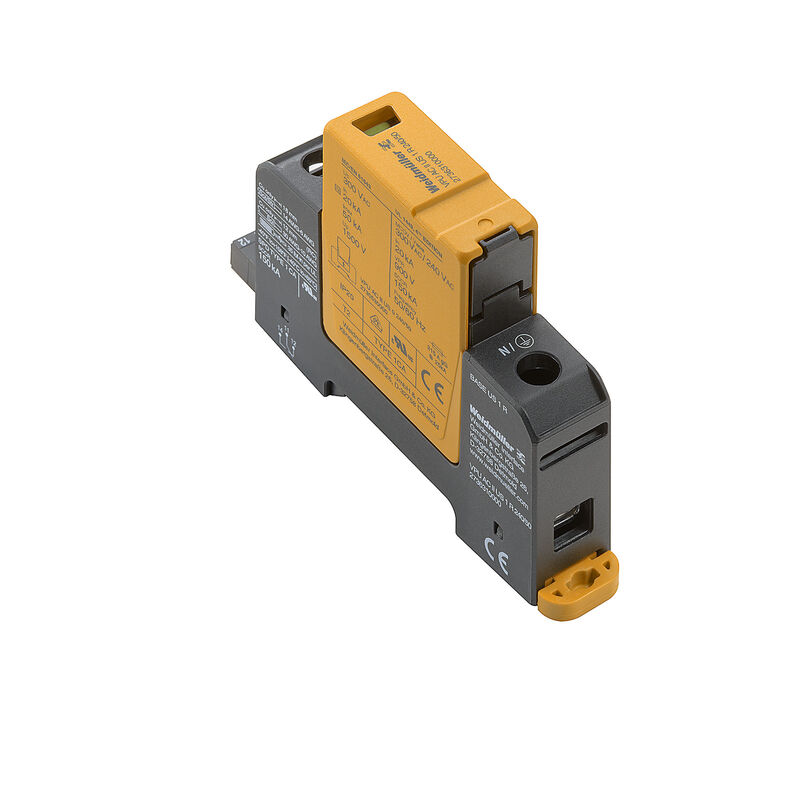

VPU AC II US 1 R 240/50
VPU AC II US 1 R 240/50
Electric symbol

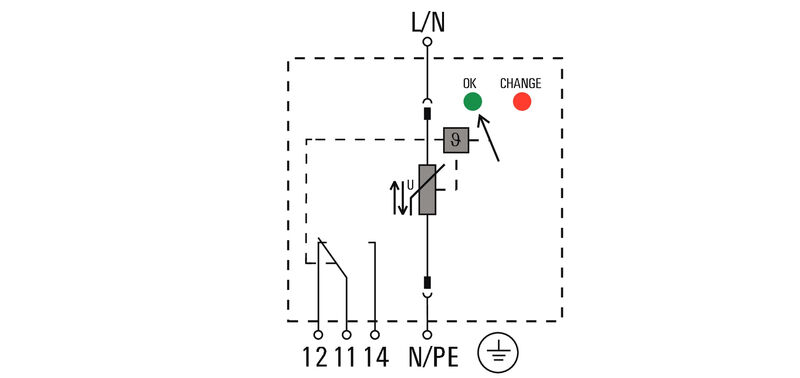

Schematic circuit diagram

VPU AC II US 1 R 240/50

Surge voltage arrester, Low voltage, Surge protection, with remote contact, Single-phase, TN

Item No. 2736310000
Open in Configurator
Download data sheet Engineering-support Produktdownloads
Tilbehør 4 Reservedele 3 Anvendte produkter 6
Homologaciones General ordering data Dimensiones y pesos Temperatures Environmental Product Compliance Données de mesure UL Connection data, remote alert General data Insulation coordination acc. to EN 50178 Rated data IEC / EN Connection data Electrical data General data IECEx/ATEX/cUL besorolás Guarantee Classifications

Homologaciones

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/756ea985-024d-4142-85a7-acc2e9775394/DAP_Master_ICON,w_80,q_80)
ROHS
Conforme
UL File Number Search
[Site Web UL](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E354261

General ordering data

Version
Surge voltage arrester, Low voltage, Surge protection, with remote contact, Single-phase, TN
Order No.
2736310000
Type
VPU AC II US 1 R 240/50
GTIN (EAN)
4050118825411
Qty.
1 items

Dimensiones y pesos

Depth
68 mm
Depth (inches)
2,677 inch
Depth including DIN rail
76 mm
Height
111 mm
Height (inches)
4,37 inch
Width
18 mm
Largeur (pouces)
0,709 inch
Mounting dimension - height
75 mm
Net weight
135 g

Temperatures

Storage temperature
-40 °C...85 °C
Ambient temperature
-40 °C…85 °C
Operating temperature
-40 °C...85 °C
습도
5 ~ 95 % 상대 습도

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
Pas de SVHC au-dessus de 0,1 % en poids

Données de mesure UL

Ambient temperature (operational), max.
85 °C
Rated Voltage UN
240 V
VPR (N-PE)
900 V
MCOV (L-PE)
300 V
MCOV (N-PE)
300 V
SCCR
150 kA
In
20 kA
Категория
SPD TYPE 1
Сечение подсоединяемого провода AWG, мин.
AWG 14
Сечение подсоединяемого провода AWG, макс.
AWG 6
Температура окружающей среды (рабочая), мин.
-40 °C
MODE
all modes
VPR (L-N)
1.800 V
VPR (L-PE)
900 V
Тип напряжения
Переменный ток
Энергетические сети UL
Split-Phase

Connection data, remote alert

Connection type
PUSH IN
Cross-section for connected wire, solid core, max.
1,5 mm²
Cross-section for connected wire, solid core, max. (AWG)
AWG 10
Cross-section for connected wire, solid core, min.
0,25 mm²
Cross-section for connected wire, solid core, min. (AWG)
AWG 30
Stripping length
12 mm

General data

Colour
orange
black
Design
Installation housing; 1TE
Insta IP 20
Mounting rail
TS 35
Operating altitude
≤ 4000 m
Optical function display
green = OK; red = arrester is defective - replace
Protection degree
IP20 in installed state
Segment
Power distribution
UL 94 flammability rating
V-0
Version
Protector de sobretensión
con contacto remoto

Insulation coordination acc. to EN 50178

Pollution severity
2
Surge voltage category
III

Rated data IEC / EN

Discharge current Imax (8/20µs) N-PE
50 kA
Discharge current Imax (8/20µs) wire-PE
50 kA
Discharge current In (8/20µs) N-PE
20 kA
Discharge current In (8/20µs) wire-PE
20 kA
Energy coordination (≤10 m)
Type II
Type III
Follow-on current extinguishing capability Ifi
Follow current need not be taken into account
Frequency range, max.
60 Hz
Frequency range, min.
50 Hz
Fuse protection
No Fuse neccessary ≤315 A gG
250 A gG @50 kA Isccr
315 A gG @25 kA Isccr
Integrated back-up fuse
No
Leakage current at Un
0,3 mA
Low voltage network
Single-phase
TN
Max. continuous voltage, Uc (AC)
300 V
Number of poles
1
Protection level Up at IN (L/N-PE)
≤ 1500 V
Rated voltage (AC)
240 V
Requirements category acc. to IEC 61643-11
Type II
Requirements class, acc. to EN 61643-11
T2
T3
Response time / fallback time
≤ 25 ns
Short-circuit current rating ISCCR
50 kA
Signalling contact
250 V 1A 1CO
SPD type
T2
Standards
IEC 61643-11
EN 61643-11
UL 1449
NFPA 79
Temporary surge voltage (over-voltage) - TOV
337 V
Voltage type
AC

Connection data

Stripping length
18 mm
Wire connection method
Screw connection
Type of connection
Screw connection
Stripping length, rated connection
18 mm
Tightening torque, min.
3 Nm
Couple de serrage, max.
4,5 Nm
클램프 범위, 정격 결선
16 mm²
클램프 범위, 최소
1,5 mm²
클램프 범위, 최대
35 mm²
결선 단면규격 AWG, 최소
AWG 16
결선 단면규격 AWG, 최대
AWG 2
와이어 단면, 솔리드, 최소
1,5 mm²
와이어 단면, 솔리드, 최대
35 mm²
Wire connection cross section, finely stranded, min.
1,5 mm²
Wire connection cross section, finely stranded, max.
25 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), min.
2,5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), max.
35 mm²
Сечение подсоединяемого провода, скрученный, мин.
1,5 mm²
Сечение подсоединяемого провода, скрученный, макс.
35 mm²

Electrical data

Voltage type
AC

General data

Number of poles
1
Protection degree
IP20 po zamontowaniu
Цветовой код
оранжевый
черный

IECEx/ATEX/cUL besorolás

Certificate no. (cULus)
E354261

Guarantee

Time interval
5 years

Classifications

ETIM 8.0
EC000941
ETIM 9.0
EC000941
ETIM 10.0
EC000941
ECLASS 14.0
27-17-12-02
ECLASS 15.0
27-17-12-02
