VPU ZPA S I 3+1 R 300/12,5

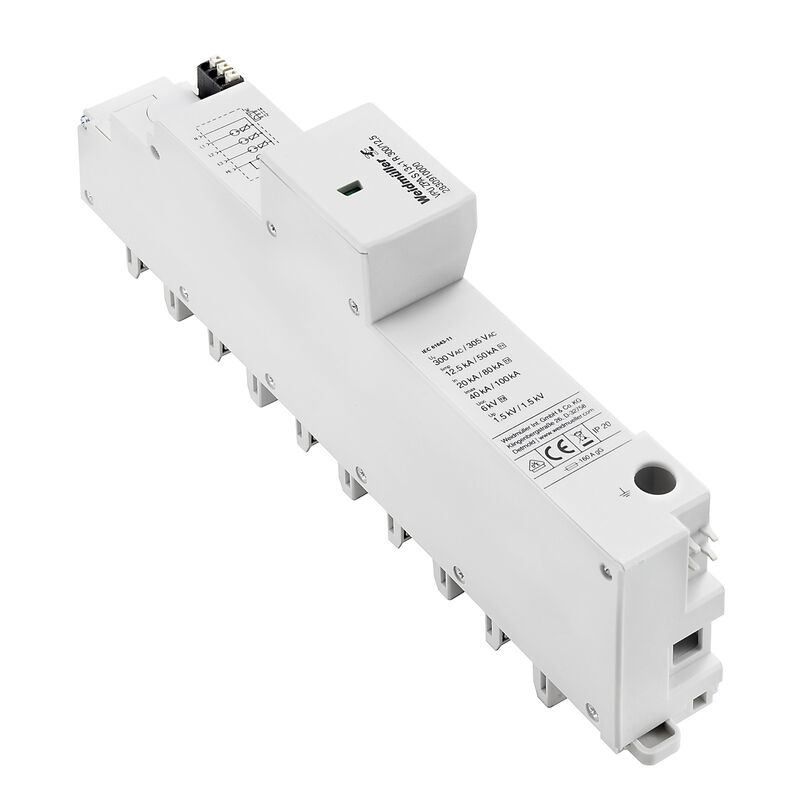

Product image
Similar to illustration
VPU ZPA S I 3+1 R 300/12,5
Electric symbol
Circuit diagram

VPU ZPA S I 3+1 R 300/12,5

Surge voltage arrester, Low voltage, Leakage-current-free, TN-C-S, TN-S, TT, IT with N

Product ID 2830910000
Gegevensblad downloaden Engineering Support Product Downloads
Toebehoren 4 Verwante producten 6
General ordering data Dimensions and weights Temperatures Environmental Product Compliance Connection data, remote alert General data Rated data IEC / EN Connection data Electrical data General data Guarantee Important note Classifications Approvals

General ordering data

Version
Surge voltage arrester, Low voltage, Leakage-current-free, TN-C-S, TN-S, TT, IT with N
Order No.
2830910000
Type
VPU ZPA S I 3+1 R 300/12,5
GTIN (EAN)
4064675390091
Qty.
1  items

Dimensions and weights

Depth
101,6  mm
Depth (inches)
4  inch
Height
230,6  mm
Height (inches)
9,079  inch
Width
36  mm
Width (inches)
1,417  inch
Net weight
638  g

Temperatures

Storage temperature
-40 °C...85 °C
Operating temperature
-40 °C...85 °C
Humidity
5...95 %, no condensation

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Connection data, remote alert

Connection type
Screw connection
Cross-section for connected wire, solid core, max.
1,5  mm²
Cross-section for connected wire, solid core, min.
0,14  mm²
Max. torque
0,4  Nm

General data

auxiliary contact
No
Colour
grey
Design
for 40mm busbars
Operating altitude
≤ 4000 m
Optical function display
green = OK; red = arrester is defective - replace
Protection degree
IP30
in combination with the cover
IP20
Rail
Busbar
Segment
Power distribution
UL 94 flammability rating
V-0
Version
Leakage-current-free

Rated data IEC / EN

Combined pulse UOC
6  kV
Discharge current Imax (8/20µs) N-PE
100 kA
Discharge current Imax (8/20µs) wire-PE
40 kA
Discharge current In (8/20µs) N-PE
80 kA
Discharge current In (8/20µs) wire-PE
20 kA
Energy coordination (≤10 m)
Type I
Type II
Type III
Follow-on current extinguishing capability Ifi
Follow current need not be taken into account
Fuse
No Fuse neccessary ≤160 A gG
Integrated back-up fuse
No
Leakage current at Un
5  µA
Lightning test current Iimp (10/350 µs) (L-PE)
12,5  kA
Lightning test current, Iimp (10/350 µs) (N-PE)
50 kA
Low voltage network
TN-C-S
TN-S
TT
IT with N
Mains voltage
230 V / 400 V
Max. continuous voltage, Uc (AC)
300 V
Max. continuous voltage, Uc (N-PE)
305  V
Number of poles
4
Protection level Up at IN (L/N-PE)
≤ 1.5 kV
Protection level Up at IN (N-PE)
≤ 1.5 kV
Rated voltage (AC)
240  V
Requirements category acc. to IEC 61643-11
Type I
Type II
Type III
Requirements class, acc. to EN 61643-11
T1
T2
T3
Response time
≤ 100 ns
Short-circuit current rating ISCCR
25  kA
Signalling contact
1 CO 250 V AC. 1 A / 125 V DC. 30 mA
SPD type
T1
T2
T3
Standards
IEC 61643-11
EN 61643-11
Temporary surge voltage (over-voltage) - TOV
442  V
Voltage type
AC

Connection data

Wire connection method
Screw connection
Type of connection
Clamped
Tightening torque, max.
4,5  Nm
Clamping range, rated connection
16  mm²
Clamping range, min.
4  mm²
Clamping range, max.
35  mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), min.
16  mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), max.
25  mm²
Connection cross-section, stranded, min.
16  mm²
Connection cross-section, stranded, max.
35  mm²

Electrical data

Voltage type
AC

General data

Number of poles
4
Protection degree
IP30
in combination with the cover
IP20
Colour
grey

Guarantee

Time interval
5 years

Important note

Product information

Only applicable to IT power systems where the earth on the distribution transformer is interconnected with the earth on the consumer side (RE=RA in Figure 44.A1 of IEC 60634-4-44:2018).

Classifications

ETIM 7.0
EC000381
ETIM 8.0
EC000381
ETIM 9.0
EC000381
ETIM 10.0
EC000381
ECLASS 12.0
27-17-12-04
ECLASS 13.0
27-17-12-04
ECLASS 14.0
27-17-12-04
ECLASS 15.0
27-17-12-04

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319263/-S800/-T1z1mm-S80)
ROHS
Conform
