WDK 2.5 ZQV BR
Produktbild
WDK 2.5 ZQV BR

WDK 2.5 ZQV BR

Többemeletes sorkapocs, Csavaros csatlakozás, barna, 2.5 mm², 400 V, Csatlakozások száma: 4, Szintek száma: 2, TS 35, V-0

Produkt ID 1067950000
Åbn i konfiguratoren
Download datablad Engineering-support Produktdownloads
Tilbehør 50 Anvendte produkter 1056
Agréments Általános rendelési adatok Dimensions et poids Hőmérsékletek Termékek környezetvédelmi megfelelősége Caractéristiques des matériaux Caractéristiques nominales selon IECEx/ATEX Rendszer specifikációk 2 clampable conductors (H05V/H07V) with equal cross-section (rated connection) Additional technical data Conductors for clamping (additional connection) Conductors for clamping (rated connection) CSA rating data Размеры General Caractéristiques nominales UL rating data Classificazioni

Agréments

Approvals
![](https://assets.dam.weidmueller.com/assets/api/8761d6a8-633c-4aff-8793-97a5d2b0ca50/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/2fb608f0-c73d-4515-a7a5-878046a505f4/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/cbf09862-97e9-475d-b71a-c6db1e3e9933/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/52b59257-358c-4bc4-9ea4-df407cebf157/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/70d4994d-1e1f-4a62-8b8a-96bcbd57aca3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conforme
UL File Number Search
[UL 웹사이트](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (UR)
E60693

Általános rendelési adatok

Version
Többemeletes sorkapocs, Csavaros csatlakozás, barna, 2.5 mm², 400 V, Csatlakozások száma: 4, Szintek száma: 2, TS 35, V-0
Order No.
1067950000
Type
WDK 2.5 ZQV BR
GTIN (EAN)
4032248822133
Qty.
100 items

Dimensions et poids

Depth
63 mm
Mélység (coll)
2,48 inch
Mélység DIN sínnel együtt
63 mm
Height
69 mm
Altezza (pollici)
2,717 inch
Width
5,1 mm
Larghezza (pollici)
0,201 inch
Net weight
10,965 g

Hőmérsékletek

Storage temperature
-25 °C...55 °C
Ambient temperature
-60 °C…85 °C
연속 작동 온도, 최소
-60 °C
연속 작동 온도, 최대
130 °C

Termékek környezetvédelmi megfelelősége

RoHS Compliance Status
Megfelel, kivétel nélkül
REACH SVHC
No SVHC superiori a 0,1 wt%
Product Carbon Footprint
  • Cradle to gate:
    0.299 kg CO2 eq.

Caractéristiques des matériaux

Basic material
Wemid
Colour
갈색
UL 94 flammability rating
V-0

Caractéristiques nominales selon IECEx/ATEX

Certificate No. (ATEX)
DEMKO15ATEX1346U
Certificate No. (IECEX)
IECEXULD15.0003U
Max. voltage (ATEX)
275 V
Current (ATEX)
21 A
와이어 단면적 최대(ATEX)
4 mm²
Max. voltage (IECEX)
275 V
Current (IECEX)
21 A
Wire cross section max. (IECEX)
4 mm²
Marking EN 60079-7
Ex eb II C Gb
Etykieta Ex 2014/34/WE
II 2 G D

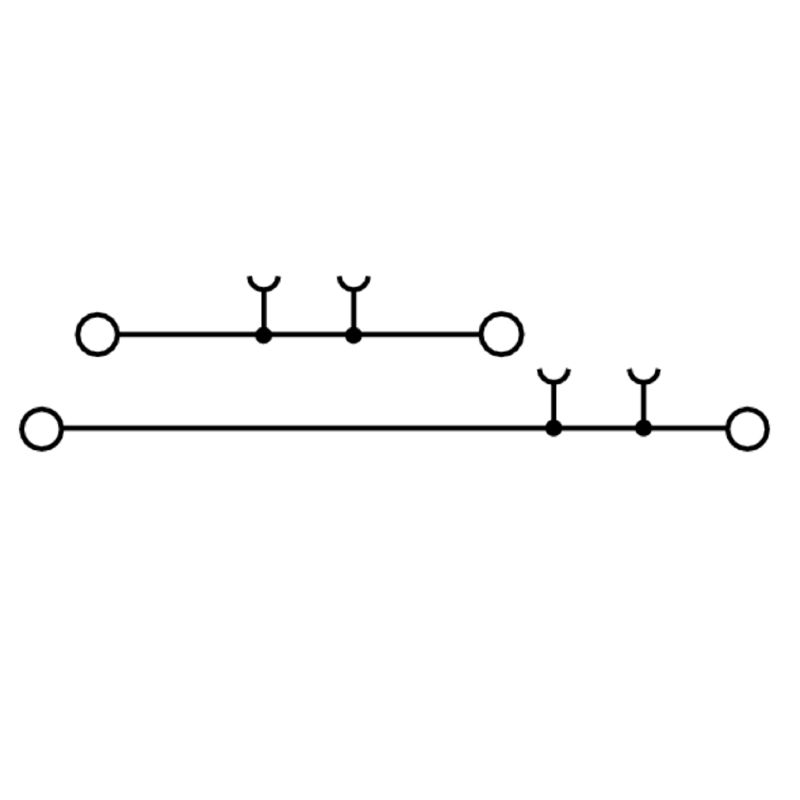

Rendszer specifikációk

Version
Csavaros csatlakozás
dugaszolható keresztösszekötőhöz
Egyik oldalon szabad vég
End cover plate required
Igen
Number of potentials
2
Number of levels
2
레벨당 클램프 지점 개수
2
Number of potentials per tier
1
Levels cross-connected internally
아니요
PE connection
No
Mounting rail
TS 35
N-function
Nie
PE function
Nie
PEN function
Нет

2 clampable conductors (H05V/H07V) with equal cross-section (rated connection)

Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max.
1,5 mm²
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min.
0,5 mm²
Wire connection cross section, finely stranded, two clampable wires, min.
0,5 mm²
Wire cross-section, finely stranded, two clampable wires, max.
1,5 mm²

Additional technical data

Explosion-tested version
Yes
Number of similar terminals
1
Open sides
right
Type of mounting
Snap-on

Conductors for clamping (additional connection)

Connection type, additional connection
Screw connection

Conductors for clamping (rated connection)

Blade size
0.6 x 3.5 mm
Clamping range, max.
4 mm²
Clamping range, min.
0,05 mm²
Clamping screw
M 2.5
Connection cross-section, finely stranded, min.
0,05 mm²
Connection cross-section, stranded, max.
4 mm²
Connection cross-section, stranded, min.
0,05 mm²
Connection direction
on side
Gauge to IEC 60947-1
A3
Number of connections
4
Stripping length
10 mm
Tightening torque, max.
0,6 Nm
Tightening torque, min.
0,4 Nm
Torque level with DMS electric screwdriver
1
Type of connection
Screw connection
Type of connection 2
Screw connection
Wire connection cross section AWG, max.
AWG 12
Wire connection cross section AWG, min.
AWG 30
Wire connection cross section, finely stranded, max.
4 mm²
Wire connection cross section, finely stranded, min.
0,05 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
2,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0,05 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
2,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,05 mm²
Wire connection cross-section, solid core, max.
4 mm²
Wire connection cross-section, solid core, min.
0,05 mm²

CSA rating data

Certificate No. (CSA)
12400-391
Current size C (CSA)
25 A
Voltage size C (CSA)
300 V
Wire cross section max. (CSA)
12 AWG
Wire cross section min. (CSA)
26 AWG

Размеры

Смещение TS 35
35,5 mm

General

Mounting rail
TS 35
Standards
IEC 60947-7-1
Wire connection cross section AWG, max.
AWG 12
Wire connection cross section AWG, min.
AWG 30

Caractéristiques nominales

Rated cross-section
2,5 mm²
Rated voltage
400 V
Rated DC voltage
400 V
Nominal current
24 A
Current at maximum wires
32 A
Standards
IEC 60947-7-1
Rezystancja objętościowa wg IEC 60947-7-x
1,33 mΩ
Rated impulse withstand voltage
6 kV
Power loss in accordance with IEC 60947-7-x
0,77 W
Степень загрязнения
3

UL rating data

Certificate No. (UR)
E60693
Conductor size Factory wiring max. (UR)
12 AWG
Conductor size Factory wiring min. (UR)
22 AWG
Conductor size Field wiring max. (UR)
12 AWG
Conductor size Field wiring min. (UR)
22 AWG
Current size B (UR)
20 A
Current size C (UR)
20 A
Voltage size B (UR)
300 V
Voltage size C (UR)
300 V

Classificazioni

ETIM 8.0
EC000897
ETIM 9.0
EC000897
ETIM 10.0
EC000897
ECLASS 14.0
27-25-01-02
ECLASS 15.0
27-25-01-02
