WDU 120/150
Product image

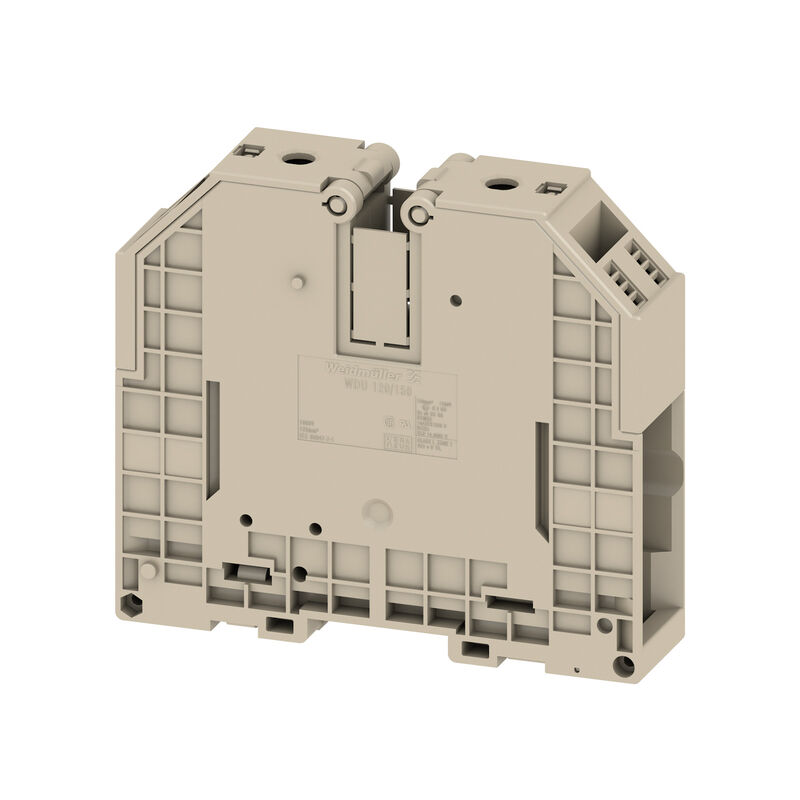

WDU 120/150

WDU 120/150

Проходная клеммная колодка, Винтовое соединение, Темно-бежевый, 120 mm², 269 A, 1000 V, Количество соединений: 2

Produkt ID 1024500000
Åbn i konfiguratoren
Download datablad Engineering-support Produktdownloads
Tilbehør 11 Anvendte produkter 113
Dopuszczenia Основные данные для заказа Wymiary i masa Температуры Экологическое соответствие изделия dane tworzywa Номинальные характеристики IECEx/ATEX Параметры системы 2 conduttori allacciabili (H05V/H07V) di sezione uguale (collegamento di dimensionamento) 추가 기술 데이터 Conductors for clamping (additional connection) Conductors for clamping (rated connection) CSA rating data 일반 PE rating data dane znamionowe UL rating data Klassificeringar

Dopuszczenia

Approvals
![](https://assets.dam.weidmueller.com/assets/api/8761d6a8-633c-4aff-8793-97a5d2b0ca50/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/966ab2aa-a692-450f-aa01-511debec6d4c/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/70d4994d-1e1f-4a62-8b8a-96bcbd57aca3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/2fe64228-e403-4415-b85f-44f3a8f8bb2c/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/680ba583-8621-4d57-b79a-2859678ecdf9/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/2fb608f0-c73d-4515-a7a5-878046a505f4/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/cbf09862-97e9-475d-b71a-c6db1e3e9933/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/52b59257-358c-4bc4-9ea4-df407cebf157/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/9c9311f3-ecc1-4734-91a1-2f3495436c72/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/d1a278f5-5acb-4199-8c83-b599817086bc/DAP_Master_ICON,w_80,q_80)
ROHS
Uppfyllelse
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (UR)
E60693
Certificate No. (cURusEX)
E184763

Основные данные для заказа

Version
Проходная клеммная колодка, Винтовое соединение, Темно-бежевый, 120 mm², 269 A, 1000 V, Количество соединений: 2
Order No.
1024500000
Type
WDU 120/150
GTIN (EAN)
4008190164768
Qty.
10 Styk

Wymiary i masa

Depth
117 mm
Глубина (дюймов)
4,606 inch
Глубина с DIN-рейкой
125,5 mm
Height
132 mm
Bygghöjd (tum)
5,197 inch
Width
32 mm
Byggbredd (tum)
1,26 inch
Net weight
508,825 g

Температуры

Storage temperature
-25 °C...55 °C
Ambient temperature
-60 °C…85 °C
Continuous operating temp., min.
-60 °C
Continuous operating temp., max.
130 °C

Экологическое соответствие изделия

RoHS-Konformitätsstatus
Соответствует без исключения
REACH SVHC
Nej mSvHC över 0,1 viktprocent
Produktspezifischer CO2-Fußabdruck
  • Cradle to gate:
    3.666 kg CO2 eq.

dane tworzywa

Basic material
Wemid
Colour
dark beige
UL 94 flammability rating
V-0

Номинальные характеристики IECEx/ATEX

Zertifikat-Nr. (ATEX)
DEMKO14ATEX1338U
Zertifikat-Nr. (IECEX)
IECEXULD14.0005U
Max. voltage (ATEX)
1100 V
Strom (ATEX)
265 A
Wire cross section max. (ATEX)
150 mm²
Spannung max (IECEX)
1100 V
Current (IECEX)
265 A
Leiterquerschnitt max (IECEX)
150 mm²
Kennzeichnung EN 60079-7
Ex eb II C Gb
Ex 2014/34/EU label
II 2 G D

Параметры системы

Version
Винтовое соединение
для привинчиваемой перемычки
закрытый
End cover plate required
Нет
Number of potentials
1
Number of levels
1
Antal klämställen per våning
2
Number of potentials per tier
1
Levels cross-connected internally
No
PE connection
No
Mounting rail
TS 35
N-function
No
PE function
No
PEN function
Yes

2 conduttori allacciabili (H05V/H07V) di sezione uguale (collegamento di dimensionamento)

Cross-section for connected wire, stranded, two clampable wires, max.
70 mm²
Průřez připojeného vodiče, jemně stáčený, dva přisvorkované vodiče, min.
35 mm²
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max.
70 mm²
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min.
35 mm²
Wire connection cross section, finely stranded, two clampable wires, min.
35 mm²
Wire cross-section, finely stranded, two clampable wires, max.
70 mm²

추가 기술 데이터

Explosion-tested version
예
Installation advice
직접 장착
Number of similar terminals
1
Open sides
closed
Type of mounting
Snap-on

Conductors for clamping (additional connection)

Anschlussart, weiterer Anschluss
Screw connection

Conductors for clamping (rated connection)

Abisolierlänge
35 mm
Anschlussart
Screw connection
Anschlussrichtung
on side
Anzahl Anschlüsse
2
Anzugsdrehmoment, max.
20 Nm
Anzugsdrehmoment, min.
10 Nm
Blade size
S6 (DIN 6911)
Clampable conductor
  • Type de raccordement:
    Raccordement à vis
  • Vezetékcsatlakozás keresztmetszete:
    • Típus:
      sodrott, H07V-R
    • min.:
      35 mm²
    • 最大.:
      150 mm²
    • 공칭:
      120 mm²
  • wire end ferrule:
    • Długość zdejmowania izolacji:
      • min.:
        35 mm
      • макс.:
        35 mm
      • nominell:
        35 mm
    • Tightening torque:
      • min.:
        10 Nm
      • max.:
        20 Nm
  • Csatlakozási specifikáció:
    Csavaros csatlakozás
  • Vezetékcsatlakozás keresztmetszete:
    • Típus:
      flexibilis, H05(07) V-K
    • min.:
      35 mm²
    • max.:
      150 mm²
    • névleges:
      120 mm²
  • érvéghüvely:
    • Csupaszolási hossz:
      • min.:
        35 mm
      • max.:
        35 mm
      • névleges:
        35 mm
    • Meghúzási nyomaték:
      • min.:
        10 Nm
      • max.:
        20 Nm
Clamping range, min.
33,63 mm²
Clamping screw
M 10
Connection cross-section, stranded, max.
150 mm²
Connection cross-section, stranded, min.
35 mm²
Klemmbereich, max.
150 mm²
Lehrdorn nach 60 947-1
B13
Leiteranschlussquerschnitt AWG, max.
kcmil 250
Wire connection cross section AWG, min.
AWG 2
Wire connection cross section, finely stranded, max.
150 mm²
Wire connection cross section, finely stranded, min.
35 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
150 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
35 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
150 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
35 mm²
Wire connection cross-section, solid core, max.
150 mm²
Wire connection cross-section, solid core, min.
35 mm²

CSA rating data

Certificate No. (CSA)
12400-241
Current size C (CSA)
285 A
Voltage size C (CSA)
600 V
Wire cross section max. (CSA)
250 AWG
Wire cross section min. (CSA)
2 AWG

일반

Einbauhinweis
직접 장착
Leiteranschlussquerschnitt AWG, max.
kcmil 250
Leiteranschlussquerschnitt AWG, min.
AWG 2
Normen
IEC 60947-7-1
Tragschiene
TS 35

PE rating data

PEN-Funktion
Yes

dane znamionowe

Rated cross-section
120 mm²
Rated voltage
1.000 V
Rated DC voltage
1.000 V
Nominal current
269 A
Current at maximum wires
309 A
Standards
IEC 60947-7-1
Volume resistance according to IEC 60947-7-x
0,12 mΩ
Rated impulse withstand voltage
8 kV
Power loss in accordance with IEC 60947-7-x
8,61 W
Pollution severity
3

UL rating data

Certificate No. (UR)
E60693
Conductor size Factory wiring max. (UR)
250 kcmil
Conductor size Factory wiring min. (UR)
2 AWG
Conductor size Field wiring max. (UR)
250 kcmil
Conductor size Field wiring min. (UR)
2 AWG
Current size C (UR)
225 A
Voltage size C (UR)
1000 V

Klassificeringar

ETIM 8.0
EC000897
ETIM 9.0
EC000897
ETIM 10.0
EC000897
ECLASS 14.0
27-25-01-01
ECLASS 15.0
27-25-01-01
