ZAP/TW6/3AN BL

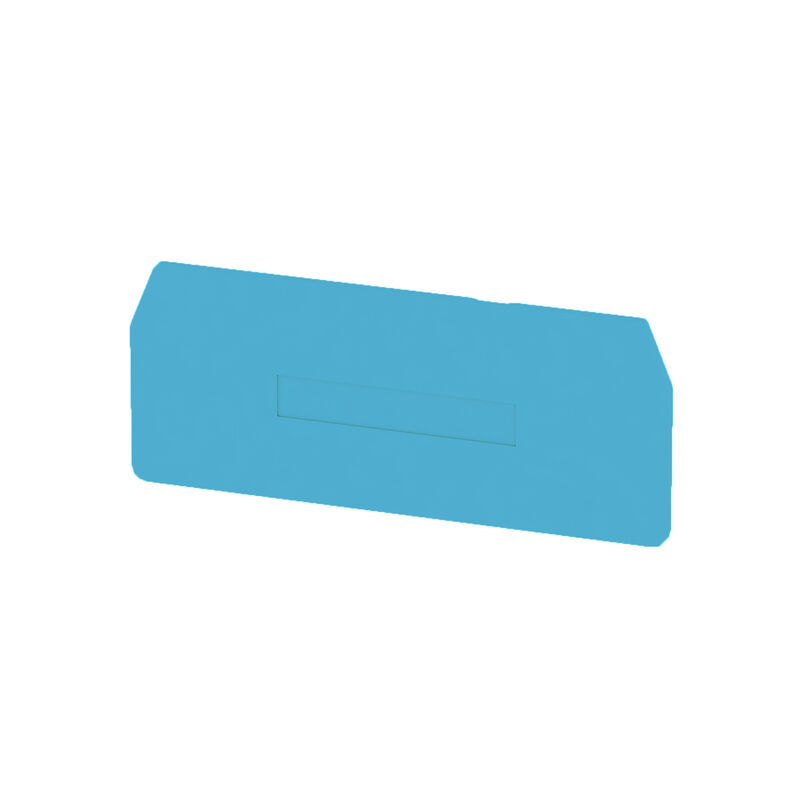

Product image

ZAP/TW6/3AN BL

Dette produkt er snart ikke længere tilgængeligt.

Last order date: /Date(1782770400000)/

Alternative product: 7907370000

Z-series, End plate, Partition plate

Produkt ID 7907380000
Download datablad Engineering-support Produktdownloads
Er tilbehør til 3 Anvendte produkter 416
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications Additional technical data Product images Classifications

Approvals

ROHS
Conform

General ordering data

Version
Z-series, End plate, Partition plate
Order No.
7907380000
Type
ZAP/TW6/3AN BL
GTIN (EAN)
4008190576110
Qty.
20 Styk
Delivery status
This article will no longer be available in the future.
Last order date
/Date(1782770400000)/
Alternative product
[7907370000](~/p/7907370000)

Dimensions and weights

Depth
45 mm
Depth (inches)
1,772 inch
Výška
90 mm
Výška (v palcích)
3,543 inch
Width
2 mm
Width (inches)
0,079 inch
Net weight
4,92 g

Temperatures

Storage temperature
-25 °C...55 °C
Ambient temperature
-50 °C…75 °C
Continuous operating temp., min.
-50 °C
Continuous operating temp., max.
120 °C

Environmental Product Compliance

Estado de cumplimiento de la directiva RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Product Carbon Footprint
  • Cradle to gate:
    0.056 kg CO2 eq.

Material data

基础材料
Wemid
Colour
blue
Brännbarhetsklass enligt UL 94
V-0

System specifications

Utförande
End and intermediate plate

Additional technical data

Snap-on
Yes

Product images

Classifications

ETIM 8.0
EC000886
ETIM 9.0
EC000886
ETIM 10.0
EC000886
ECLASS 14.0
27-25-03-01
ECLASS 15.0
27-25-03-01
