ZDU 2.5/3AN OR

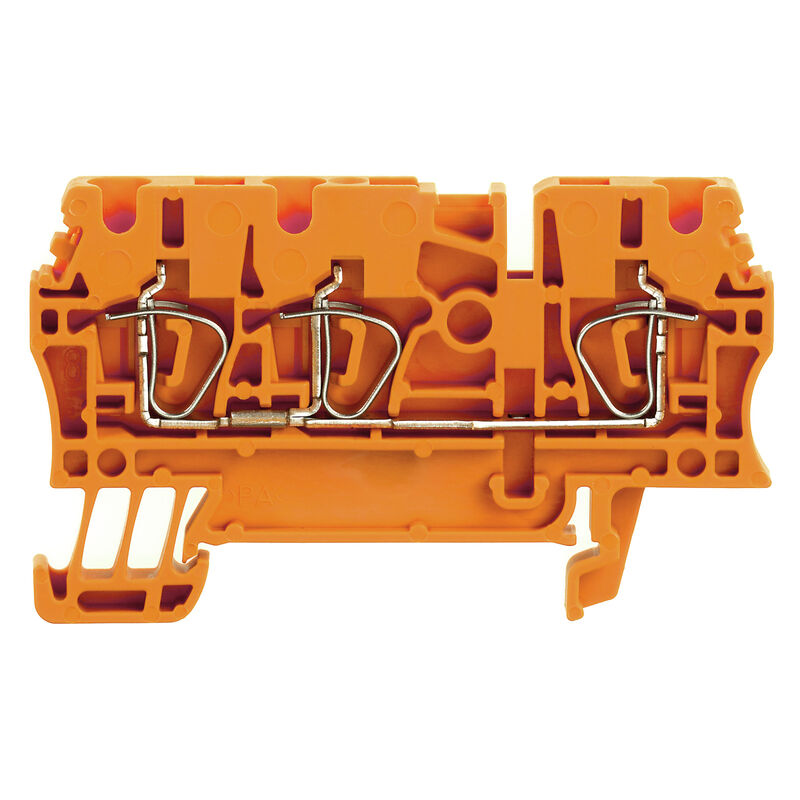

Product image
ZDU 2.5/3AN OR

ZDU 2.5/3AN OR

Morsetto passante, Molla autobloccante, 2.5 mm², 800 V, 24 A, arancione

Item No. 1636790000
Open in Configurator
Download data sheet Supporto ingegneristico Download dei prodotti
Accessori 34 Prodotti correlati 1069
Omologazioni Dati generali per l’ordinazione Dimensioni e pesi Temperature Conformità ambientale del prodotto Dati dei materiali Dati di dimensionamento IECEx/ATEX Dati caratteristici del sistema Aaltri dati tecnici Conduttori allacciabili (altro collegamento) Raccordement (raccordement nominal) CSA data hodnocení Generale Dati dimensionamento UL rating data Classificazioni

Omologazioni

Jóváhagyások
![](https://assets.dam.weidmueller.com/assets/api/8761d6a8-633c-4aff-8793-97a5d2b0ca50/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/d1a278f5-5acb-4199-8c83-b599817086bc/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/106d65db-9035-4009-8a4b-55480269373e/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/680ba583-8621-4d57-b79a-2859678ecdf9/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/2fb608f0-c73d-4515-a7a5-878046a505f4/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/52b59257-358c-4bc4-9ea4-df407cebf157/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/9c9311f3-ecc1-4734-91a1-2f3495436c72/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/35c2d189-508a-474d-b19d-eb9035fb9c7c/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0a8958f9-c226-4e12-af16-493ec79d92c5/DAP_Master_ICON,w_80,q_80)
ROHS
Conforme
UL File Number Search
[Sito web UL](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693
Certificate No. (cURusEX)
E184763

Dati generali per l’ordinazione

Változat
Morsetto passante, Molla autobloccante, 2.5 mm², 800 V, 24 A, arancione
Rendelési szám
1636790000
Típus
ZDU 2.5/3AN OR
GTIN (EAN)
4008190273620
Qty.
100 Pezzo

Dimensioni e pesi

Mélység
38,5 mm
Profondità (pollici)
1,516 inch
Profondità inclusa guida DIN
39,5 mm
Magasság
64,5 mm
Altezza (pollici)
2,539 inch
Szélesség
5,1 mm
Larghezza (pollici)
0,201 inch
Net weight
8,008 g

Temperature

Tárolási hőmérséklet
-25 °C...55 °C
Ambient temperature
-50 °C…75 °C
Temperatura d'esercizio continuo, min.
-50 °C
Temperatura d'esercizio continuo, max.
120 °C

Conformità ambientale del prodotto

RoHS megfelelőségi állapot
Conforme senza esenzione
REACH SVHC
No SVHC superiori a 0,1 wt%

Dati dei materiali

Basic material
Wemid
Colour
arancione
UL 94 flammability rating
V-0

Dati di dimensionamento IECEx/ATEX

Certificate No. (ATEX)
DEMKO15ATEX1467U
Certificate No. (IECEX)
IECEXULD15.0008U
Max. voltage (ATEX)
550 V
Current (ATEX)
22 A
Sezione cavo max (ATEX)
4 mm²
Max. voltage (IECEX)
550 V
Corrente (IECEX)
22 A
Wire cross section max. (IECEX)
4 mm²
Marking EN 60079-7
Ex eb II C Gb
Marcatura Ex 2014/34/EU
II 2 G D

Dati caratteristici del sistema

Version
Molla autobloccante
per connettore trasversale ad innesto
aperto da un lato
End cover plate required
Sì
Nombre de polarités
1
Number of levels
1
Numero dei punti di serraggio per piano
3
Number of potentials per tier
1
Levels cross-connected internally
No
PE connection
No
Mounting rail
TS 35

Aaltri dati tecnici

Explosion-tested version
Sì
Number of similar terminals
1
Open sides
destra
Type of mounting
innestabile

Conduttori allacciabili (altro collegamento)

Connection type, additional connection
Molla autobloccante

Raccordement (raccordement nominal)

Blade size
0,6 x 3,5 mm
Clamping range, max.
4 mm²
Clamping range, min.
0,05 mm²
Connection cross-section, finely stranded, min.
0,05 mm²
Connection cross-section, stranded, max.
4 mm²
Connection cross-section, stranded, min.
0,05 mm²
Connection direction
in alto
Gauge to IEC 60947-1
A3
Number of connections
3
Stripping length
10 mm
Type of connection
Molla autobloccante
Wire connection cross section AWG, max.
AWG 12
Wire connection cross section AWG, min.
AWG 30
Wire connection cross section, finely stranded, max.
4 mm²
Wire connection cross section, finely stranded, min.
0,05 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
2,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0,05 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
2,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,05 mm²
Wire connection cross-section, solid core, max.
4 mm²
Wire connection cross-section, solid core, min.
0,05 mm²

CSA data hodnocení

Certificate No. (CSA)
200039-1152892
Current size B (CSA)
27 A
Current size C (CSA)
27 A
Current size D (CSA)
5 A
Voltage size B (CSA)
600 V
Voltage size C (CSA)
600 V
Voltage size D (CSA)
600 V
Wire cross section max. (CSA)
12 AWG
Wire cross section min. (CSA)
26 AWG

Generale

Mounting rail
TS 35
Standards
IEC 60947-7-1
Wire connection cross section AWG, max.
AWG 12
Wire connection cross section AWG, min.
AWG 30

Dati dimensionamento

Rated cross-section
2,5 mm²
Rated voltage
800 V
Rated DC voltage
800 V
Nominal current
24 A
Current at maximum wires
31 A
Standards
IEC 60947-7-1
Volume resistance according to IEC 60947-7-x
1,33 mΩ
Rated impulse withstand voltage
8 kV
Power loss in accordance with IEC 60947-7-x
0,77 W
Grado di lordura
3

UL rating data

Certificate No. (cURus)
E60693
Conductor size Factory wiring max. (cURus)
12 AWG
Conductor size Factory wiring min. (cURus)
30 AWG
Conductor size Field wiring max. (cURus)
12 AWG
Conductor size Field wiring min. (cURus)
30 AWG
Current size C (cURus)
25 A
Voltage size C (cURus)
600 V

Classificazioni

ETIM 8.0
EC000897
ETIM 9.0
EC000897
ETIM 10.0
EC000897
ECLASS 14.0
27-25-01-01
ECLASS 15.0
27-25-01-01
