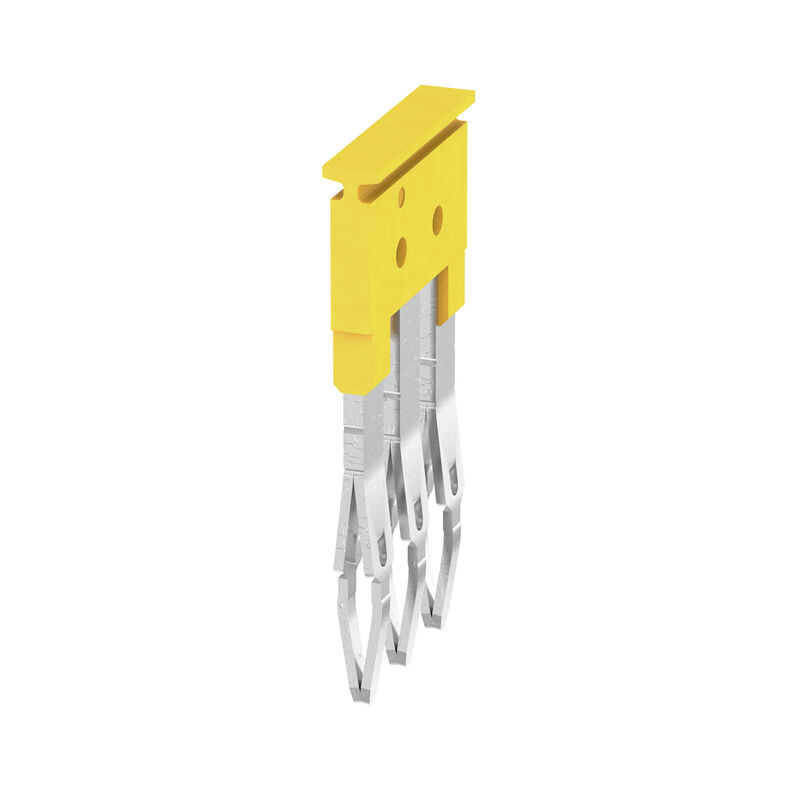

ZQV 2.5/3

Accessories, Cross-connector, 24 A

Item No. 1608870000

Properties

General ordering data

Version	Accessories, Cross-connector, 24 A
Order No.	1608870000
Type	ZQV 2.5/3
GTIN (EAN)	4008190061630
Qty.	60 items

Dimensions and weights

Depth	27.6 mm
Depth (inches)	1.087 inch
Height	13.6 mm
Height (inches)	0.535 inch
Width	2.8 mm
Width (inches)	0.11 inch
Net weight	1.8 g

Temperatures

Storage temperature	-25 °C...55 °C
Continuous operating temp., min.	-60
Continuous operating temp., max.	130

Material data

Material	Wemid
Colour	yellow
UL 94 flammability rating	V-0

System specifications

Version

For the terminals

Additional technical data

Explosion-tested version	Yes
Installation advice	Direct mounting
Type of fixing	Plugged

Cross-connector

Number of cross-connected terminals	3
Rated current, 2-pole	24 A
Rated current, multi-pole	24 A
Type	Cross-connector

Dimensions

Pitch in mm (P)

5.1 mm

General

Installation advice	Direct mounting
Number of poles	3

Rating data

Rated current

24 A

Important note

Product information

Due to stability and temperature reasons It is only possible to break out 60% of contact elements The usage of cross connectors reduces the rated voltage to 400VThe voltage reduced to 25V if cut cross connection with blank cut edges are used

Downloads

Approval/Certificate/Document of Conformity	[Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_62280)
Engineering Data	[Zuken E3.S](LINK/CAE_EN.html)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.1608870000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1608870000)
WSCAD Universe	[WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1608870000&norm=0)
User Documentation	[Operating instructions_ZDU1.5-ZDU35_ZQV.pdf](https://mdcop.weidmueller.com/mediadelivery/asset/900_35347) [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) [User Manual ZQV 2.5](https://mdcop.weidmueller.com/mediadelivery/asset/900_229217)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC000489
ETIM 7.0	EC000489
ETIM 8.0	EC000489
ETIM 9.0	EC000489
ECLASS 9.0	27-14-11-40
ECLASS 9.1	27-14-11-40
ECLASS 10.0	27-14-11-40
ECLASS 11.0	27-14-11-40
ECLASS 12.0	27-14-11-40
ECLASS 13.0	27-25-03-03

Approvals

ROHS

Conform
