Egenskaber

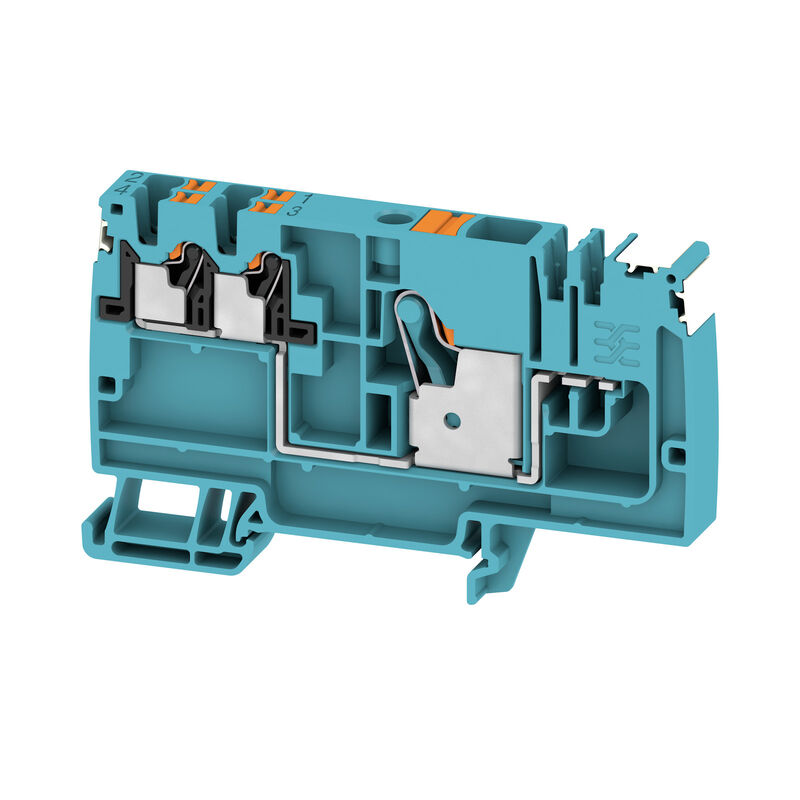

| Version | Modular distribution terminals, PUSH IN, 10 mm², 800 V, 57 A, blue |
| Order No. | 2675520000 |
| Type | AAP12 10/4X2.5 LO-LI DL BL/OR |
| GTIN (EAN) | 4050118817607 |
| Qty. | 20 Styk |
| Depth | 53,5 mm |
| Depth (inches) | 2,106 inch |
| Depth including DIN rail | 54 mm |
| Height | 89 mm |
| Height (inches) | 3,504 inch |
| Width | 10 mm |
| Width (inches) | 0,394 inch |
| Net weight | 32,93 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Wemid |
| Colour | blue |
| Colour of operational elements | orange |
| UL 94 flammability rating | V-0 |
| Marking EN 60079-7 | Ex ec II C Gc |
| Ex 2014/34/EU label | II 2 G D |
| End cover plate required | Yes |
| Number of potentials | 1 |
| Number of levels | 1 |
| Number of clamping points per level | 5 |
| Number of potentials per tier | 1 |
| Levels cross-connected internally | No |
| PE connection | No |
| Rail | TS 35 |
| N-function | Yes |
| PE function | No |
| PEN function | No |
| Explosion-tested version | Yes |
| Installation advice | Rail |
| Open sides | right |
| Snap-on | Yes |
| Type of fixing | Snap-on |
| Type of mounting | TS 35 |
| Blade size, additional connection | 0.6 x 3.5 mm |
| Clamping range, further connection, max. | 2,5 mm² |
| Clamping range, further connection, min. | 0,14 mm² |
| Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max. | 2,5 mm² |
| Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, min. | 0,5 mm² |
| Conductor cross-section, flexible, further connection, min. | 0,5 mm² |
| Connection direction | top |
| Connection type, additional connection | PUSH IN |
| Cross-section for connected wire, flexible, further connection, max. | 2,5 mm² |
| Cross-section for connected wire, multi-core, further connection, max. | 2,5 mm² |
| Cross-section for connected wire, multi-core, further connection, min. | 0,5 mm² |
| Cross-section for connected wire, solid-core, further connection, max. | 2,5 mm² |
| Cross-section for connected wire, solid-core, further connection, min. | 0,5 mm² |
| Number of connections, additional connection | 4 |
| Rated cross-section, further connection | 2,5 mm² |
| Rated current, additional connection | 24 A |
| Stripping length , additional connection | 10 mm |
| Blade size | 1.0 x 5.5 mm |
| Clamping range, max. | 16 mm² |
| Clamping range, min. | 0,5 mm² |
| Connection cross-section, stranded, max. | 16 mm² |
| Connection cross-section, stranded, min. | 0,5 mm² |
| Connection direction | top |
| Gauge to IEC 60947-1 | A6 |
| Number of connections | 1 |
| Stripping length | 18 mm |
| Tube length for twin wire-end ferrule |
|
| Tube length for wire-end ferrule with plastic collar DIN 46228/4 |
|
| Tube length for wire-end ferrule without plastic collar DIN 46228/1 |
|
| Twin wire-end ferrules, max. | 4 mm² |
| Twin wire-end ferrules, min. | 0,5 mm² |
| Type of connection | PUSH IN |
| Type of connection 2 | PUSH IN |
| Wire connection cross section, finely stranded, max. | 10 mm² |
| Wire connection cross section, finely stranded, min. | 0,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 10 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 10 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0,5 mm² |
| Wire connection cross-section, solid core, max. | 10 mm² |
| Wire connection cross-section, solid core, min. | 0,5 mm² |
| Installation advice | Rail |
| Number of poles | 1 |
| Rail | TS 35 |
| Standards | IEC 60947-7-1 |
| Rated cross-section | 10 mm² |
| Rated voltage | 800 V |
| Rated DC voltage | 800 V |
| Rated current | 57 A |
| Current at maximum wires | 57 A |
| Standards | IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x | 0,56 mΩ |
| Rated impulse withstand voltage | 8 kV |
| Power loss in accordance with IEC 60947-7-x | 1,82 W |
| Pollution severity | 3 |
| Surge voltage category | III |
| Product information | The applicable safety regulations for the overload and short-circuit of the connected conductors must be followed. The total current of all connected conductors must not exceed the max. load current. |
