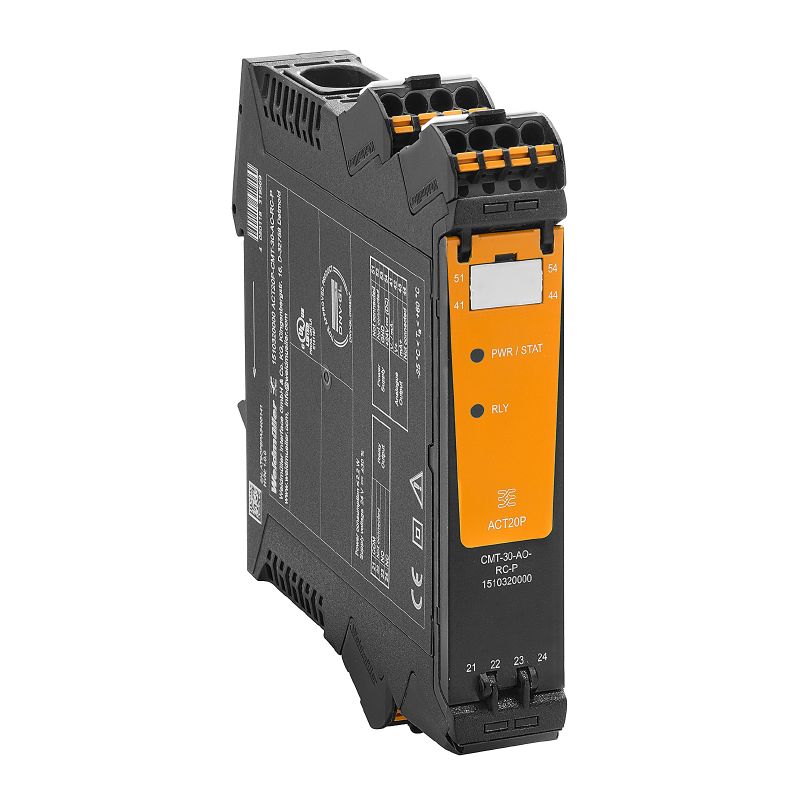

Similar to illustration
ACT20P-CMT-10-AO-RC-P
ACT20P-CMT-10-AO-RC-P
Dimensioned drawing
ACT20P-CMT-10-AO-RC-P
ACT20P-CMT-10-AO-RC-P
ACT20P-CMT-10-AO-RC-P
ACT20P-CMT-10-AO-RC-P
Example of use
ACT20P-CMT-10-AO-RC-P

ACT20P-CMT-10-AO-RC-P

Current-measuring transducer, Limit value monitoring, Input : 0…5/10 A, Analogue output, Relay output, Current-carrying cable in feed-through hole

Product ID 1510330000
Gegevensblad downloaden Engineeringondersteuning Softwareondersteuning Productdownloads
Toebehoren 2 Afzonderlijke onderdelen 1 Verwante producten 10
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Input Output Output (digital) Output (analogue) General data Insulation coordination Connection data Part description Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/cbf09862-97e9-475d-b71a-c6db1e3e9933/DAP_Master_ICON,w_80,q_80)
Approvals
CULUS;
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Nº de certificat (cULus)
E141197

General ordering data

Version
Current-measuring transducer, Limit value monitoring, Input : 0…5/10 A, Analogue output, Relay output, Current-carrying cable in feed-through hole
Order No.
1510330000
Type
ACT20P-CMT-10-AO-RC-P
GTIN (EAN)
4050118319378
Qty.
1 items

Dimensions and weights

Depth
114 mm
Depth (inches)
4,488 inch
Height
127,1 mm
Height (inches)
5,004 inch
Width
22,8 mm
Width (inches)
0,898 inch
Net weight
158 g

Temperatures

Température de stockage
-40 °C...85 °C
Température de fonctionnement
-25 °C...60 °C
Humidity
5...95 %, no condensation

Environmental Product Compliance

Statut de conformité RoHS
Compliant with exemption
Exemption RoHS (le cas échéant/connue)
6c, 7a, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
2f6dd957-421a-46db-a0c2-cf1609156924

Input

Comportement en cas de surcharge
Max. peak current: 10 × IInput for 1s
Fréquence d'entrée
AC: 15…700 Hz (true root mean square)
Nombre d’entrées
1
Plage de mesure d'entrée
configurable
0…5/10 A AC (RMS) or DC
max. peak current 10 × IInput (1 s)
max. peak current 2 × IInput (1 s) @ 5/10 A DC
For DC current measurement (AA): Current direction display at the output (-/+ analog value)
max. peak current 2 × IInput (1 s)
Signal d'entrée
Current-carrying cable in feed-through hole

Output

Fonction de transmission
direct or inverted
Type
active
connected control must be passive

Output (digital)

Alarmfunktion
Surge current
Under-current
Alarm limit setting: 2 - 105 %
Hysteresis 5% / 10%
Alarm delay: 0…10 s
Коммутационное перенапряжение пост. тока, макс.
24 V
Макс. коммутируемое напряжение, AC
250 V
Номинальный ток переключения
6 A
Тип
Relay, 1 CO contact
normal / inverse adjustment
Ток
2 × I Input
Цифровые выходы
1

Output (analogue)

Fonction de transmission
direct or inverted
Lezáró ellenállás feszültség
≥ 10 kΩ
Numero di uscite analogiche
1
Prąd wyjściowy
Adjustable
0...20 mA
4...20 mA
-20…+20 mA
Tension de sortie
Adjustable
0...10 V
2…10 V
0...5 V
1...5 V
-5…+5 V
-10...+10 V
부하 저항 전류
≤ 600 Ω

General data

Вид защиты
IP20
Время переходного процесса
≤ 300 ms (RMS)
≤ 60 ms (AA)
Конфигурация

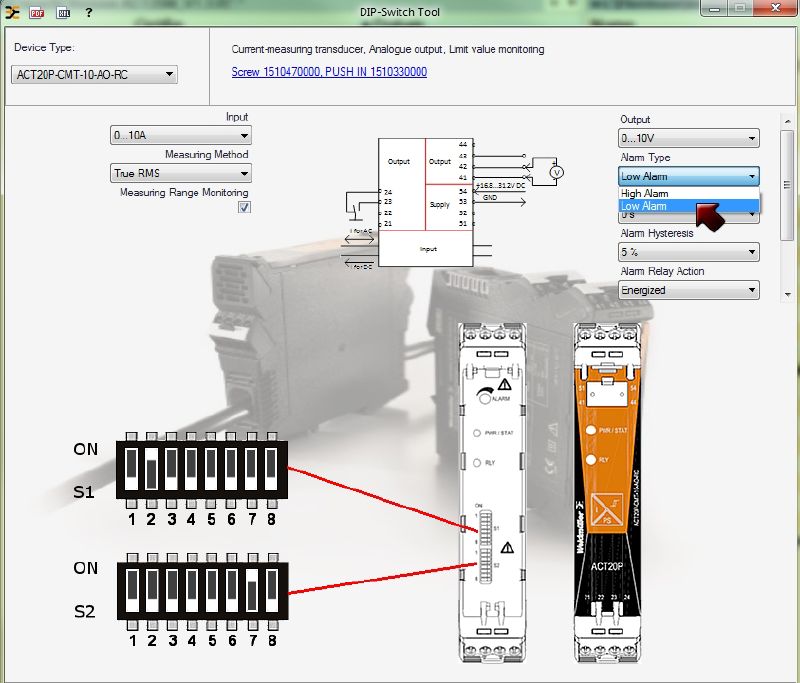

DIP switch and potentiometer
Напряжение питания
16,8 V…31,2 V
Потребляемая мощность, макс.
2,2 W
Потребляемая мощность, тип.
0,9 W
Температурный коэффициент
≤ ±100 ppm⁄K @ -25…+55 °C
≤ ±200 ppm/K @ +55…+70 °C
Точность
<0.75 % FSR
Укомплектованная монтажная рейка
TS 35

Insulation coordination

Catégorie de surtension
III
Degré de pollution
2
Isolation galvanique
4-way isolator;
between input ⁄ output ⁄ supply ⁄ relay
Normes CEM
EN 61326-1
Tension d'essai
4 kV
Tension d'isolation
4 kVeff / 1 min.
Tension de tenue au choc
6.4 kV (1.2/50 µs)
Tension nominale (texte)
300 V ACrms

Connection data

Type of connection
PUSH IN
Couple de serrage, min.
0,4 Nm
Tightening torque, max.
0,6 Nm
Clamping range, rated connection
2,5 mm²
Clamping range, min.
0,5 mm²
Clamping range, max.
2,5 mm²
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section AWG, max.
AWG 14
Wire cross-section, solid, min.
0,2 mm²
Wire cross-section, solid, max.
2,5 mm²
Wire connection cross section, finely stranded, min.
0,2 mm²
Wire connection cross-section, finely stranded, max.
2,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,2 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
2,5 mm²

Part description

Product description
The ACT20P-CMT-XX-(AO)-RC-P series of devices measure and monitor AC and DC currents of up to 60 A. The real effective value method used allows for precise measurement, even for distorted current curve shapes. The devices feature integrated limit value monitoring with an adjustable switching threshold, delay and hysteresis, as well as a relay output..

Features
  • Real effective value measurement (True RMS) or arithmetic averaging (AA) measurement and contactless through-hole technology
  • Limit value monitoring for overcurrent or undercurrent
  • Relay output by means of the open-circuit / closed-circuit principle
  • Adjustable trigger delay for filtering current peaks
  • Operational status and error display on a front panel LED and output signalling according to NE43, NE44, NE107
  • Galvanic four-way insulation for secure isolation according to IEC/EN 61010-2-201


Classifications

ETIM 8.0
EC002475
ETIM 9.0
EC002475
ETIM 10.0
EC002475
ECLASS 14.0
27-21-01-23
ECLASS 15.0
27-21-01-23
