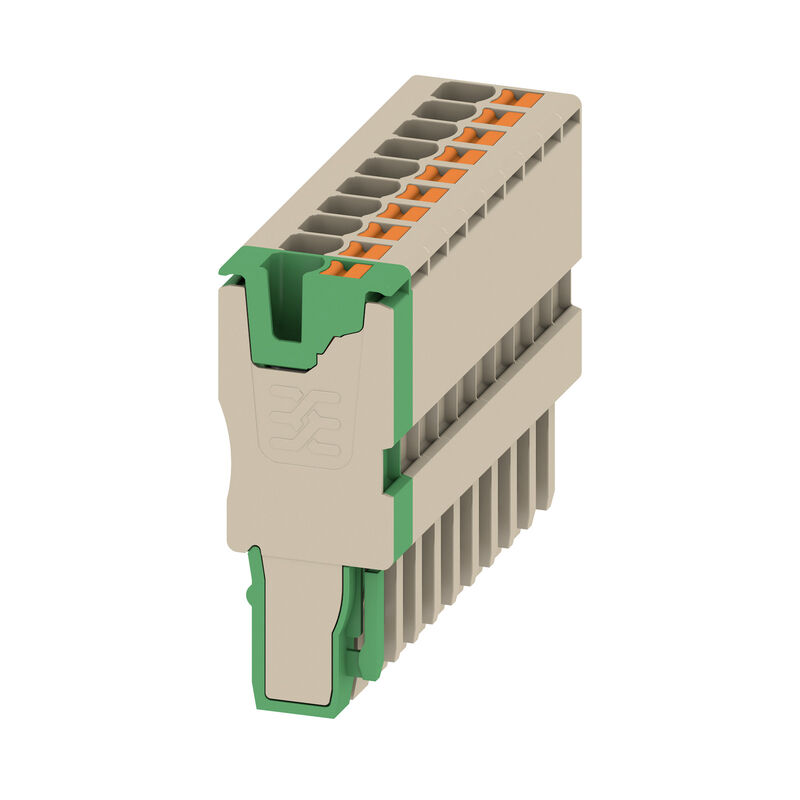

APG 2.5/10-9BG-GN

Plug, 2.5 mm², 800 V, 24 A, Number of poles: 10, beige

Produkt ID 2712810000

Version	Plug, 2.5 mm², 800 V, 24 A, Number of poles: 10, beige
Order No.	2712810000
Type	APG 2.5/10-9BG-GN
GTIN (EAN)	4050118755299
Qty.	20 Styk

Storage temperature	-25 °C...55 °C
Continuous operating temp., min.	-60 °C
Continuous operating temp., max.	130 °C

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

Material	Wemid
Colour	beige
Colour of operational elements	orange
UL 94 flammability rating	V-0

Type of mounting

Plugged

Blade size	0.6 x 3.5 mm
Clamping range, max.	2,5 mm²
Clamping range, min.	0,14 mm²
Connection cross-section, stranded, max.	2,5 mm²
Connection cross-section, stranded, min.	0,5 mm²
Connection direction	top
Gauge to IEC 60947-1	A3
Number of connections	10
Stripping length	10 mm
Type of connection	PUSH IN
Wire connection cross section AWG, max.	AWG 12
Wire connection cross section AWG, min.	AWG 28
Wire connection cross section, finely stranded, max.	2,5 mm²
Wire connection cross section, finely stranded, min.	0,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.	2,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.	0,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	2,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	0,5 mm²
Wire connection cross-section, solid core, max.	2,5 mm²
Wire connection cross-section, solid core, min.	0,5 mm²

Number of poles	10
Standards	In accordance with IEC 60947-7-1
Wire connection cross section AWG, max.	AWG 12
Wire connection cross section AWG, min.	AWG 28

Rated cross-section	2,5 mm²
Rated voltage	800 V
Rated DC voltage	800 V
Rated current	24 A
Current at maximum wires	24 A
Standards	In accordance with IEC 60947-7-1
Rated impulse withstand voltage	8 kV
Pollution severity	3
Surge voltage category	III

Approval/Certificate/Document of Conformity	[Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_205963)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2712810000)
User Documentation	[User Manual APGTB FT](https://mdcop.weidmueller.com/mediadelivery/asset/900_229205)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)
