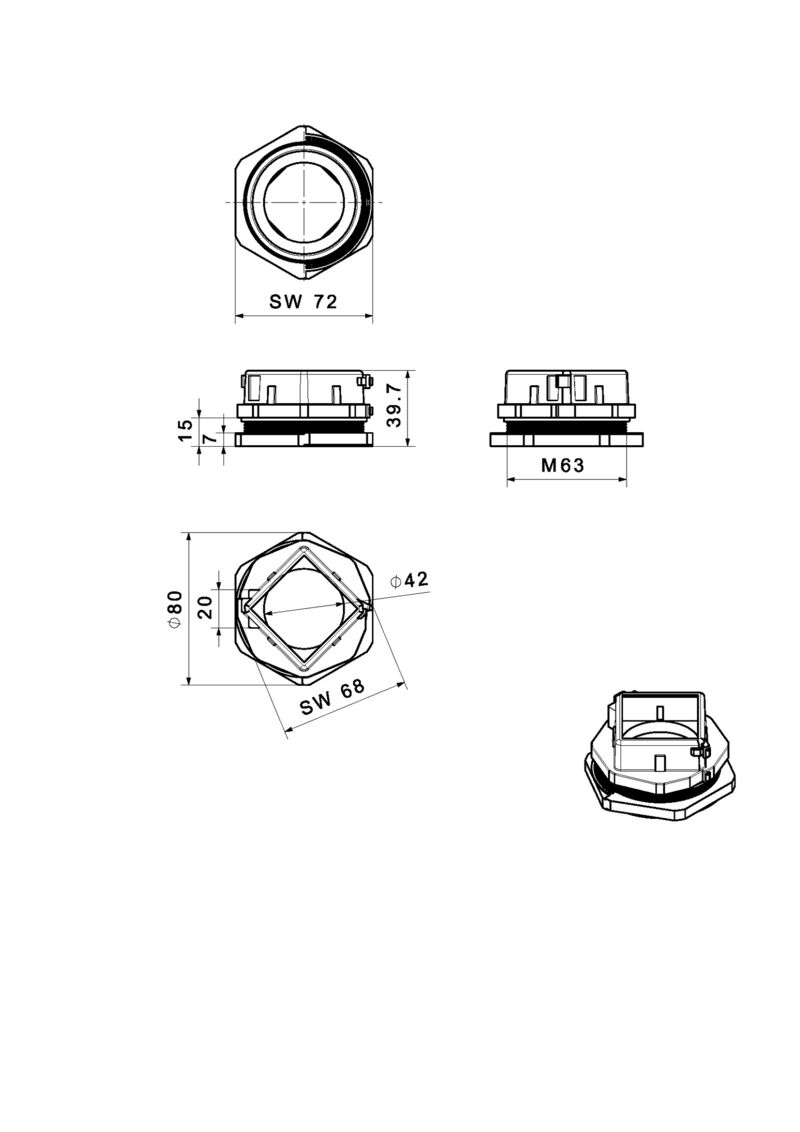

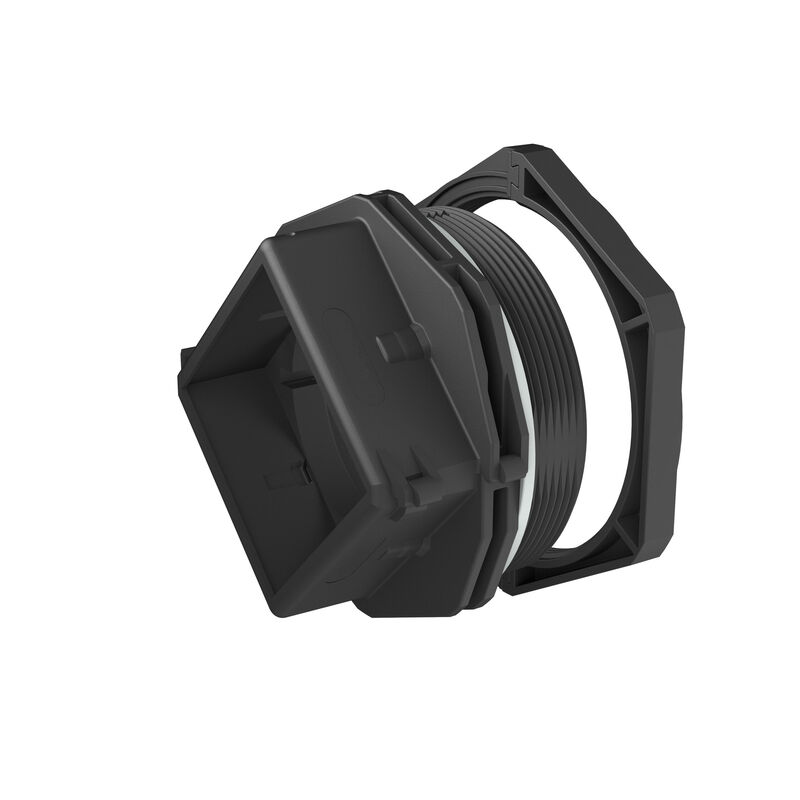

Egenskaber
| Version | separable cable gland, Cabtite (cable entry system), Polyamide, glass fibre-reinforced, Deep black, Height: 24.7 mm, M 63, -40 °C…120 °C, IP66 |
| Order No. | 2584120000 |
| Type | CABTITE CGS M63 BK |
| GTIN (EAN) | 4050118617238 |
| Qty. | 5 Styk |
| Depth | 39,7 mm |
| Depth (inches) | 1,563 inch |
| Height | 24,7 mm |
| Height (inches) | 0,972 inch |
| Width | 72 mm |
| Width (inches) | 2,835 inch |
| Length | 39,7 mm |
| Length (inches) | 1,563 inch |
| Net weight | 43,5 g |
| Operating temperature | -40 °C...120 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| AF size 1 | 68 mm |
| AF size 2 | 82 mm |
| External thread | M 63 |
| Halogen | No |
| Length of thread | 15 mm |
| Material | Polyamide, glass fibre-reinforced |
| Opening diameter | 63 mm |
| Pitch of thread | 1,5 mm |
| Protection degree | IP66 |
| Sealing | TPE |
| Sealing element | 1 large sealing element or 4 small sealing elements |
| Silicone | No |
| Tightening torque, max. | 7 Nm |
| Tightening torque, min. | 6,8 Nm |
| UL 94 flammability rating | V-0 |
| Approval/Certificate/Document of Conformity | [EU Declaration of Conformity - Cable entry system](https://mdcop.weidmueller.com/mediadelivery/asset/900_252380) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_80060) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2584120000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2584120000) |
| User Documentation | [Installation Instructions](https://mdcop.weidmueller.com/mediadelivery/asset/900_86820) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000441 |
| ETIM 7.0 | EC000441 |
| ETIM 8.0 | EC000441 |
| ETIM 9.0 | EC000441 |
| ECLASS 9.0 | 27-14-44-32 |
| ECLASS 9.1 | 27-14-44-32 |
| ECLASS 10.0 | 27-14-44-32 |
| ECLASS 11.0 | 27-14-44-32 |
| ECLASS 12.0 | 27-14-08-01 |
| ECLASS 13.0 | 27-14-08-01 |
| ECLASS 14.0 | 27-14-08-01 |
| Approvals |  |
| ROHS | Conform |
