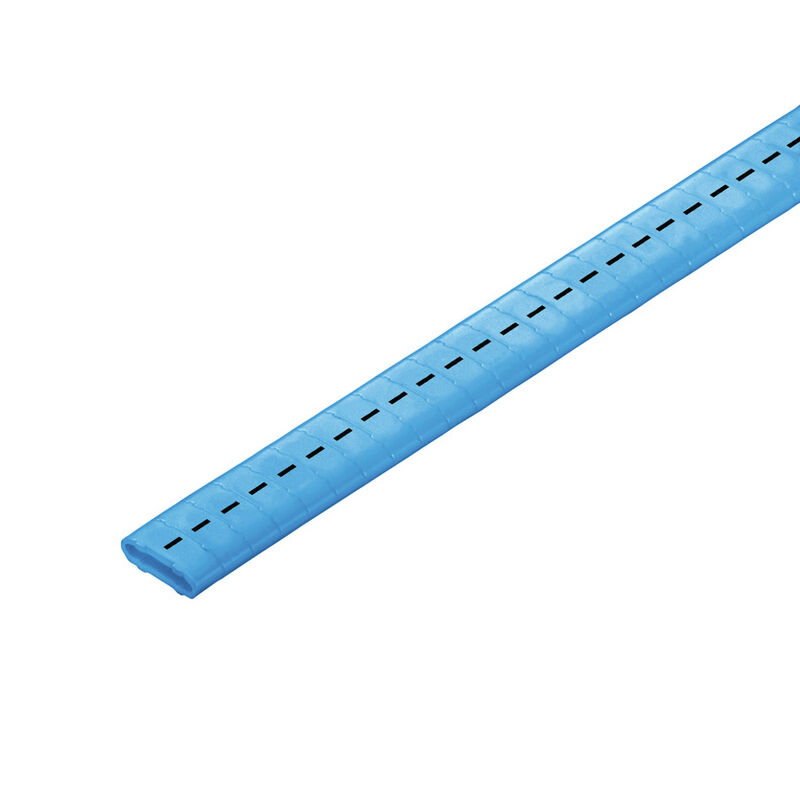

CableLine, Conductor and cable markers, 10 - 317 mm, 4 x 11.3 mm, blue

Item No. 1568301741
Download data sheet Product Downloads Engineering Support
Accessories 2 Related products 1
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Caractéristiques générales Vezeték és kábeljelölők Classifications

Approvals

ROHS
Conform

General ordering data

Version
CableLine, Conductor and cable markers, 10 - 317 mm, 4 x 11.3 mm, blue
Order No.
1568301741
Type
CLI M 2-4 BL/WS - CD
GTIN (EAN)
4008190012403
Qty.
500 items

Dimensions and weights

Depth
3 mm
Depth (inches)
0.118 inch
Height
4 mm
Height (inches)
0.157 inch
Width
11.3 mm
Width (inches)
0.445 inch
Net weight
0.15 g

Temperatures

Operating temperature range
-30...80 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Caractéristiques générales

Barevný
bleu
Barva tisku
fehér
empfohlene Industrien
Process
Machinery
Halogen
Yes
Imprint
-
Material colour according to resistance code
6
Number of markers per packaging unit
  • Form of supply:
    Reel
Número de señalizadores por combinación
1 Reel = Conductor and cable markers
Operating temperature range
-30...80 °C
Operating temperature range, max.
80 °C
Orientation of print
horizontal
Printed characters
Symbols
Printing method
hot-embossing
Rozsah provozní teploty, min.
-30 °C
Type of printing
Standard
UL 94 flammability rating
V-0
Version
CD
Width
11.3 mm
Základní materiál
PVC, soft, without Cadmium

Vezeték és kábeljelölők

Conductor cross-section, max.
500 mm²
Conductor cross-section, min.
16 mm²
Conductor O.D.
10 - 317 mm
Conductor O.D., max.
317 mm
Conductor O.D., min.
10 mm
Cross-section for connected wire
16 - 500 mm²
Halogen
Yes

Classifications

ETIM 8.0
EC001530
ETIM 9.0
EC001530
ETIM 10.0
EC001530
ECLASS 14.0
27-28-11-02
ECLASS 15.0
27-28-11-02
