Egenskaber

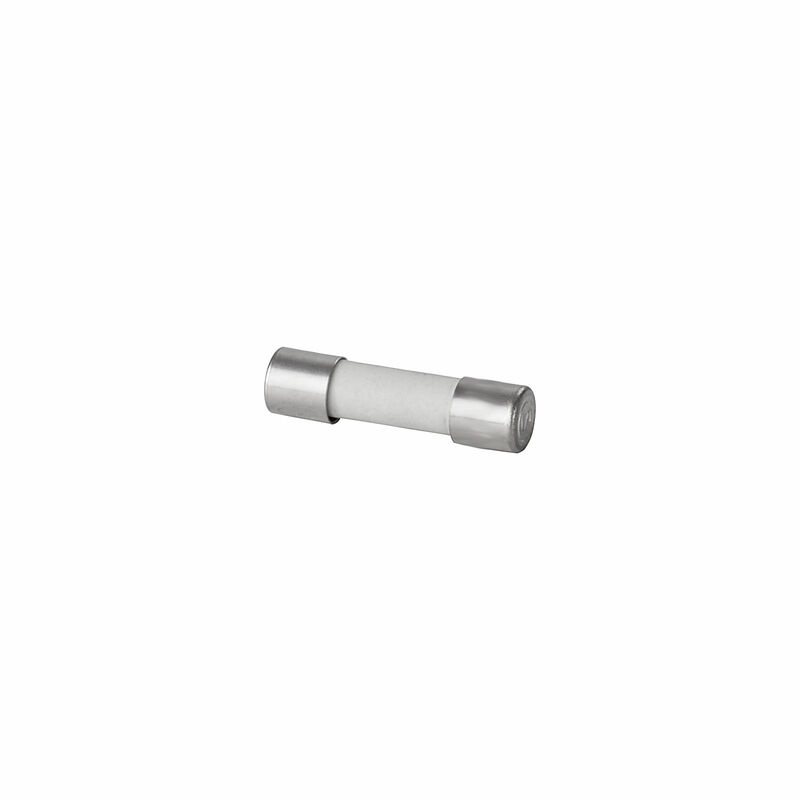

| Version | Miniature fuse, quick-acting, 3.15 A, G-Si. 5 x 20 |
| Order No. | 0431100000 |
| Type | G 20/3.15A/F |
| GTIN (EAN) | 4008190012977 |
| Qty. | 10 Styk |
| Depth | 5 mm |
| Depth (inches) | 0,197 inch |
| Height | 20 mm |
| Height (inches) | 0,787 inch |
| Width | 5 mm |
| Width (inches) | 0,197 inch |
| Net weight | 1,08 g |
| Colour | Light Grey |
| Version | Fuse accessories |
| Cartridge fuse | G-Si. 5 x 20 |
| Characteristics | quick-acting |
| Colour | Light Grey |
| Current | 3,15 A |
| Melting integral | 4 A²s |
| Optical function display | No |
| Power output (@ 1.5 In) | 2,2 W |
| Rated breaking capacity | 1,5 kA |
| Version | Fuse accessories |
| Voltage drop | 220 mV |
| Rated voltage | 250 V |
| Rated current | 3,15 A |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=0431100000&norm=0) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000035 |
| ETIM 7.0 | EC000035 |
| ETIM 8.0 | EC002704 |
| ETIM 9.0 | EC002704 |
| ECLASS 9.0 | 27-14-20-01 |
| ECLASS 9.1 | 27-14-20-01 |
| ECLASS 10.0 | 27-14-20-01 |
| ECLASS 11.0 | 27-14-20-01 |
| ECLASS 12.0 | 27-14-20-01 |
| ECLASS 13.0 | 27-14-20-01 |
| ROHS | Conform |
