Egenskaber

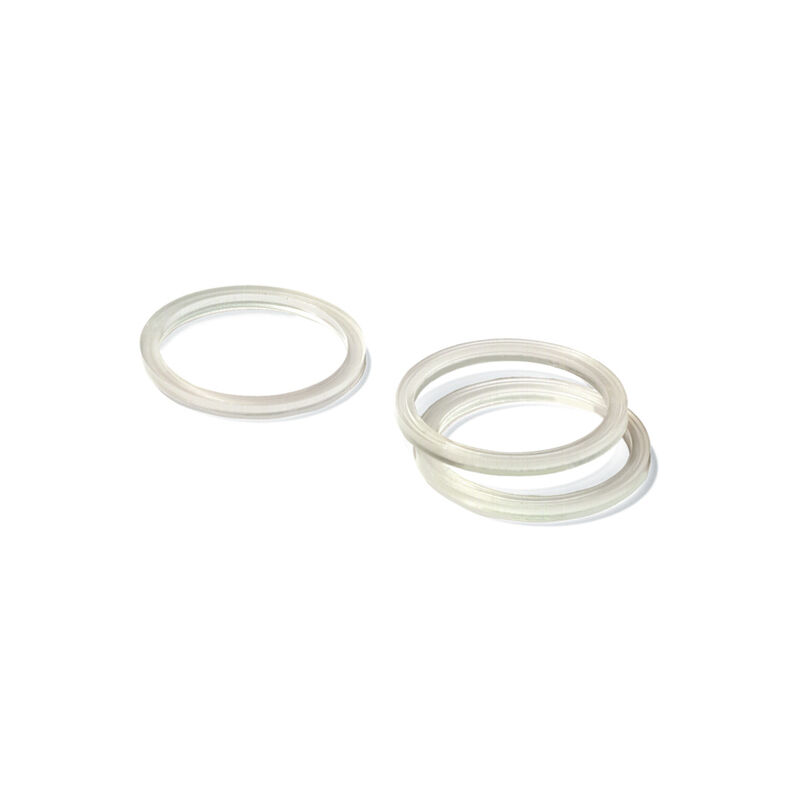

| Version | GWDR PO (flat gasket - polyethylene), Sealing ring, PG 21, Polyethylene |
| Order No. | 1719490000 |
| Type | GWDR PG21-PO |
| GTIN (EAN) | 4008190352752 |
| Qty. | 100 Styk |
| Height | 3 mm |
| Height (inches) | 0,118 inch |
| Net weight | 0,52 g |
| Operating temperature | -30 °C...90 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Cable glands | PG 21 |
| Diameter of sealing ring | 33,5 mm |
| External thread | PG 21 |
| Inside diameter D2 | 28,3 mm |
| Internal thread | PG 21 |
| Material | Polyethylene |
| Number of wires | 1 |
| O.D. | 33,5 mm |
| Operating temperature range, max. | 90 °C |
| Operating temperature range, min. | -30 °C |
| Sealing | PE-HD |
| Silicone | Yes |
| Thickness | 3 mm |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_54397) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1719490000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1719490000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001181 |
| ETIM 7.0 | EC001181 |
| ETIM 8.0 | EC001181 |
| ETIM 9.0 | EC001181 |
| ECLASS 9.0 | 27-43-03-19 |
| ECLASS 9.1 | 27-14-44-90 |
| ECLASS 10.0 | 27-43-03-19 |
| ECLASS 11.0 | 27-43-03-19 |
| ECLASS 12.0 | 27-43-03-19 |
| ECLASS 13.0 | 27-43-03-19 |
| ECLASS 14.0 | 27-43-03-19 |
| ROHS | Conform |
Er tilbehør til
-
Produkt ID:1569020000Pakningsenhed:25 Styk
VG K (standard plastic cable gland), Cable glands, straight, PG 21, 11 mm, OD min. 13 - OD max. 18 mm, IP54, IP66, IP67, IP68 - 5 bar (30 min.), Polyamide 6
-
Produkt ID:1569110000Pakningsenhed:25 Styk
VG MS (standard brass cable gland), Cable glands, straight, PG 21, 7.2 mm, OD min. 13 - OD max. 18 mm, IP54, IP66, IP67, IP68 - 5 bar (30 min.), IP69K, Brass, nickel-plated
-
Produkt ID:1909810000Pakningsenhed:25 Styk
VG K (standard plastic cable gland), Cable glands, straight, PG 21, 11 mm, OD min. 13 - OD max. 18 mm, Polyamide 6
