Egenskaber

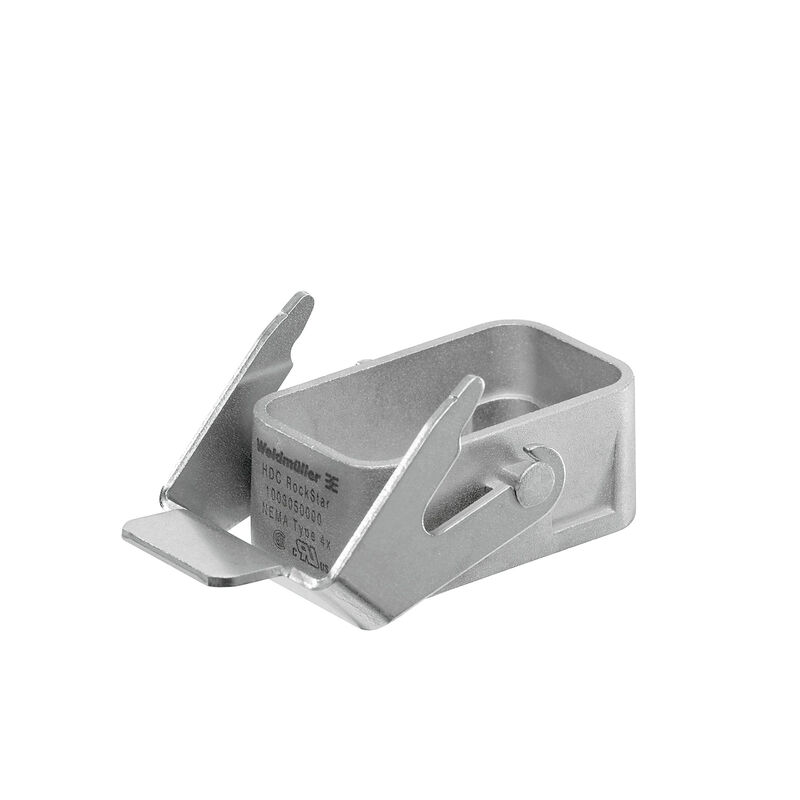

| Version | HDC enclosures, Size: HQ, Protection degree: IP65 (in plugged condition), Bulkhead housing, Side-locking clamp on lower side, Standard |
| Order No. | 1003050000 |
| Type | HDC HQM ALU |
| GTIN (EAN) | 4032248697984 |
| Qty. | 1 Styk |
| Height | 42 mm |
| Height (inches) | 1,654 inch |
| Width | 35 mm |
| Width (inches) | 1,378 inch |
| Mounting dimension - height | 13 mm |
| Mounting dimension - width | 32 mm |
| Net weight | 62 g |
| Limit temperature | -40 °C ... 125 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Chemical resistance |
|

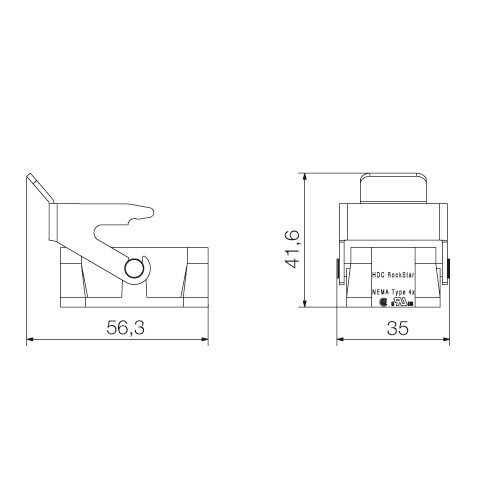

| Height of housing B | 21 mm |
| Hole pitch length A2 | 32 mm |
| Total length housing | 46 mm |
| Width housing C | 29 mm |
| EMC housings | Yes |
| Housing main material | Zinc diecast |
| Material of locking element | Stainless steel, rust-proof |
| Protection degree | IP65 (in plugged condition) |
| Series | HQ |
| Surface finish | nickel-plated |
| BG | HQ |
| Clamp version | Side-locking clamp |
| Colour (RAL) | RAL 7001 |
| Design | Standard |
| Design of housing | Bulkhead housing |
| Design of locking system | Side-locking clamp on lower side |
| Sealing | NBR |
| Size | HQ |
| Suitable for ModuPlug® | No |
| Top part/bottom part/lid | lower part |
| Type | Bulkhead (feed-through) |
| Product information | When mounting the housings, make sure that the flat gasket is correctly seated. |
