Egenskaber

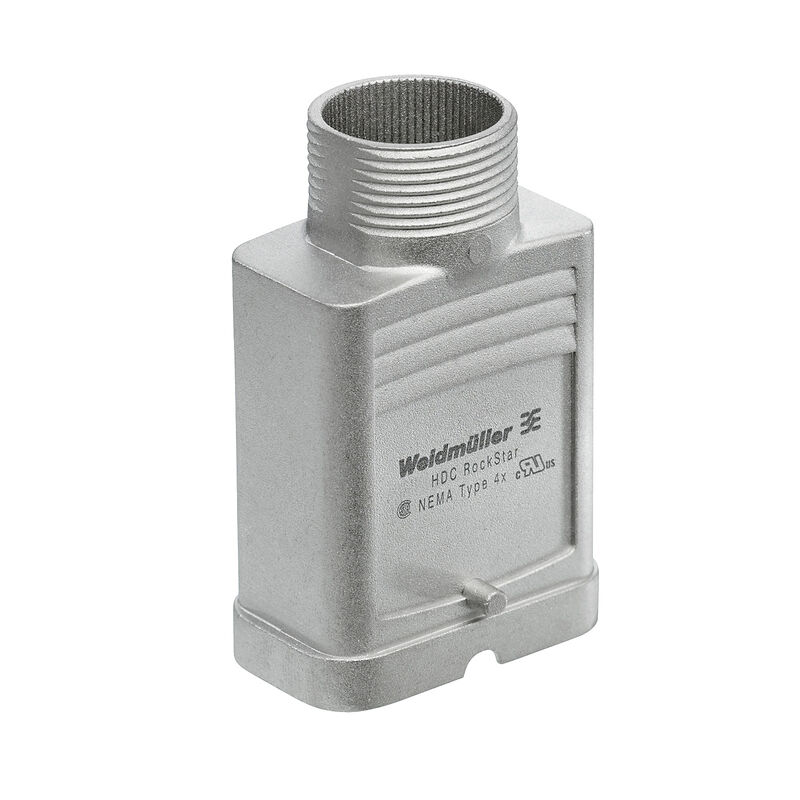

| Version | HDC enclosures, Size: HQ, Protection degree: IP65 (in plugged condition), Cable entry from top, Plug housing, Side-locking clamp on lower side, Standard, Size of cable entries: PG 21 |
| Order No. | 2937380000 |
| Type | HDC HQM TOLU 1PG21 WO |
| GTIN (EAN) | 4099986694194 |
| Qty. | 1 Styk |

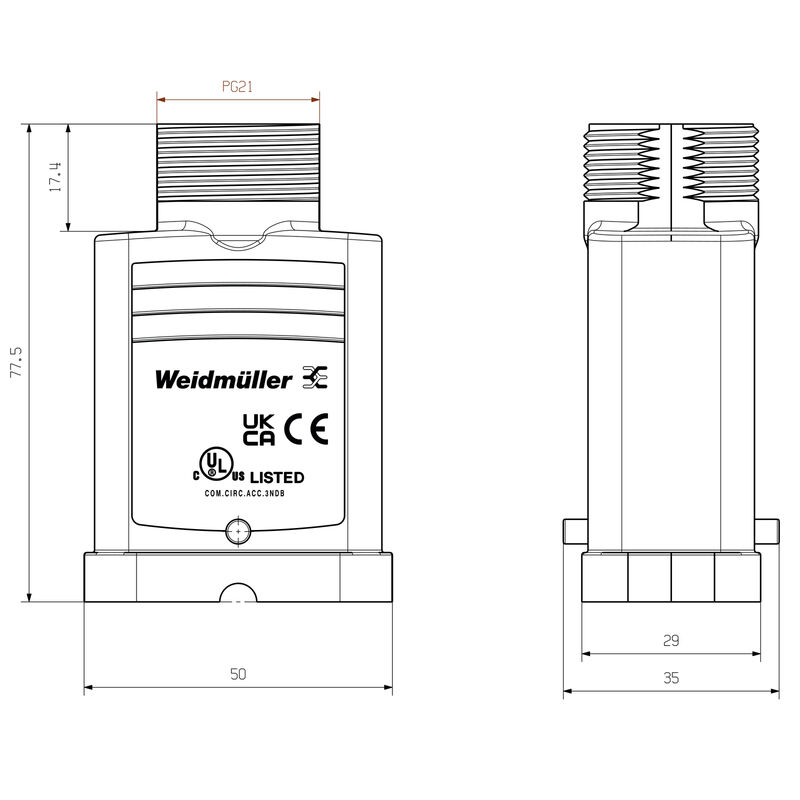

| Depth | 50 mm |
| Depth (inches) | 1,968 inch |
| Height | 78 mm |
| Height (inches) | 3,071 inch |
| Width | 35 mm |
| Width (inches) | 1,378 inch |
| Net weight | 170 g |
| Limit temperature | -40 °C ... 125 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Chemical resistance |
|
| Cable entry | w. thread |
| Height of housing B | 78 mm |
| Total length housing | 50 mm |
| Width housing C | 29 mm |
| EMC housings | Yes |
| Housing main material | Zinc diecast |
| Protection degree | IP65 (in plugged condition) |
| Series | HQ |
| Surface finish | nickel-plated |
| BG | HQ |
| Cable entry | w. thread |
| Clamp version | Side-locking clamp |
| Colour (RAL) | RAL 7001 |
| Design | Standard |
| Design of housing |
Cable entry from top
Plug housing |
| Design of locking system | Side-locking clamp on lower side |
| External thread | PG 21 |
| Number of cable entry on top | 1 |
| Number of cable entry sideways | 0 |
| Size | HQ |
| Size of cable entries | PG 21 |
| Suitable for ModuPlug® | No |
| Top part/bottom part/lid | upper part |
| Type | Plug |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_319621) |
| Catalogues | [Catalogues in PDF-format](https://www.weidmueller.com/int/service/technical_product_catalogues.jsp) |
| ETIM 6.0 | EC000437 |
| ETIM 7.0 | EC000437 |
| ETIM 8.0 | EC000437 |
| ETIM 9.0 | EC000437 |
| ECLASS 9.0 | 27-44-02-02 |
| ECLASS 9.1 | 27-44-02-02 |
| ECLASS 10.0 | 27-44-02-02 |
| ECLASS 11.0 | 27-44-02-02 |
| ECLASS 12.0 | 27-44-02-02 |
| ECLASS 13.0 | 27-44-02-02 |
| ECLASS 14.0 | 27-44-02-02 |
| ROHS | Conform |
