Egenskaber

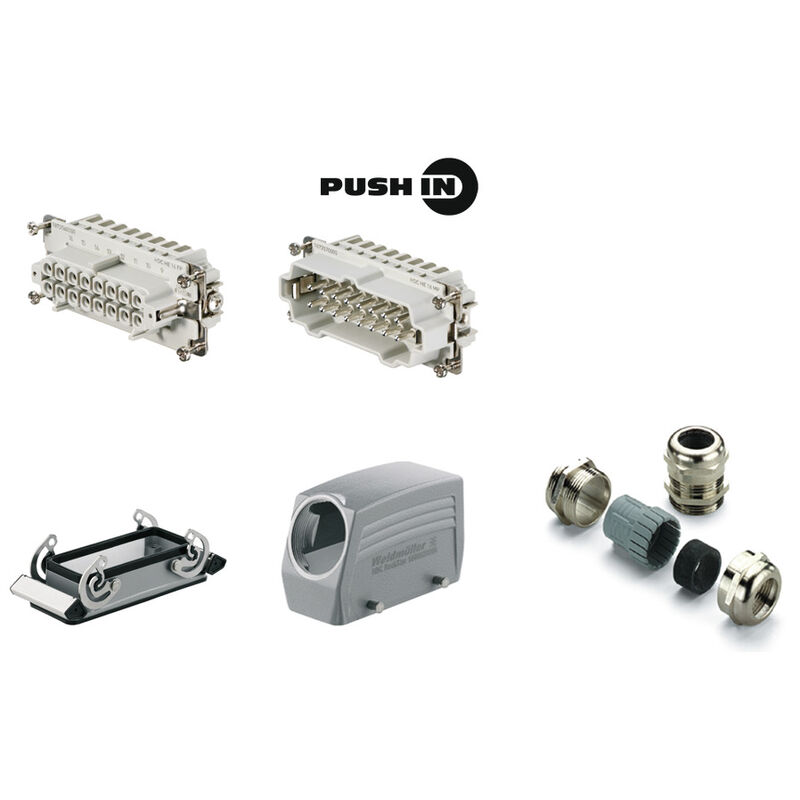

| Version | RockStar® HDC kits-Heavy-duty connectors, Kit, HE, Size: 6, Poles: 16, PUSH IN, 500 V, 16 A, diecast aluminium, M 25 |
| Order No. | 1027690000 |
| Type | HDC KIT HE-P 16.120 M |
| GTIN (EAN) | 4032248770847 |
| Qty. | 1 Styk |
| Net weight | 635 g |
| Limit temperature | -40 °C ... 100 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6bI, 6c |
| REACH SVHC |
Lead 7439-92-1
Potassium perfluorobutane sulfonate 29420-49-3 |
| SCIP | bfb1c983-6f18-4ba4-8907-38aad6aee076 |
| Housing main material | diecast aluminium |
| Material of locking element | Stainless steel, rust-proof |
| Protection degree | IP65 (in plugged condition) |
| Series | HE |
| Surface finish | Powder coating |
| BG | 6 |
| Number of cable entry sideways | 1 |
| Size | 6 |
| Size of cable entries | M 25 |
| Type of connection | PUSH IN |
| BG | 6 |
| Cable glands | M 25 |
| Connection type PE | Screw connection |
| Material | diecast aluminium |
| Number of poles | 16 |
| Rated current (DIN EN 61984) | 16 A |
| Rated voltage (DIN EN 61984) | 500 V |
| Series | HE |
| Size | 6 |
| BG | 6 |
| Conductor cross-section, max. | 4 mm² |
| Conductor cross-section, min. | 0,5 mm² |
| Material | diecast aluminium |
| Size | 6 |
| Surface finish | Powder coating |
| Type of connection | PUSH IN |
| Approval/Certificate/Document of Conformity | [Manufacturer's declaration](https://mdcop.weidmueller.com/mediadelivery/asset/900_198690) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_97640) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1027690000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1027690000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
| ETIM 6.0 | EC002943 |
| ETIM 7.0 | EC002943 |
| ETIM 8.0 | EC002943 |
| ETIM 9.0 | EC002943 |
| ECLASS 9.0 | 27-44-02-92 |
| ECLASS 9.1 | 27-44-01-90 |
| ECLASS 10.0 | 27-44-02-92 |
| ECLASS 11.0 | 27-44-02-92 |
| ECLASS 12.0 | 27-44-02-92 |
| ECLASS 13.0 | 27-44-02-92 |
| ECLASS 14.0 | 27-44-02-92 |
| ROHS | Conform |
Tilbehør
-
Produkt ID:1203600000Pakningsenhed:100 Styk
Heavy-duty connectors, Accessories, Lock bolts
ConnectorsHeavy duty connectorsAccessoriesCodingCodingSPB
Enkeltdele
-
Produkt ID:1788180000Pakningsenhed:1 Styk
HDC enclosures, Size: 6, Protection degree: IP65 (in plugged condition), Cable entry from side, Plug housing, Side-locking clamp on lower side, Standard, Size of cable entries: M 25
-
Produkt ID:1873560000Pakningsenhed:1 Styk
HDC insert, Female, 500 V, 16 A, Number of poles: 16, PUSH IN, Size: 6
-
Produkt ID:1873570000Pakningsenhed:1 Styk
HDC insert, Male, 500 V, 16 A, Number of poles: 16, PUSH IN, Size: 6
-
Produkt ID:1772230000Pakningsenhed:25 Styk
VG MS (standard brass cable gland), Cable glands, straight, M 25, 8 mm, OD min. 10 - OD max. 14 mm, IP54, IP66, IP67, IP68 - 5 bar (30 min.), IP69K, Brass, nickel-plated
-
Produkt ID:1208600000Pakningsenhed:1 Styk
HDC enclosures, Size: 6, Protection degree: IP65 (in plugged condition), Bulkhead housing, Side-locking clamp on lower side, Side-locking clamp not replaceable, Standard
