Egenskaber
| Version | Accessories |
| Order No. | 2566050000 |

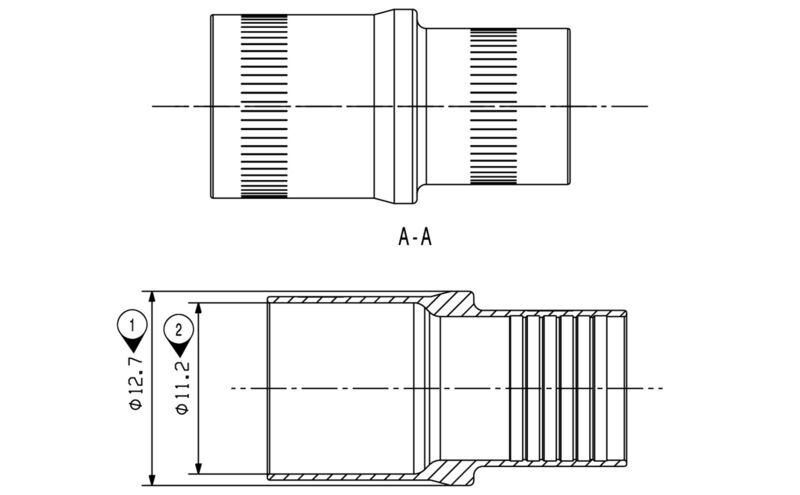

| Type | HDC MBUS CF 7.9 |
| GTIN (EAN) | 4050118575897 |
| Qty. | 10 Styk |
| Net weight | 0,001 g |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 6eabd5ae-2d6b-409e-8bdf-87c27ee10e40 |
| Material | Brass |
| Outer cable diameter |
|
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_96220) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2566050000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2566050000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002943 |
| ETIM 7.0 | EC002943 |
| ETIM 8.0 | EC002943 |
| ETIM 9.0 | EC002943 |
| ECLASS 9.0 | 27-44-02-92 |
| ECLASS 9.1 | 27-44-01-92 |
| ECLASS 10.0 | 27-44-02-92 |
| ECLASS 11.0 | 27-44-02-92 |
| ECLASS 12.0 | 27-44-02-92 |
| ECLASS 13.0 | 27-44-02-92 |
| ECLASS 14.0 | 27-44-02-92 |
| ROHS | Conform |
Tilbehør
ConnectorsHeavy duty connectorsRockStar® ModuPlugData insertsField-attachable data connectorTools
Er tilbehør til
ConnectorsHeavy duty connectorsRockStar® ModuPlugData insertsField-attachable data connectorCat. 6, X-typeData use
ConnectorsHeavy duty connectorsRockStar® ModuPlugData insertsField-attachable data connectorCat. 5, D-typeData use
