Egenskaber
| Order No. | 2708520000 |

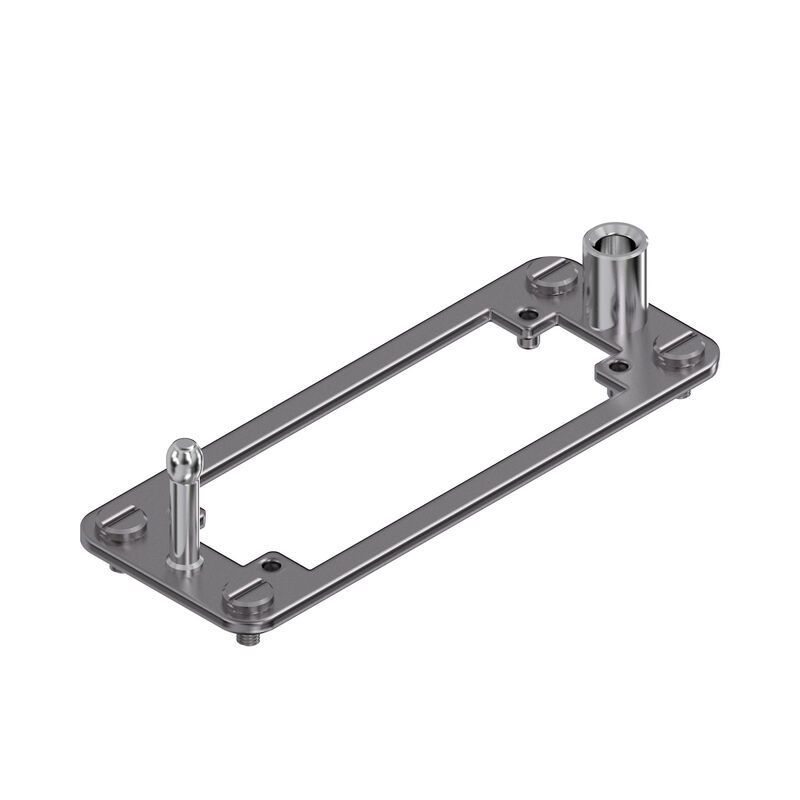

| Type | HDC MDF 24B |
| GTIN (EAN) | 4064675006831 |
| Qty. | 1 Styk |
| Depth | 55 mm |
| Depth (inches) | 2,165 inch |
| Height | 44,5 mm |
| Height (inches) | 1,752 inch |
| Width | 146 mm |
| Width (inches) | 5,748 inch |
| Net weight | 45 g |
| REACH SVHC | / |
| RoHS Compliance Status | Compliant without exemption |
| Product information |
Floating on both sides, an offset of ± 2mm can be compensated.
Floating on one side, an offset of ± 1mm can be compensated. |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_166385) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002312 |
| ETIM 7.0 | EC002312 |
| ETIM 8.0 | EC002312 |
| ETIM 9.0 | EC002312 |
| ECLASS 9.0 | 27-44-02-06 |
| ECLASS 9.1 | 27-44-02-06 |
| ECLASS 10.0 | 27-44-02-06 |
| ECLASS 11.0 | 27-44-02-06 |
| ECLASS 12.0 | 27-44-02-92 |
| ECLASS 13.0 | 27-44-02-92 |
| ECLASS 14.0 | 27-44-02-92 |
