Egenskaber
| Order No. | 2003830050 |

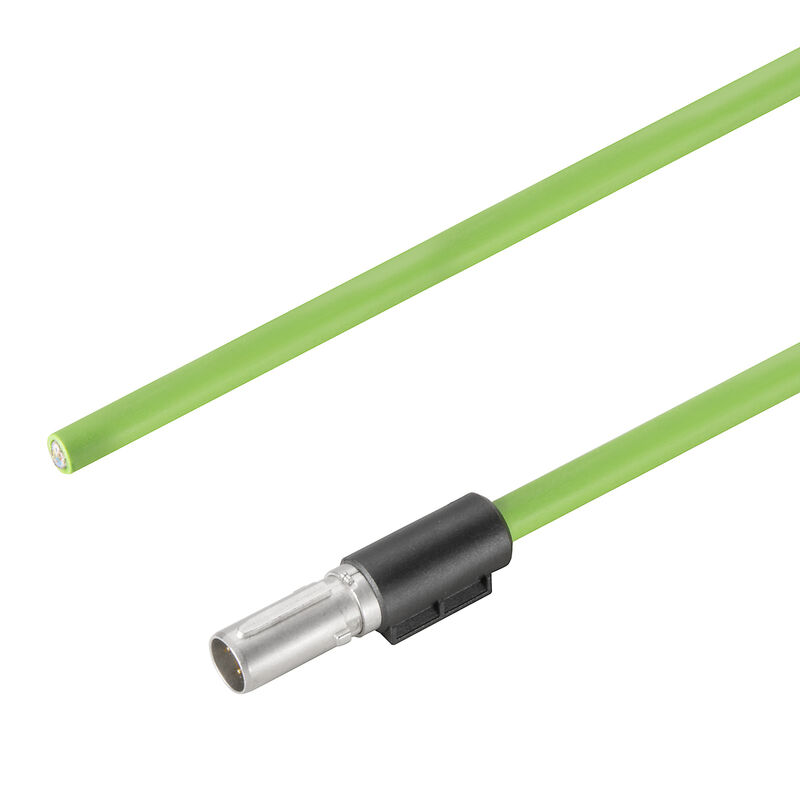

| Type | HDC XX6A02 MOXXXXX-0050 |
| GTIN (EAN) | 4050118522358 |
| Qty. | 1 Styk |
| Net weight | 0,001 g |
| Limit temperature | -30 °C ... 90 °C |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 2ac5c63f-7f5e-465a-860d-49cfb7bbe5b5 |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| Cable length | 0,5 m |
| Category | Cat. 6A |
| Coding | X-coded |
| Contact surface | Au (Gold) |
| Insulation strength | ≥ 108 Ω |
| Module side version | Male |
| Number of poles | 8 |
| Opposite side version | open |
| Plugging cycles | ≥ 100 |
| Pollution severity | 2 |
| Rated current | 0,5 A |
| Rated voltage | 50 V |
| Transmission rate |
10 Gbps
10 Gbit/s |
| Type | Pin |
| Cable length | 0,5 m |
| Colour coding |
white / orange
orange white / green green white / brown brown white / blue blue |
| Halogen | halogen-free, according to IEC 60754-1 |
| Insulation |
PE
Expanded |
| Outside diameter |
|
| Outside diameter | 6.4 mm ± 0.3 |
| Sheath material | PUR |
| Sheathing colour | green |
| Shielded | Yes |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_107621) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2003830050) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002599 |
| ETIM 7.0 | EC002599 |
| ETIM 8.0 | EC002599 |
| ETIM 9.0 | EC002599 |
| ECLASS 9.0 | 27-06-03-07 |
| ECLASS 9.1 | 27-06-03-08 |
| ECLASS 10.0 | 27-06-03-07 |
| ECLASS 11.0 | 27-06-03-07 |
| ECLASS 12.0 | 27-06-03-07 |
| ECLASS 13.0 | 27-06-03-07 |
| ECLASS 14.0 | 27-06-03-07 |
| ROHS | Conform |
