HS 1.6-4.8/25 MM W
HS 1.6-4.8/25 MM W

HS 1.6-4.8/25 MM W

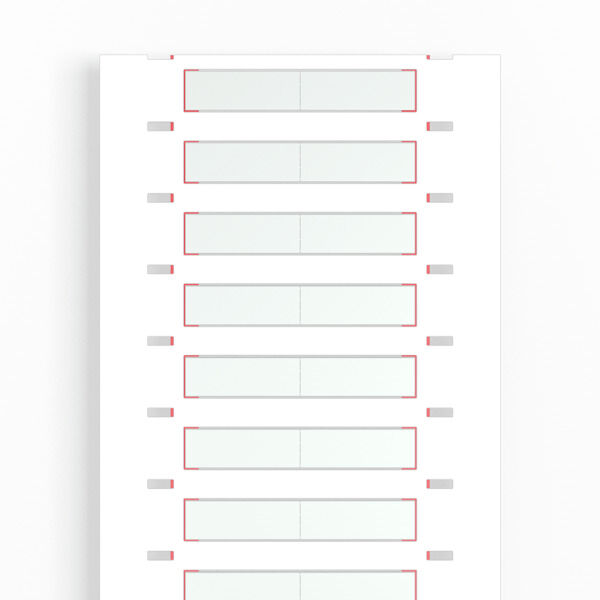

Segnafili e segnacavi, 1.6 - 4.8 mm, 25.4 x 7.6 mm, bianco

Product ID 2437550000
Gegevensblad downloaden Product Downloads Engineering Support
Toebehoren 3 Verwante producten 2
Approvals Általános rendelési adatok Dimensiones y pesos Temperatures Conformité environnementale du produit General data Conductor and cable markers Classifications

Approvals

ROHS
Conform

Általános rendelési adatok

Version
Segnafili e segnacavi, 1.6 - 4.8 mm, 25.4 x 7.6 mm, bianco
Order No.
2437550000
Type
HS 1.6-4.8/25 MM W
GTIN (EAN)
4050118461343
Qty.
2.000 items

Dimensiones y pesos

Depth
0,77 mm
깊이 (인치)
0,03 inch
Height
25,4 mm
Height (inches)
1 inch
Width
7,6 mm
Width (inches)
0,299 inch
Net weight
0,3 g

Temperatures

Operating temperature range
-55...135 °C

Conformité environnementale du produit

RoHS Compliance Status
Megfelel, kivétel nélkül
REACH SVHC
No SVHC above 0.1 wt%

General data

Basic material
Polyolefine
Colour
white
compatible printer
[THM MULTIMARK](~/p/2599430000)
[THM MULTIMARK PLUS](~/p/2599440000)
[THM-TWINMARK](~/p/1140490000)
Halogen
Yes

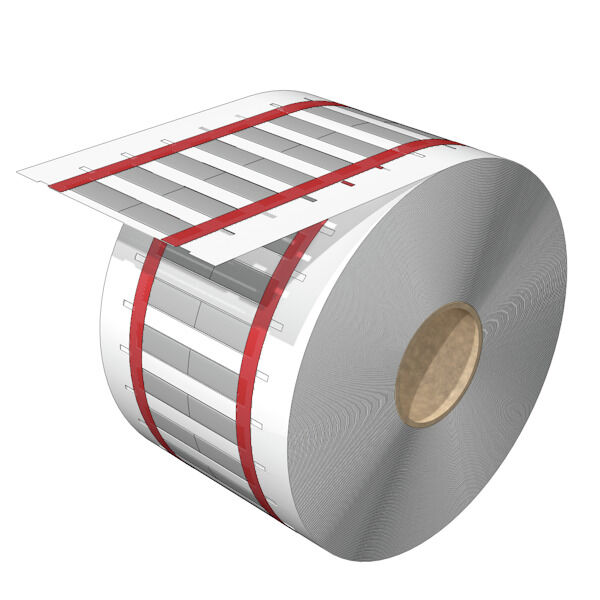

Number per roll
800
Operating temperature range
-55...135 °C
Operating temperature range, max.
135 °C
Operating temperature range, min.
-55 °C
Printed characters
without
Recommended industries
Plant manufacture
Energy
Device manufacturer
Machinery
Type of printing
neutral
Width
7,6 mm

Conductor and cable markers

Conductor cross-section, max.
4 mm²
Conductor cross-section, min.
0,75 mm²
Conductor O.D.
1.6 - 4.8 mm
Conductor O.D., max.
4,8 mm
Conductor O.D., min.
1,6 mm
Cross-section for connected wire
0.75 - 4 mm²
Halogen
Yes
Rate of shrinkage
3:1
Recommended shrinking temperature
90 °C

Classifications

ETIM 8.0
EC001530
ETIM 9.0
EC001530
ETIM 10.0
EC001530
ECLASS 14.0
27-28-11-02
ECLASS 15.0
27-28-11-02
