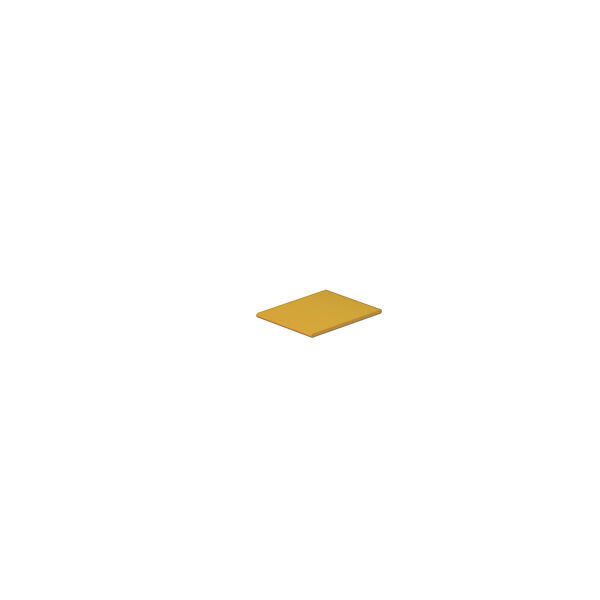

Conductor and cable markers, 3.2 - 9.5 mm, 12.7 x 16.1 mm, yellow

Produkt ID 2526140000
Download datablad Product Downloads Engineering Support
Tilbehør 3 Anvendte produkter 12
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Conductor and cable markers Classifications

Approvals

ROHS
Conform

General ordering data

Verze
Conductor and cable markers, 3.2 - 9.5 mm, 12.7 x 16.1 mm, yellow
Číslo objednávky
2526140000
Typ
HS 3.2-9.5/12 MM Y
GTIN (EAN)
4050118537291
Qty.
2 000 Styk

Dimensions and weights

Hloubka
0,9 mm
Depth (inches)
0,035 inch
Výška
12,7 mm
Height (inches)
0,5 inch
Šířka
16,1 mm
Width (inches)
0,634 inch
Net weight
0,3 g

Temperatures

Rozsah provozní teploty
-55...135 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General data

Barwny
yellow
Campo delle temperature di impiego, max.
135 °C
compatible printer
[THM MULTIMARK](~/p/2599430000)
[THM MULTIMARK PLUS](~/p/2599440000)
[THM-TWINMARK](~/p/1140490000)
Halogenki
Yes
Larghezza
16,1 mm

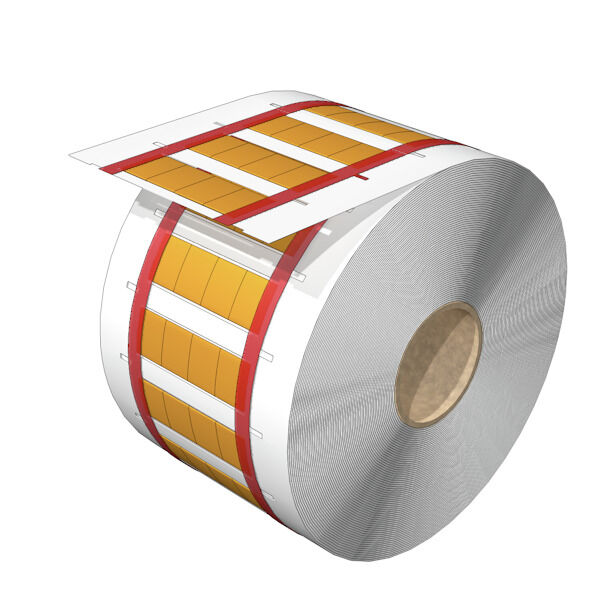

Number per roll
2000
Nyomtatás típusa
neutral
Recommended industries
Plant manufacture
Energy
Device manufacturer
Machinery
Temperaturområde för användning
-55...135 °C
Напечатанные символы
without
Основной материал
Polyolefine
動作温度範囲、最小
-55 °C

Conductor and cable markers

Conductor cross-section, max.
16 mm²
Conductor cross-section, min.
4 mm²
Conductor O.D., max.
9,5 mm
Diamètre extérieur du conducteur
3.2 - 9.5 mm
Diámetro externo del conductor, min.
3,2 mm
Halogen
Yes
Recommended shrinking temperature
90 °C
Sección de conexión del conductor
4 - 16 mm²
Índice de retractabilidad
3:1

Classifications

ETIM 8.0
EC001530
ETIM 9.0
EC001530
ETIM 10.0
EC001530
ECLASS 14.0
27-28-11-02
ECLASS 15.0
27-28-11-02
