Egenskaber

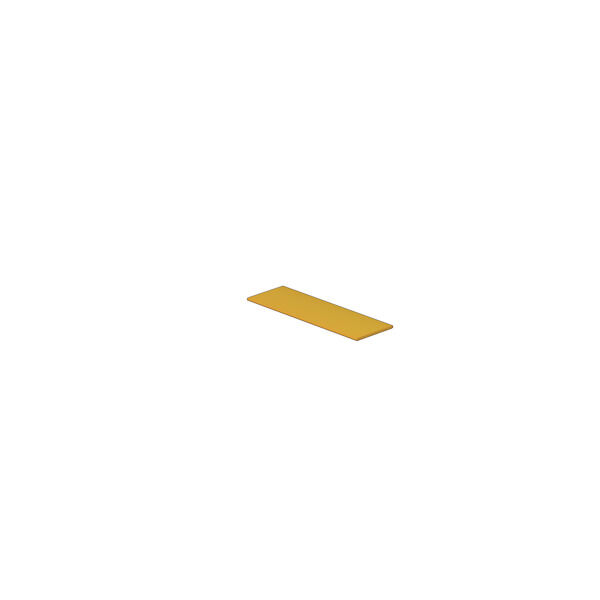

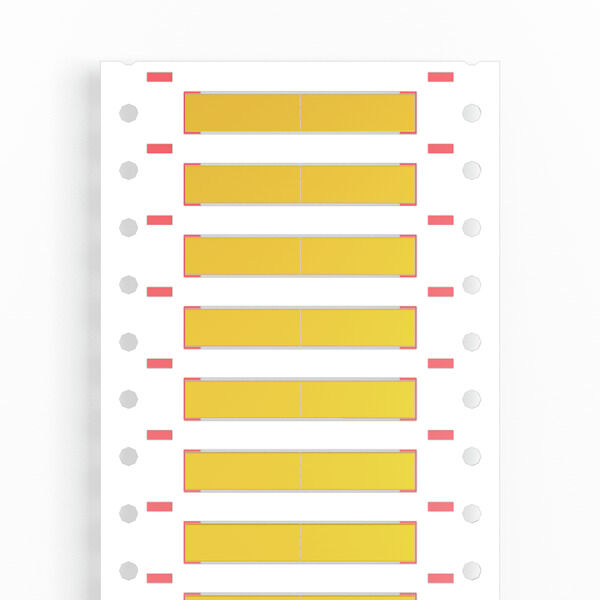

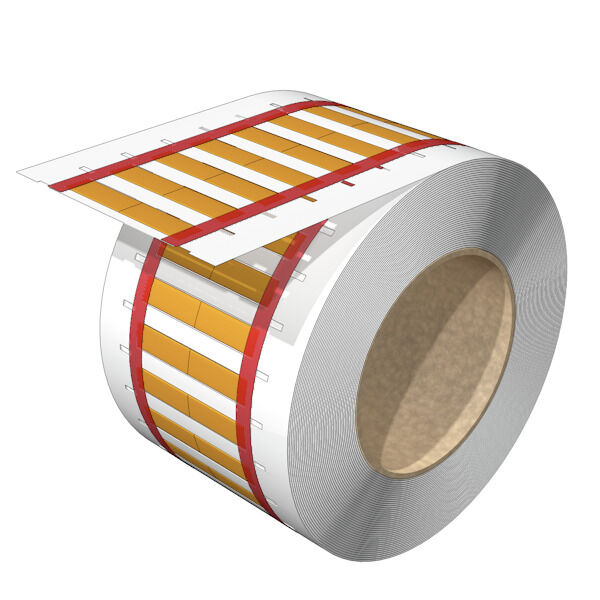

| Version | Conductor and cable markers, 2.8 - 4.2 mm, 25.4 x 8.4 mm, yellow |
| Order No. | 1961980000 |
| Type | HSS-HF 3/16 2.8-4.2/25Y |
| GTIN (EAN) | 4032248642670 |
| Qty. | 8.000 Styk |
| Depth | 0,77 mm |
| Depth (inches) | 0,03 inch |
| Height | 25,4 mm |
| Height (inches) | 1 inch |
| Width | 8,4 mm |
| Width (inches) | 0,331 inch |
| Net weight | 0,336 g |
| Operating temperature range | -55...105 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Colour | yellow |
| compatible printer |
[THM MULTIMARK](~/p/2599430000)
[THM MULTIMARK PLUS](~/p/2599440000) |
| Halogen | No |
| Material | Polyolefine |
| Material colour according to resistance code | 4 |
| Operating temperature range | -55...105 °C |
| Operating temperature range, max. | 105 °C |
| Operating temperature range, min. | -55 °C |
| Recommended industries | Transportation |
| Type of printing | neutral |
| Width | 8,4 mm |
| Conductor cross-section, max. | 4 mm² |
| Conductor cross-section, min. | 1,5 mm² |
| Conductor O.D. | 2.8 - 4.2 mm |
| Conductor O.D., max. | 4,2 mm |
| Conductor O.D., min. | 2,8 mm |
| Cross-section for connected wire | 1.5 - 4 mm² |
| Halogen | No |
| Rate of shrinkage | 2:1 |
| Recommended shrinking temperature | 90 °C |
| Text field height | 8,05 mm |
| Text field width | 25,4 mm |
| Approval/Certificate/Document of Conformity |
[NFX 70-100-1 2006 + NF X 70-100-2 2006](https://mdcop.weidmueller.com/mediadelivery/asset/900_74683)
[BS EN ISO 4589-2 1999](https://mdcop.weidmueller.com/mediadelivery/asset/900_74685) [EN 45545-2:2020](https://mdcop.weidmueller.com/mediadelivery/asset/900_257221) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_65364) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1961980000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1961980000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001530 |
| ETIM 7.0 | EC001530 |
| ETIM 8.0 | EC001530 |
| ETIM 9.0 | EC001530 |
| ECLASS 9.0 | 27-40-04-01 |
| ECLASS 9.1 | 27-40-04-01 |
| ECLASS 10.0 | 27-40-04-01 |
| ECLASS 11.0 | 27-28-11-02 |
| ECLASS 12.0 | 27-28-11-02 |
| ECLASS 13.0 | 27-28-11-02 |
| ECLASS 14.0 | 27-28-11-02 |
| ROHS | Conform |
