Egenskaber

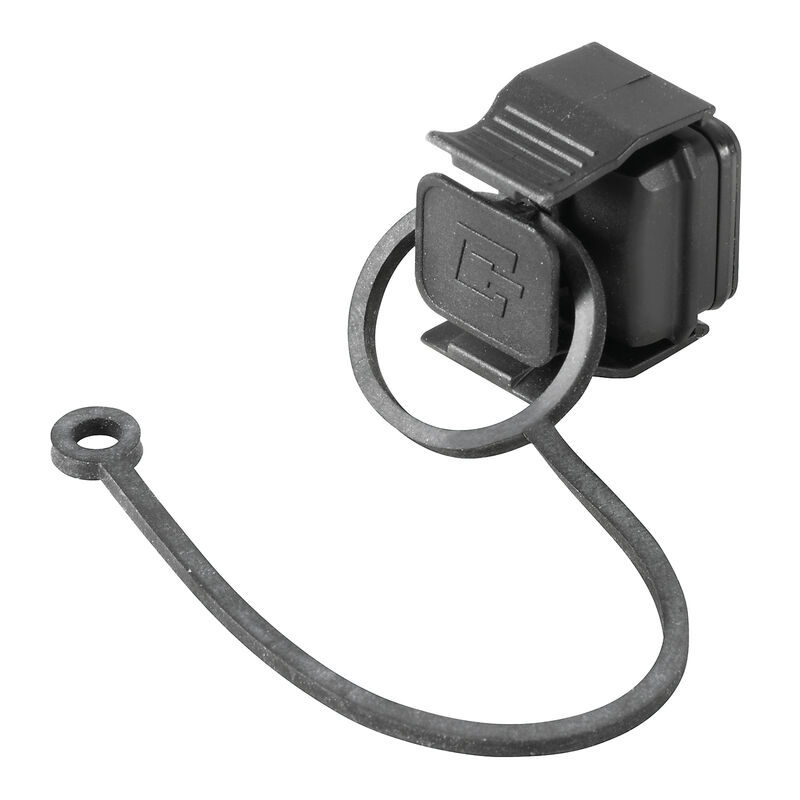

| Version | Flange-mounted housing, protective cap |
| Order No. | 1058310000 |
| Type | IE-BP-V14P |
| GTIN (EAN) | 4032248799404 |
| Qty. | 10 Styk |
| Depth | 22,9 mm |
| Depth (inches) | 0,902 inch |
| Net weight | 4,778 g |
| Operating temperature | -40 °C...70 |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Colour | black |
| Housing main material | PA UL 94 V0 |
| Protection degree | IP67 |
| Type of mounting | Indoors only |
| UL 94 flammability rating | V-0 |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1058310000) |
| User Documentation |
[MAN IE GUIDE DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_40065)
[MAN IE GUIDE EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_40066) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) |
| ETIM 6.0 | EC002314 |
| ETIM 7.0 | EC002314 |
| ETIM 8.0 | EC002314 |
| ETIM 9.0 | EC002314 |
| ECLASS 9.0 | 27-44-02-08 |
| ECLASS 9.1 | 27-44-02-08 |
| ECLASS 10.0 | 27-44-02-08 |
| ECLASS 11.0 | 27-44-02-08 |
| ECLASS 12.0 | 27-44-02-08 |
| ECLASS 13.0 | 27-44-02-08 |
| ECLASS 14.0 | 27-44-02-08 |
| ROHS | Conform |
Er tilbehør til
-
Produkt ID:1068850000Pakningsenhed:1 Styk
Junction box, FreeCon, Hybrid, Module, IP65
-
Produkt ID:1068840000Pakningsenhed:1 Styk
Junction box, FreeCon, Hybrid, Plug-in connector, IP65
-
Produkt ID:1012310000Pakningsenhed:10 Styk
Flange RJ45, IP67, V14 metal flange, RJ45-RJ45 coupler, Standardized flange with RJ45 adapter, Cat.6A / Class EA (ISO/IEC 11801 2010)
-
Produkt ID:1058250000Pakningsenhed:10 Styk
Flange RJ45, IP67, Variant 14 metal, RJ45-RJ45 coupler, Central locking flange with RJ45 adapter, Cat.6A / Class EA (ISO/IEC 11801 2010)
-
Produkt ID:1058270000Pakningsenhed:10 Styk
Flange RJ45, IP67, Variant 14 metal, RJ45 IDC module, Central locking flange with RJ45 adapter, Cat.6A / Class EA (ISO/IEC 11801 2010)
-
Produkt ID:1012320000Pakningsenhed:10 Styk
Flange RJ45, IP67, V14 metal flange, RJ45 IDC module, Standardized flange with RJ45 adapter, Cat.6A / Class EA (ISO/IEC 11801 2010)
-
Produkt ID:1085260000Pakningsenhed:10 Styk
Flange RJ45, IP67, Variant 14 metal, IDC, PROFINET, Cat.5 (ISO/IEC 11801)
-
Produkt ID:1318150000Pakningsenhed:1 Styk
Junction box, FreeCon, SCRJ, Plug-in connector, IP65
-
Produkt ID:1068880000Pakningsenhed:1 Styk
Junction box, FreeCon, RJ45 module, IP65
-
Produkt ID:1068870000Pakningsenhed:1 Styk
Junction box, FreeCon, RJ45, Plug-in connector, IP65
-
Produkt ID:1072900000Pakningsenhed:10 Styk
Hybrid flange, IP67, Cat.5 (ISO/IEC 11801)
-
Produkt ID:1062620000Pakningsenhed:10 Styk
Flange FO, IP67, Variant 14 central cable gland, LC Duplex coupling, Singlemode
-
Produkt ID:1062610000Pakningsenhed:10 Styk
Flange FO, IP67, Variant 14 central cable gland, LC Duplex coupling, Multimode
-
Produkt ID:1058130000Pakningsenhed:10 Styk
Flange FO, IP67, Variant 14 standardized flange, LC Duplex coupling, Multimode
-
Produkt ID:1058150000Pakningsenhed:10 Styk
Flange FO, IP67, Variant 14 standardized flange, LC Duplex coupling, Singlemode
-
Produkt ID:1058120000Pakningsenhed:10 Styk
Flange FO, IP67, Variant 14 standardized flange, SCRJ Duplex coupling, Multimode, POF
-
Produkt ID:1062600000Pakningsenhed:10 Styk
Flange FO, IP67, Variant 14 central cable gland, SCRJ Duplex coupling, Singlemode
-
Produkt ID:1062590000Pakningsenhed:10 Styk
Flange FO, IP67, Variant 14 central cable gland, SCRJ Duplex coupling, Multimode, POF
-
Produkt ID:1058140000Pakningsenhed:10 Styk
Flange FO, IP67, Variant 14 standardized flange, SCRJ Duplex coupling, Singlemode
-
Produkt ID:1312230000Pakningsenhed:1 Styk
Y-distributor, FreeCon, Hybrid, IP65
-
Produkt ID:1068830000Pakningsenhed:1 Styk
Junction box, FreeCon, RJ45 module, Supply, IP65
-
Produkt ID:1068820000Pakningsenhed:1 Styk
Junction box, FreeCon, RJ45, Plug-in connector, Supply, IP65
